產品材質:接線端子采用優質紫銅制成,導電性良好,護套采用PC 94V-2.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至85度正常使用，耐電壓600V.
產品特點:紫銅鍍錫,防銹時間大大加長,無鋒利部位。
國際認證:歐盟RoHS環保認證。

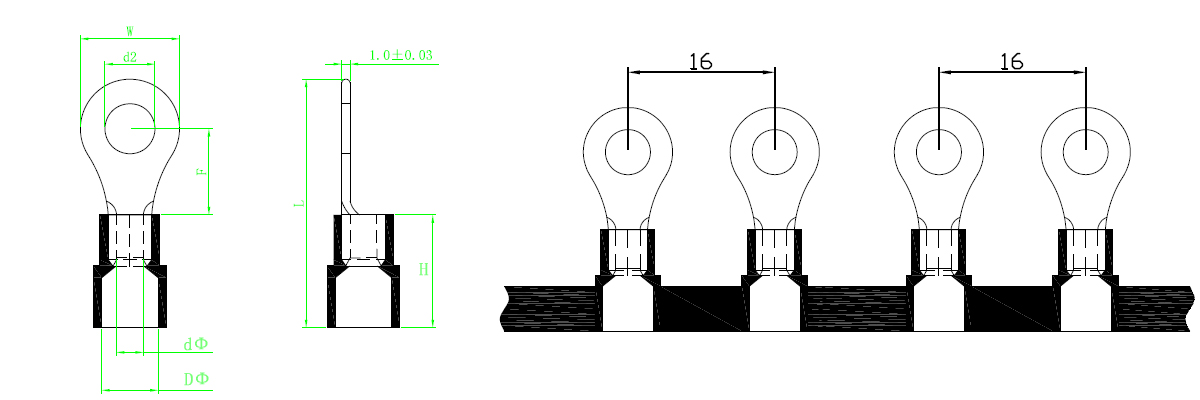

型號? Ttem?No. | 尺寸???DIMENSION | 顏色 Color | ||||||||
AWG/mm2 最大電流 ? ? ? ? ? 包裝 ? ? ? ? ? ?? | 螺栓規格?? d2 | W | F | L | H | DΦ | dΦ | |||
| Stud?Size | mm | mm | mm | mm | mm | mm | mm | |||
| RF1.25-3N連帶 | 22-16 0.5-1.5 19A 2000PCS/卷 | #4 | 3.2 | 5.7? | 5.0? | 18.5 | 10.5 | 4.0? | 1.7? | 紅???? Red |
| RFS1.25?-?3.5N連帶 | #6 | 3.7 | 5.7? | 5.0? | 18.5 | |||||
| RFM1.25-3.5N連帶 | #6 | 3.7 | 6.6? | 6.3? | 20 | |||||
| RFL1.25-3.5N連帶 | #6 | 3.7 | 8.0? | 7.0? | 21.5 | |||||
| RFS1.25-4N連帶 | #8 | 4.3 | 6.6? | 6.3? | 19.5 | |||||
| RFL1.25-4N連帶 | #8 | 4.3 | 8.0? | 7.0? | 21.5 | |||||
| RFS1.25-5N連帶 | #10 | 5.3 | 8.0? | 7.0? | 21.5 | |||||
| RFL1.25-5N連帶 | #10 | 5.3 | 9.?8? | 8.0? | 23 | |||||
| RFS1.25-6N連帶 | 1/4 | 6.4 | 9.?8? | 8.0? | 23.5 | |||||
| RFL1.25-6N連帶 | 1/4 | 6.4 | 11.6? | 11.0? | 27.5 | |||||
| RF1.25-8N連帶 | 5/16 | 8.4 | 11.6? | 11.0? | 27.5 | |||||
| RF1.25-10N連帶 | 3/8 | 10.5 | 13.6? | 14.0? | 31.5 | |||||
| RF2-3N連帶 | 16-14 1.5-2.5 27A 2000PCS/卷 | #4 | 3.2 | 6.6? | 4.?3 | 17.3? | 10.5 | 4.6? | 2.3? | 藍色??? Blue |
| RFS2-3.5N連帶 | #6 | 3.7 | 6.6? | 4.?3 | 17.3? | |||||
| RFM2-3.5N連帶 | #6 | 3.7 | 6.6? | 6.?5? | 19.5? | |||||
| RFL2-3.5N連帶 | #6 | 3.7 | 8.5? | 7.?7? | 21.8? | |||||
| RFS2-4N連帶 | #8 | 4.3 | 6.6? | 6.?5? | 19.5? | |||||
| RFL2-4N連帶 | #8 | 4.3 | 8.5? | 7.?7? | 21.8? | |||||
| RFS2-5N連帶 | #10 | 5.3 | 8.5? | 7.?7? | 21.8? | |||||
| RFL2-5N連帶 | #10 | 5.3 | 9.5? | 7.2? | 21.8? | |||||
| RFS2-6N連帶 | 1/4 | 6.4 | 9.5? | 7.?2? | 21.8? | |||||
| RFL2-6N連帶 | 1/4 | 6.4 | 12.0? | 11.0? | 26.8? | |||||
| RF2-8N連帶 | 5/16 | 8.4 | 12.0? | 11.0? | 26.8? | |||||
| RF2-10N連帶 | 3/8 | 10.5 | 14.6? | 14.0? | 31.5? | |||||
| RF3.5-4N連帶 | 14-22 2.5-4.0 37A 1600PCS/卷 | #8 | 4.3 | 8.0? | 7.?7 | 24.?5 | 14.2 | 6.5? | 3.0? | 黑色 Black |
| RFS3.5-5N連帶 | #10 | 5.3 | 8.0? | 7.?7 | 24.?5? | |||||
| RFL3.?5-5N連帶 | #10 | 5.3 | 12.0? | 8.?6? | 27.9? | |||||
| RF3.?5-6N連帶 | 1/4 | 6.4 | 12.0? | 8.6? | 27.9? | |||||
| RF3.?5-8N連帶 | 5/16 | 8.4 | 15.0? | 14.?0 | 34.0? | |||||
| RF3.5-10N連帶 | 3/8 | 10.5 | 15.0? | 14.?0 | 34.0? | |||||
| RF5.?5-3N連帶 | 12-10 4.0-6.0 48A 1500PCS/卷 | #4 | 3.2 | 7.2? | 5.9? | 22.7? | 14.2 | 7.0? | 3.4? | 黃色 yellow |
| RF5.?5-3.?5N連帶 | #6 | 3.7 | 7.2? | 5.9? | 22.7? | |||||
| RFS5.?5-4N連帶 | #8 | 4.3 | 7.2? | 5.9? | 22.7? | |||||
| RFL5.?5-4N連帶 | #8 | 4.3 | 9.5? | 8.?3? | 26.3? | |||||
| RF5.?5-5N連帶 | #10 | 5.5 | 9.5? | 8.?3 | 26.3? | |||||
| RF5.?5-6N連帶 | 1/4 | 6.4 | 12.0? | 11.0? | 30.0? | |||||
| RF5.?5-8N連帶 | 5/16 | 8.4 | 15.0? | 13.7? | 34.5? | |||||
| RF5.?5-10N連帶 | 3/8 | 10.5 | 15.0? | 13.7? | 34.5? | |||||
