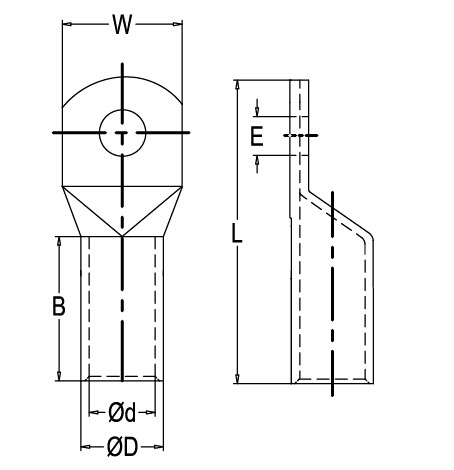

型 號 Item No. | E | Dφ | dφ | W | B | L |
DIN6-5 | 5.3 | 5.5 | 3.8 | 8.5 | 10 | 30.5 |
DIN6-6 | 6.4 | 5.5 | 3.8 | 8.5 | 10 | 31.5 |
DIN6-8 | 8.4 | 5.5 | 3.8 | 13 | 10 | 34 |
DIN10-5 | 5.3 | 6 | 4.5 | 9 | 10 | 34 |
DIN10-6 | 6.4 | 6 | 4.5 | 9 | 10 | 34.5 |
DIN10-8 | 8.4 | 6 | 4.5 | 13 | 10 | 37 |
DIN10-10 | 10.5 | 6 | 4.5 | 15 | 10 | 39 |
DIN16-6 | 6.4 | 8.5 | 5.5 | 13 | 20 | 43.5 |
DIN16-8 | 8.4 | 8.5 | 5.5 | 13 | 20 | 46 |
DIN16-10 | 10.5 | 8.5 | 5.5 | 17 | 20 | 48 |
DIN16-12 | 13 | 8.5 | 5.5 | 18 | 20 | 49 |
DIN25-6 | 6.4 | 10 | 7 | 14 | 20 | 45.5 |
DIN25-8 | 8.4 | 10 | 7 | 16 | 20 | 48 |
DIN25-10 | 10.5 | 10 | 7 | 17 | 20 | 50 |
DIN25-12 | 13 | 10 | 7 | 19 | 20 | 51 |
DIN35-6 | 6.4 | 12.5 | 8.2 | 17 | 20 | 49.5 |
DIN35-8 | 8.4 | 12.5 | 8.2 | 17 | 20 | 52 |
DIN35-10 | 10.5 | 12.5 | 8.2 | 19 | 20 | 54 |
DIN35-12 | 13 | 12.5 | 8.2 | 21 | 20 | 55 |
DIN35-14 | 15 | 12.5 | 8.2 | 21 | 20 | 56.5 |
DIN50-8 | 8.4 | 14.5 | 10 | 20 | 28 | 62 |
DIN50-10 | 10.5 | 14.5 | 10 | 22 | 28 | 64 |
DIN50-12 | 13 | 14.5 | 10 | 24 | 28 | 65 |
DIN50-14 | 15 | 14.5 | 10 | 24 | 28 | 66.5 |
DIN50-16 | 17 | 14.5 | 10 | 28 | 28 | 68 |
DIN70-8 | 8.4 | 16.5 | 11.5 | 24 | 28 | 65 |
DIN70-10 | 10.5 | 16.5 | 11.5 | 24 | 28 | 67 |
DIN70-12 | 13 | 16.5 | 11.5 | 24 | 28 | 68 |
DIN70-14 | 15 | 16.5 | 11.5 | 24 | 28 | 69.5 |
DIN70-16 | 17 | 16.5 | 11.5 | 30 | 28 | 71 |
DIN95-8 | 8.4 | 19 | 13.5 | 28 | 35 | 77 |
DIN95-10 | 10.5 | 19 | 13.5 | 28 | 35 | 77 |
DIN95-12 | 13 | 19 | 13.5 | 28 | 35 | 78 |
DIN95-14 | 15 | 19 | 13.5 | 28 | 35 | 79.5 |
DIN95-16 | 17 | 19 | 13.5 | 32 | 35 | 81 |
DIN120-10 | 10.5 | 21 | 15.5 | 32 | 35 | 85 |
DIN120-12 | 13 | 21 | 15.5 | 32 | 35 | 86 |
DIN120-14 | 15 | 21 | 15.5 | 32 | 35 | 88 |
DIN120-16 | 17 | 21 | 15.5 | 32 | 35 | 89 |
DIN120-20 | 21 | 21 | 15.5 | 38 | 35 | 91 |
DIN150-10 | 10.5 | 23.5 | 17 | 34 | 35 | 93 |
DIN150-12 | 13 | 23.5 | 17 | 34 | 35 | 94 |
DIN150-14 | 15 | 23.5 | 17 | 34 | 35 | 97 |
DIN150-16 | 17 | 23.5 | 17 | 34 | 35 | 97 |
DIN150-20 | 21 | 23.5 | 17 | 40 | 35 | 99 |
DIN185-10 | 10.5 | 25.5 | 19 | 37 | 40 | 97 |
DIN185-12 | 13 | 25.5 | 19 | 37 | 40 | 98 |
DIN185-14 | 15 | 25.5 | 19 | 37 | 40 | 101 |
DIN185-16 | 17 | 25.5 | 19 | 37 | 40 | 101 |
DIN185-20 | 21 | 25.5 | 19 | 40 | 40 | 103 |
DIN240-12 | 13 | 29 | 21.5 | 42 | 40 | 108 |
DIN240-14 | 15 | 29 | 21.5 | 42 | 40 | 111 |
DIN240-16 | 17 | 29 | 21.5 | 42 | 40 | 111 |
DIN240-20 | 21 | 29 | 21.5 | 45 | 40 | 113 |
DIN300-12 | 13 | 32 | 24.5 | 46 | 50 | 119 |
DIN300-14 | 15 | 32 | 24.5 | 46 | 50 | 119 |
DIN300-16 | 17 | 32 | 24.5 | 46 | 50 | 119 |
DIN300-20 | 21 | 32 | 24.5 | 46 | 50 | 122 |
DIN400-14 | 15 | 38.5 | 27.5 | 55 | 70 | 140 |
DIN400-16 | 17 | 38.5 | 27.5 | 55 | 70 | 140 |
DIN400-20 | 21 | 38.5 | 27.5 | 55 | 70 | 140 |
DIN500-16 | 17 | 42 | 31 | 60 | 70 | 150 |
DIN500-20 | 21 | 42 | 31 | 60 | 70 | 150 |
DIN625-16 | 17 | 44 | 34.5 | 64 | 80 | 160 |
DIN625-20 | 21 | 44 | 34.5 | 64 | 80 | 160 |
DIN800-16 | 17 | 52 | 40 | 75 | 100 | 195 |
DIN800-20 | 21 | 52 | 40 | 75 | 100 | 195 |
DIN1000-1 | 17 | 58 | 44 | 85 | 100 | 195 |
DIN1000-2 | 21 | 58 | 44 | 85 | 100 | 195 |
?
