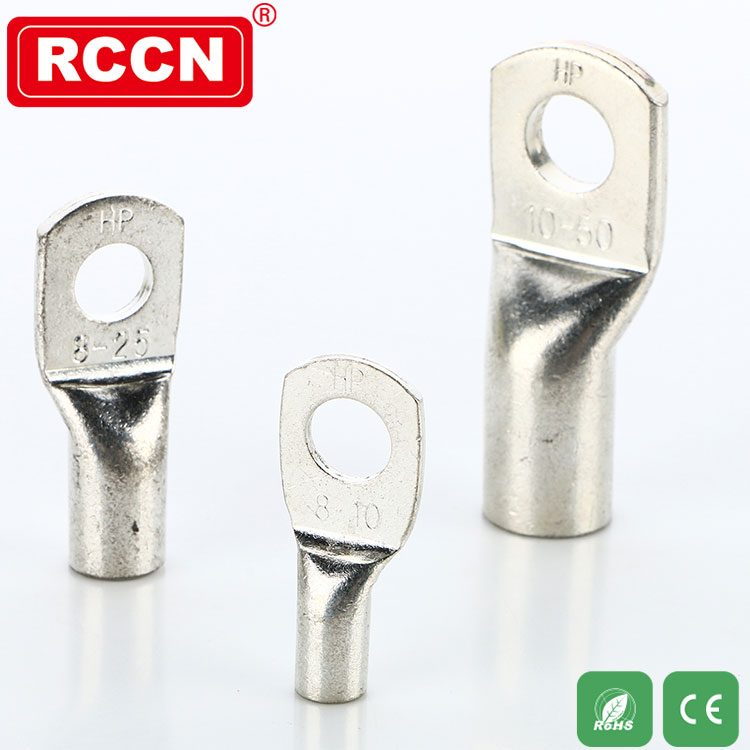

冷壓端子,銅管端子,線鼻子

產品材質:接線端子采用優質紫銅制成,導電性良好
產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套日成端子鉗即可壓緊電線,接線美觀,
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至150度正常使用.
使用方法:將電線剝開外皮,穿入端子后銅管

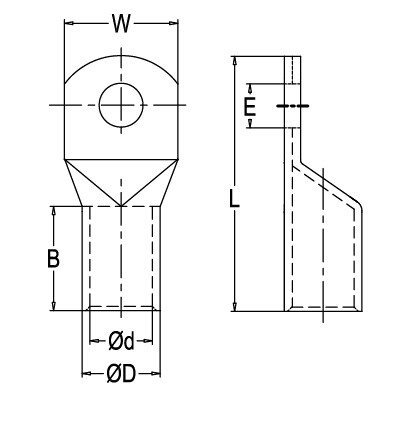

型號 Item No.	E	Dφ	dφ	W	B	L
HP1.5-3	3.2	3.3	1.8	6.5	6	15.5
HP1.5-4	4.3	3.3	1.8	6.5	6	17.5
HP1.5-5	5.3	3.3	1.8	9	6	19
HP1.5-6	6.4	3.3	1.8	9	6	22.5
HP2.5-4	4.3	4.2	2.2	7.5	6	17.1
HP2.5-5	5.3	4.2	2.2	8.5	6	19.2
HP2.5-6	6.4	4.2	2.2	9.5	6	22.8
HP2.5-8	8.4	4.2	2.2	13	6	28
HP4-4	4.3	5	3	8.5	8	21.8
HP4-5	5.3	5	3	9	8	22.2
HP4-6	6.4	5	3	10	8	22.2
HP6-5	5.3	6.5	3.5	10	11	28.2
HP6-6	6.4	6.5	3.5	12	11	29.1
HP6-8	8.4	6.5	3.5	15	11	31.8
HP6-10	10.5	6.5	3.5	17	11	37
HP10-5	5.3	7	4.5	12	11	28.1
HP10-6	6.4	7	4.5	12	11	29
HP10-8	8.4	7	4.5	14.5	10	33.3
HP10-10	10.5	7	4.5	16	11	36.9
HP16-5	5.3	8.5	5.5	12	14	33.1
HP16-6	6.4	8.5	5.5	12.5	14	33.5
HP16-8	8.4	8.5	5.5	13.8	14	38
HP16-10	10.5	8.5	5.5	17	14	42
HP16-12	13.2	8.5	5.5	20	14	44.5
HP25-6	6.4	10	7	14	15	34.6
HP25-8	8.4	10	7	16	15	39
HP25-10	10.5	10	7	18	15	44.5
HP25-12	13.2	10	7	20	15	47
HP35-6	6.4	12	8.5	16.7	16	38
HP35-8	8.4	12	8.5	17.5	17	43
HP35-10	10.5	12	8.5	18.5	16	46
HP35-12	13.2	12	8.5	21.3	16	50
HP50-8	8.4	14	10	21	19	47
HP50-10	10.5	14	10	21	19	51.2
HP50-12	13.2	14	10	21.5	19	52
HP70-8	8.4	16.5	12	23.2	21	52
HP70-10	10.5	16.5	12	23.2	21	52
HP70-12	13.2	16.5	12	23.2	21	55.7
HP95-8	8.4	18	13.5	25.6	25	59
HP95-10	10.5	18	13.5	25.6	25	59
HP95-12	13.2	18	13.5	25.6	25	61
HP120-10	10.5	19.5	15	28.2	27	68
HP120-12	13.2	19.5	15	28.2	27	68
HP120-16	17	19.5	15	30	27	74
HP150-10	10.5	21.2	16.5	30.6	30	71
HP150-12	13.2	21.2	16.5	30.6	30	71
HP150-16	17	21.2	16.5	30.6	30	77
HP185-10	10.5	24.2	19	35.1	32	79
HP185-12	13.2	24.2	19	35.1	32	79
HP185-16	17	24.2	19	35.1	32	83
HP240-12	13.2	26.2	21	37.7	36	89
HP240-16	17	26.2	21	37.7	36	89
HP240-20	21	26.2	21	37.7	36	95
HP300-12	13.2	30.2	24	44	44	110
HP300-16	17	30.2	24	44	44	110
HP300-20	21	30.2	24	44	44	110
HP400-16	17	33.7	27.5	49	50	119
HP400-20	21	33.7	27.5	49	50	119
