冷壓端子,銅管端子,美規銅管端子

產品材質:接線端子采用優質紫銅制成,導電性良好
產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套日成端子鉗即可壓緊電線,接線美觀,
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至150度正常使用.
使用方法:將電線剝開外皮,穿入端子后銅管

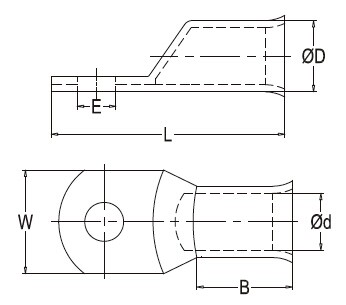

型號 Item No.	E	Dφ	dφ	W	B	L
AWG8-10(5.1)	5.1	7.1	4.8	11.8	13	33.3
AWG8-1/4(6.8)	6.8	7.1	4.8	11.8	13	33.3
AWG8-5/16(8.3)	8.3	7.1	4.8	11.8	13	33.3
AWG8-3/8(10.4)	10.4	7.1	4.8	14.5	13	33.3
AWG8-1/2(13.1)	13.1	7.1	4.8	17	13	33.3
AWG6-10(5.1)	5.1	8.1	5.9	11.8	15	37.3
AWG6-1/4(6.8)	6.8	8.1	5.9	13.7	15	37.3
AWG6-5/16(8.3)	8.3	8.1	5.9	13.7	15	37.3
AWG6-3/8(10.4)	10.4	8.1	5.9	13.7	15	37.3
AWG6-1/2(13.1)	13.1	8.1	5.9	17	14	37.3
AWG4-1/4(6.8)	6.8	9.5	7.3	13.8	15.5	38.9
AWG4-5/16(8.3)	8.3	9.5	7.3	13.8	15.5	38.9
AWG4-3/8(10.4)	10.4	9.5	7.3	14.5	15.5	38.9
AWG4-1/2(13.1)	13.1	9.5	7.3	17	15	38.9
AWG2-1/4(6.8)	6.8	11.1	8.5	16.5	16	41.1
AWG2-5/16(8.3)	8.3	11.1	8.5	16.5	16	41.1
AWG2-3/8(10.4)	10.4	11.1	8.5	16.5	16	41.1
AWG2-1/2(13.1)	13.1	11.1	8.5	17	15.3	41.1
AWG1-1/4(6.8)	6.8	11.7	9.1	16.4	16	43.6
AWG1-5/16(8.3)	8.3	11.7	9.1	16.4	16	43.6
AWG1-3/8(10.4)	10.4	11.7	9.1	17.1	16	43.6
AWG1-1/2(13.1)	13.1	11.7	9.1	19.1	16	43.6
AWG1/0-1/4(6.8)	6.8	13	10.4	18.4	19	46.8
AWG1/0-5/16(8.3)	8.3	13	10.4	18.4	19	46.8
AWG1/0-3/8(10.4)	10.4	13	10.4	18.4	19	46.8
AWG1/0-1/2(13.1)	13.1	13	10.4	21	19	46.8
AWG2/0-1/4(6.8)	6.8	14.2	11.7	21	22	52.4
AWG2/0-5/16(8.3)	8.3	14.2	11.7	21	22	52.4
AWG2/0-3/8(10.4)	10.4	14.2	11.7	21	22	52.4
AWG2/0-1/2(13.1)	13.1	14.2	11.7	21	21	52.4
AWG3/0-5/16(8.3)	8.3	15.7	13	23.1	22.5	55.9
AWG3/0-3/8(10.4)	10.4	15.7	13	23.1	22.5	55.9
AWG3/0-1/2(13.1)	13.1	15.7	13	23.1	22.5	55.9
AWG4/0-5/16(8.3)	8.3	17.2	14.2	25.8	24	60.5
AWG4/0-3/8(10.4)	10.4	17.2	14.2	25.8	24	60.5
AWG4/0-1/2(13.1)	13.1	17.2	14.2	25.8	24	60.5
