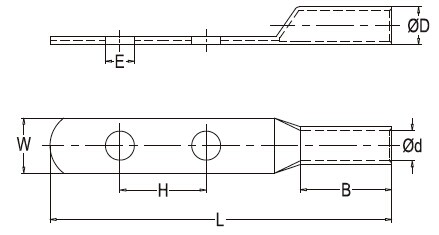

型 號 Item No. | E | Dφ | dφ | W | B | L | H |
CL14-6-2D | 6.4 | 8.8 | 5.8 | 13 | 28.5 | 117.5 | 45 |
CL22-8-2D | 8.4 | 11.3 | 7.7 | 16 | 28.5 | 119.2 | 45 |
CL38-10-2D | 10.5 | 12.4 | 9.8 | 18.3 | 31.7 | 120 | 45 |
CL38-12-2D | 13 | 12.4 | 9.8 | 18.3 | 31.7 | 120 | 45 |
CL60-10-2D | 10.5 | 14 | 11 | 20.5 | 40 | 130 | 45 |
CL60-12-2D | 13 | 14 | 11 | 20.5 | 40 | 130 | 45 |
CL70-10-2D | 10.5 | 15 | 12 | 21.4 | 40 | 130 | 45 |
CL70-12-2D | 13 | 15 | 12 | 21.4 | 40 | 130 | 45 |
CL80-12-2D | 13 | 16 | 13 | 23.2 | 40 | 130 | 45 |
CL100-12-2D | 13 | 18 | 14 | 26 | 42 | 132 | 45 |
CL125-12-2D | 13 | 20 | 16 | 29 | 42 | 135 | 45 |
CL150-12-2D | 13 | 22 | 17 | 31 | 50 | 150 | 45 |
CL180-12-2D | 13 | 23 | 18.2 | 33 | 50 | 150 | 45 |
CL200-12-2D | 13 | 26 | 20 | 37 | 52.5 | 150 | 45 |
CL250-12-2D | 13 | 28 | 22 | 40 | 50 | 150 | 45 |
CL325-12-2D | 13 | 32 | 25 | 46 | 68 | 180 | 45 |
CL400-12-2D | 13 | 37 | 30 | 54 | 60 | 180 | 45 |
CL500-12-2D | 13 | 40 | 31 | 57.5 | 60 | 180 | 45 |
B-CL14-6-2D | 6.4 | 8.3 | 5.8 | 13 | 28.5 | 117.5 | 45 |
B-CL22-8-2D | 8.4 | 10.7 | 7.7 | 16 | 28.5 | 119.2 | 45 |
B-CL38-10-2D | 10.5 | 11.9 | 9.8 | 17.5 | 31.7 | 120 | 45 |
B-CL38-12-2D | 13 | 11.9 | 9.8 | 17.5 | 31.7 | 120 | 45 |
B-CL60-10-2D | 10.5 | 13.5 | 11 | 19.5 | 40 | 130 | 45 |
B-CL60-12-2D | 13 | 13.5 | 11 | 19.5 | 40 | 130 | 45 |
B-CL70-10-2D | 10.5 | 14.5 | 12 | 21.4 | 40 | 130 | 45 |
B-CL70-12-2D | 13 | 14.5 | 12 | 21.4 | 40 | 130 | 45 |
B-CL80-12-2D | 13 | 15.5 | 13 | 23.2 | 40 | 130 | 45 |
B-CL100-12-2D | 13 | 17.3 | 14 | 26 | 42 | 132 | 45 |
B-CL125-12-2D | 13 | 19.3 | 16 | 28 | 42 | 135 | 45 |
B-CL150-12-2D | 13 | 21.1 | 17 | 31 | 50 | 150 | 45 |
B-CL180-12-2D | 13 | 22.1 | 18.2 | 33 | 50 | 150 | 45 |
B-CL200-12-2D | 13 | 24.9 | 20 | 36 | 50 | 150 | 45 |
B-CL250-12-2D | 13 | 26.9 | 22 | 39 | 50 | 150 | 45 |
B-CL325-12-2D | 13 | 30.7 | 25 | 45 | 68 | 180 | 45 |
B-CL400-12-2D | 13 | 35.7 | 30 | 54 | 60 | 180 | 45 |
B-CL500-12-2D | 13 | 38.4 | 31 | 56 | 60 | 180 | 45 |
