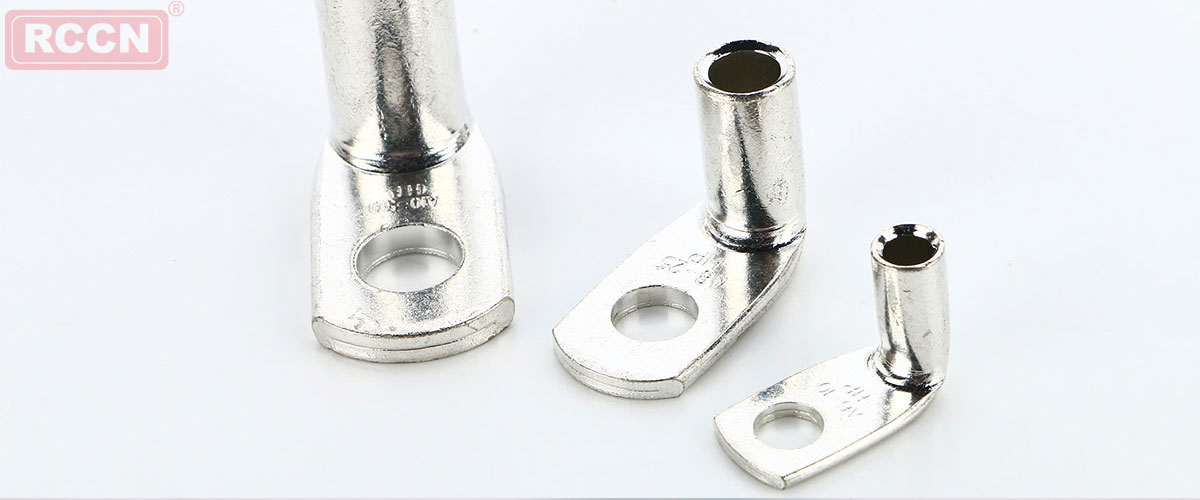

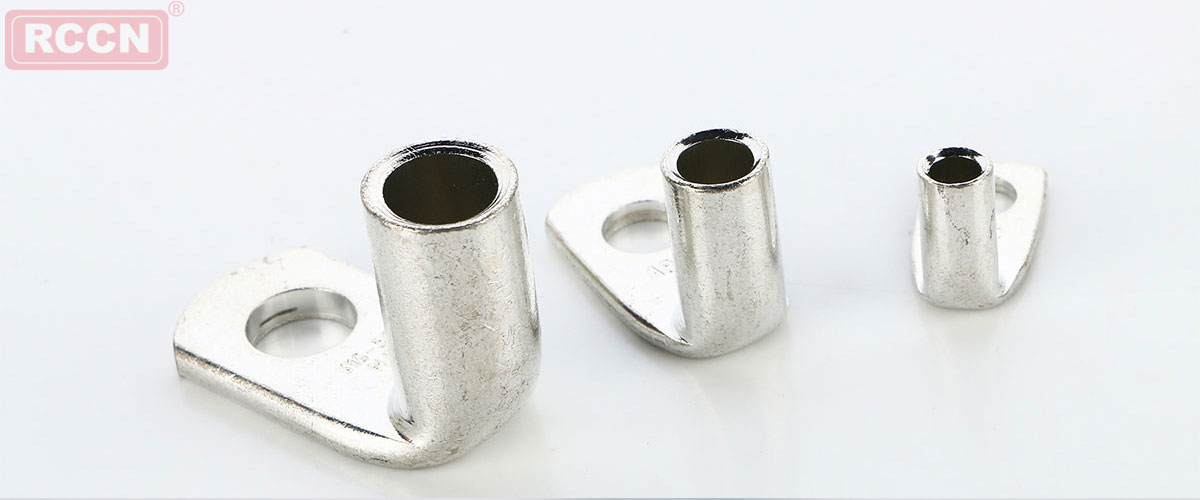

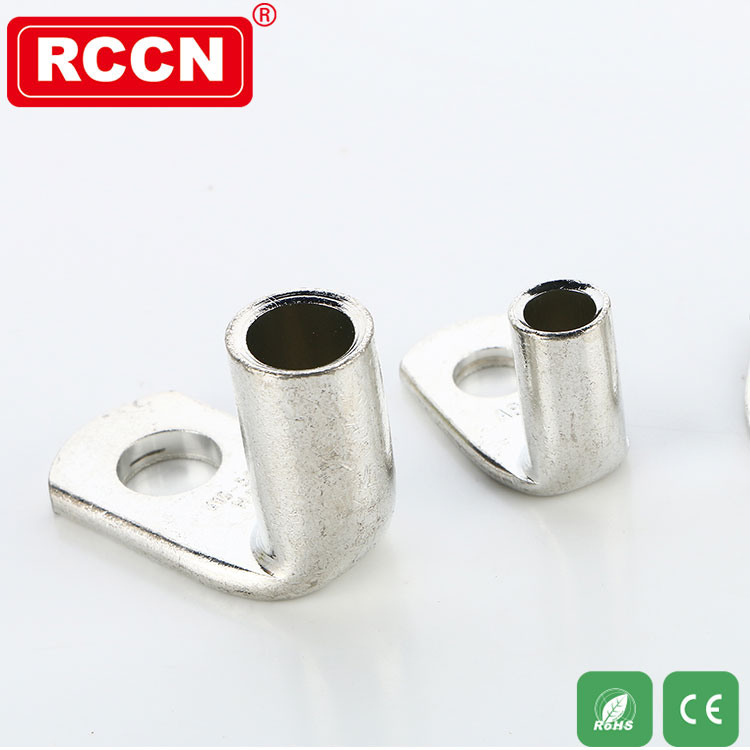

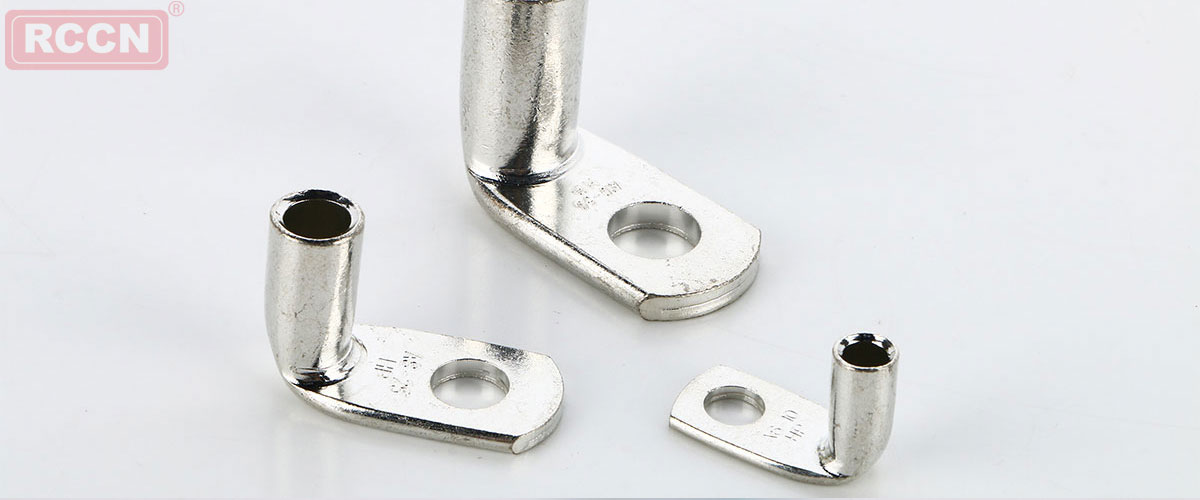

冷壓端子,直角銅管端子,直角線鼻子

產品材質:接線端子采用優質紫銅制成,導電性良好
產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套日成端子鉗即可壓緊電線,接線美觀,
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至150度正常使用.
使用方法:將電線剝開外皮,穿入端子后銅管

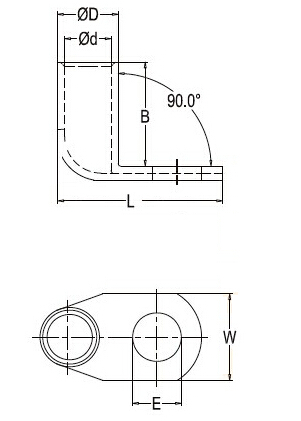

型號 Item No.	E	Dφ	dφ	W	B	L
HUP90-6/5	5.3	6.5	3.5	10	14	22.5
HUP90-6/6	6.4	6.5	3.5	12	14	24
HUP90-6/8	8.5	6.5	3.5	15	14	27.5
HUP90-6/10	10.5	6.5	3.5	16	14	29.5
HUP90-10/5	5.3	7	4.5	12	16	23
HUP90-10/6	6.4	7	4.5	12	16	24
HUP90-10/8	8.5	7	4.5	15	16	28
HUP90-10/10	10.5	7	4.5	18	16	29.5
HUP90-16/5	5.3	8.5	5.5	12	20	22.5
HUP90-16/6	6.4	8.5	5.5	14	20	24
HUP90-16/8	8.5	8.5	5.5	15	20	28
HUP90-16/10	10.5	8.5	5.5	18	20	31
HUP90-16/12	13	8.5	5.5	19	20	32
HUP90-25/6	6.4	10	6.9	15	21	27.5
HUP90-25/8	8.4	10	6.9	16	21	32.5
HUP90-25/10	10.5	10	6.9	18	21	32.5
HUP90-25/12	13	10	6.9	19	21	34
HUP90-35/6	6.4	12	8.5	17	24	28.5
HUP90-35/8	8.5	12	8.5	17	24	34
HUP90-35/10	10.5	12	8.5	20	24	34
HUP90-35/12	13	12	8.5	22	24	40.5
HUP90-50/6	6.4	14	10	20	28.5	37
HUP90-50/8	8.4	14	10	20	28.5	40.5
HUP90-50/10	10.5	14	10	20	28.5	40.5
HUP90-50/12	13	14	10	23	28.5	42.5
HUP90-50/16	17	14	10.0.	28	28.5	50.5
HUP90-70/8	8.5	16.5	12	24	31	43
HUP90-7010	10.5	16.5	12	24	31	43
HUP90-70/12	13	16.5	12	24	31	44.5
HUP90-70/16	17	16.5	12	28	31	53
HUP90-70/20	21	16.5	12	30	31	59
HUP90-95/8	8.5	18	13.5	26	35	44.5
HUP90-95/10	10.5	18	13.5	26	35	44.5
HUP90-95/12	13	18	13.5	26	35	46.5
HUP90-95/16	17	18	13.5	28	35	52
HUP90-95/20	21	18	13.5	30.5	35	59
HUP90-120/10	10.5	19.5	15	29	35.5	49
HUP90-120/12	13	19.5	15	29	35.5	49
HUP90-120/16	17	19.5	15	29	35.5	55
HUP90-120/20	21	19.5	15	30.5	35.5	61
HUP90-150/10	10.5	21	16.5	31	40	48
HUP90-150/12	13	21	16.5	31	40	51
HUP90-150/16	17	21	16.5	31	40	56
HUP90-150/20	21	21	16.5	34	40	61.5
HUP90-185/12	13	24	19	35	46	58.5
HUP90-185/16	17	24	19	35	46	58.5
HUP90-185/20	21	24	19	35	46	65
HUP90-240/12	13	26	21	40	50	54
HUP90-240/16	17	26	21	40	50	60
HUP90-240/20	21	26	21	40	50	67.8
HUP90-300/12	13	29.5	23.5	43	59	74.5
HUP90-300/16	17	29.5	23.5	43	59	64
HUP90-300/20	21	29.5	23.5	43	59	70.5
HUP90-400/12	13	34	27	49	62	79
HUP90-400/16	17	34	27	49	62	68.5
HUP90-400/20	21	34	27	49	62	75
