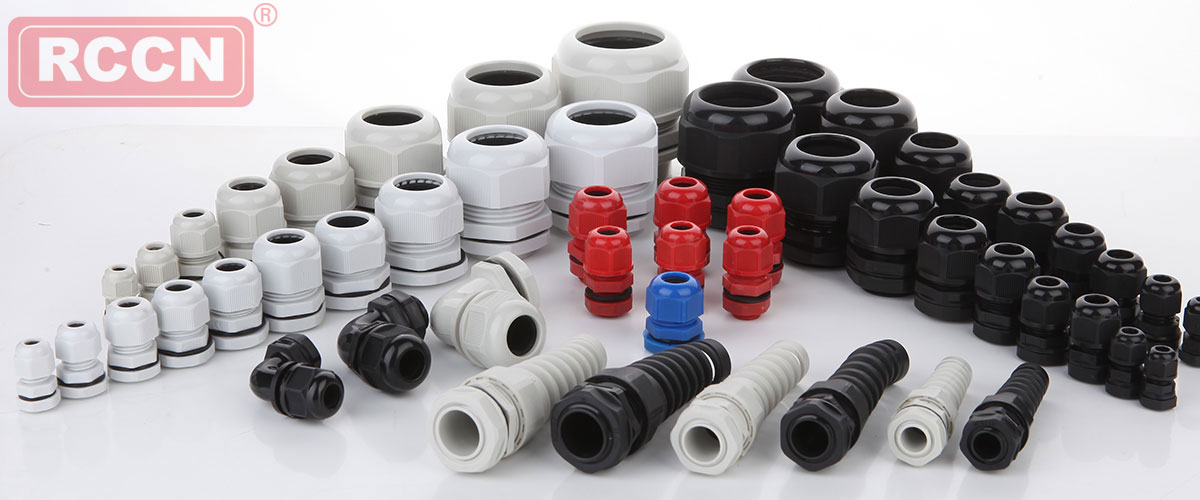

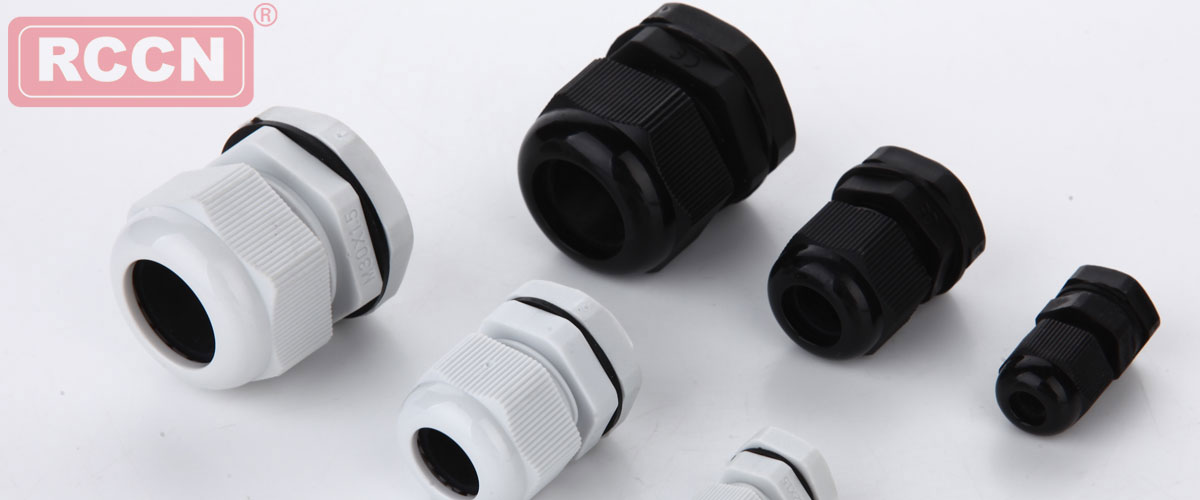

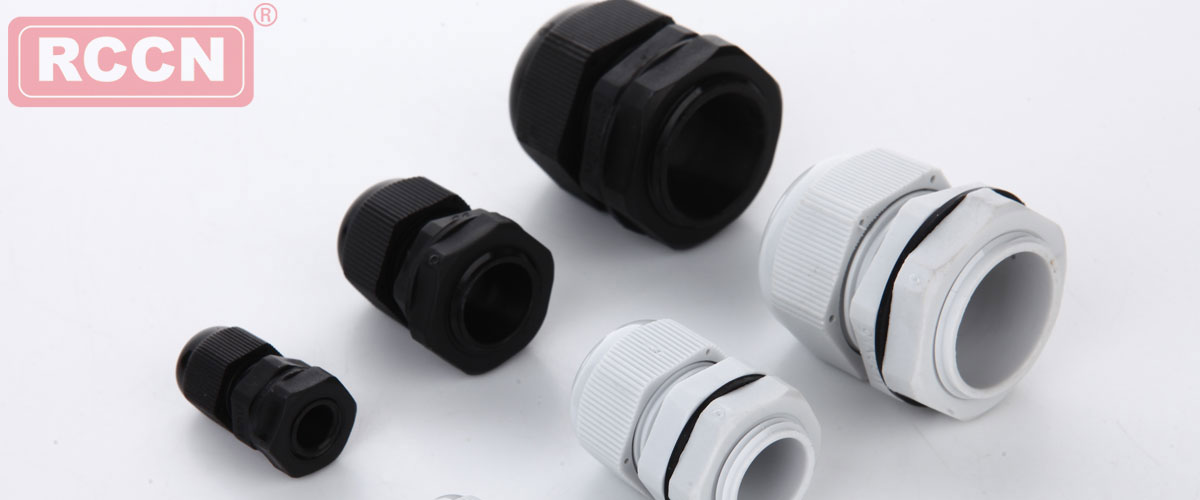

特點:美制螺紋NPT,電纜防水接頭

螺牙規格:美制螺牙(NPT),英制螺牙（G）

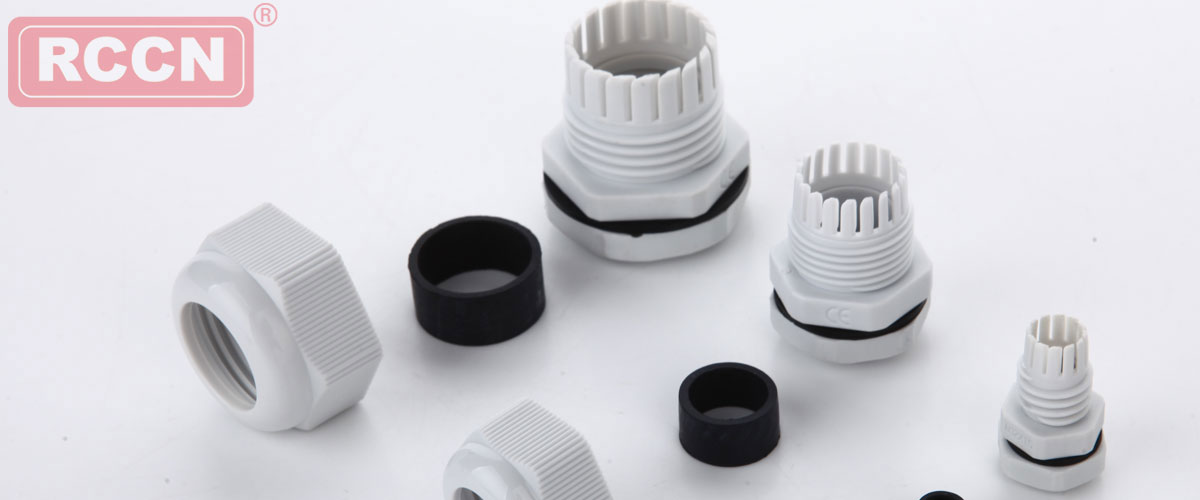

產品材質:A.C.D.F部位均采用環保尼龍66(NYLON66)原料制成.B耐老化硅橡膠制成.E采用耐油丁腈橡膠制成。

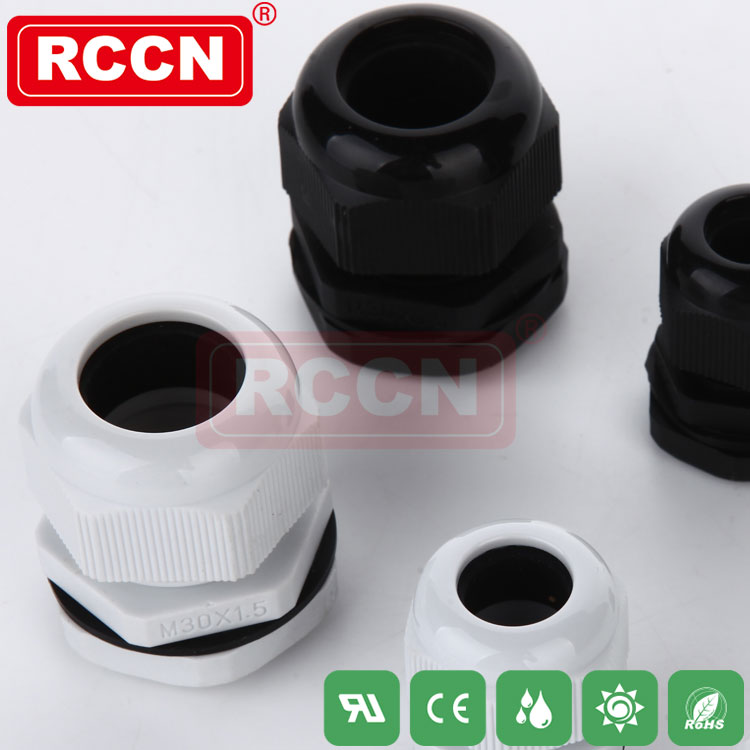

產品認證:歐洲CE, 歐洲環保SGS,REACH。
防火等級:UL94V-2。
防護等級:在規定的卡口范圍內,并使用防水墊片及夾緊圈旋緊迫緊頭,達到IP68。
顏色種類:灰白色、黑色。

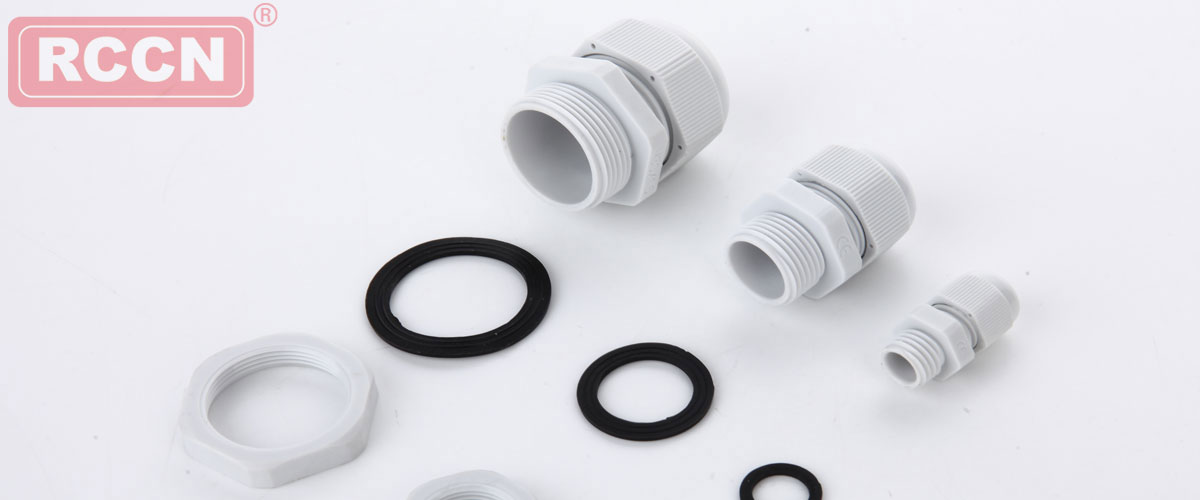

使用方法:先將本體穿于機板,再以螺母扭緊固定,線纜穿過迫緊頭,扭緊迫緊頭將其固定。
工作溫度:靜態-40°C至85°C。全套配硅膠橡工作溫度:-50°C至100°C
產品特性:夾緊爪與夾緊圈一體成型之設計,配合迫緊頭裝配省時便利,夾緊電纜范圍大, 抗拉力強,可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及一般溶劑。應用于電纜出線端的固定保護及密封防塵水。
更多選擇:加長型螺紋適用于厚機板,另備多種范圍夾緊圈,戶外用時橡膠需通知更換為耐老化硅橡膠材質-NPTH/GH型。型號例：NPT1/2WH

型號Item No.			螺牙規格 Thread	適用電纜外徑 CableRange Φ	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1	接合長度 Thread Length L2	板手 Spanner size A&F
灰白色 White		黑色 Black	螺牙規格 Thread	適用電纜外徑 CableRange Φ	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1	接合長度 Thread Length L2	板手 Spanner size A&F
標準型 standard	NPT 1/4W	NPT 1/4B	NPT 1/4"	3-6.5	13.616	8	22	19/16
	NPT 3/8W	NPT 3/8B	NPT 3/8"	4-8	17.055	15	26	24/19
	NPT 1/2W	NPT 1/2B	NPT 1/2"	6-12	21.223	13	30	27/24
	NPT 1/2DW	NPT 1/2DB	NPT 1/2"	10-14	21.223	13	30	27/27
	NPT 3/4W	NPT 3/4B	NPT 3/4"	13-18	26.568	15	37	32/33
	NPT 1W	NPT 1B	NPT 1 "	18-25	33.227	16	40	40/41
	NPT1-1/4W	NPT1-1/4B	NPT 11/4"	18-25	41.984	18	48	50/46
	NPT1-1/2W	NPT1-1/2B	NPT 11/2"	22-32	48.053	15	49	60/53
	NPT 2W	NPT 2B	NPT 2"	37-44	60.091	20	50	69/65
	G1/4W	G1/4B	G 1/4"	3-6.5	13.2	8	22	19/16
	G3/8W	G3/8B	G 3/8"	4-8	16.7	15	26	24/19
	G1/2W	G1/2B	G 1/2"	6-12	20.9	13	30	27/24
	G1/2DW	G1/2DB	G 1/2"	10-14	20.9	13	30	27/27
	G3/4W	G3/4B	G 3/4"	13-18	26.4	15	37	32/33
	G1W	G1B	G 1"	18-25	33.2	16	40	40/41
	G1-1/4W	G1-1/4B	G 11/4"	22-32	41.9	18	48	50/46
	G1-1/2W	G1-1/2B	G 11/2"	32-38	47.8	15	49	60/53
	G2W	G2B	G 2"	37-44	59.6	15	50	69/65
加厚型 thickening	NPT 1/4SW	NPT 1/4SB	NPT 1/4"	2-5	13.616	8	22	19/16
	NPT 3/8SW	NPT 3/8SB	NPT 3/8"	2-6	17.055	15	26	24/19
	NPT 1/2SW	NPT 1/2SB	NPT 1/2"	5-9	21.223	13	30	27/24
	NPT 1/2SW(7-12)	NPT 1/2SB(7-12)	NPT 1/2"	7-12	21.223	13	30	27/27
	NPT 3/4SW	NPT 3/4SB	NPT 3/4"	9-16	26.568	15	37	32/33
	NPT 1SW	NPT 1SB	NPT 1 "	13-20	33.227	16	40	40/41
	NPT1-1/4SW	NPT1-1/4SB	NPT 11/4"	13-20	41.984	18	48	50/46
	NPT1-1/2SW	NPT1-1/2SB	NPT 11/2"	20-26	48.053	15	49	60/53
	G1/4SW	G1/4SB	G 1/4"	2-5	13.2	8	22	19/16
	G3/8SW	G3/8SB	G 3/8"	2-6	16.7	15	26	24/19
	G1/2SW	G1/2SB	G 1/2"	5-9	20.9	13	30	27/24
	G1/2SW(7-12)	G1/2SB(7-12)	G1/2"	7-12	20.9	13	30	27/27
	G3/4SW	G3/4SB	G 3/4"	9-16	26.4	15	37	32/33
	G1SW	G1SB	G 1"	13-20	33.2	16	40	40/41
	G1-1/4SW	G1-1/4SB	G 11/4"	13-20	41.9	18	48	50/46
	G1-1/2SW	G1-1/2SB	G 11/2"	20-26	47.8	15	49	60/53
	G2SW	G2SB	G 2"	29-35	59.6	15	50	69/65
