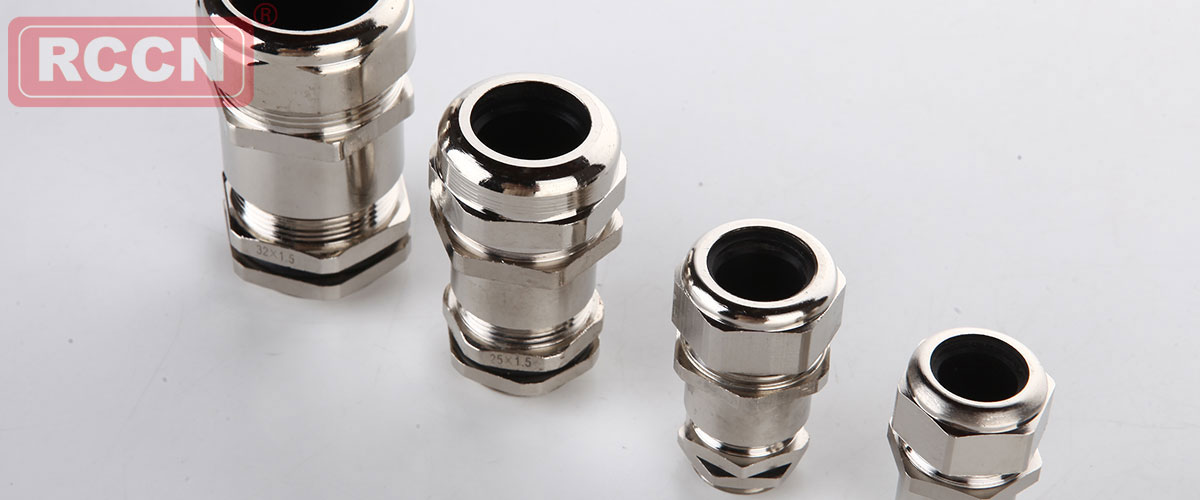

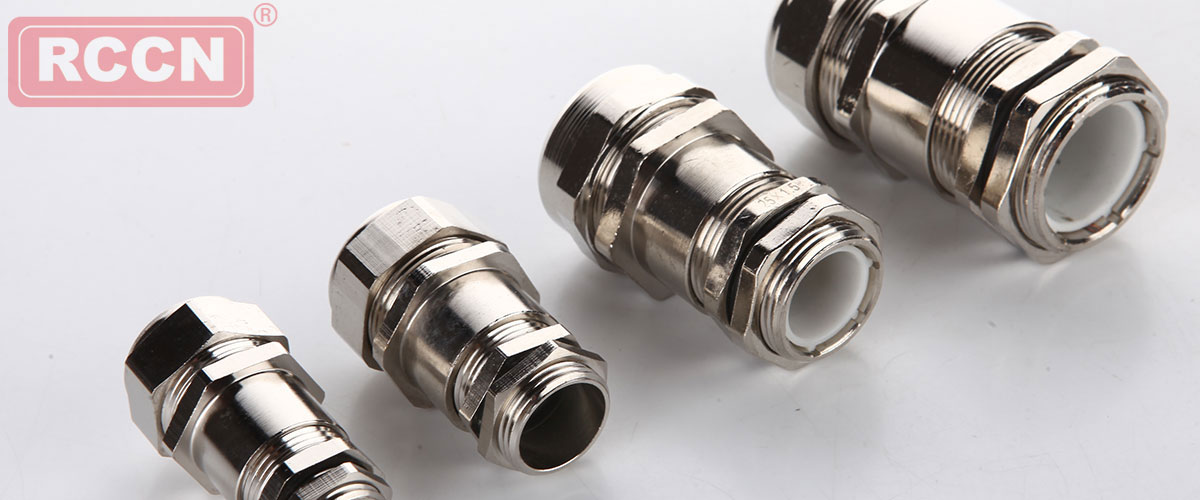

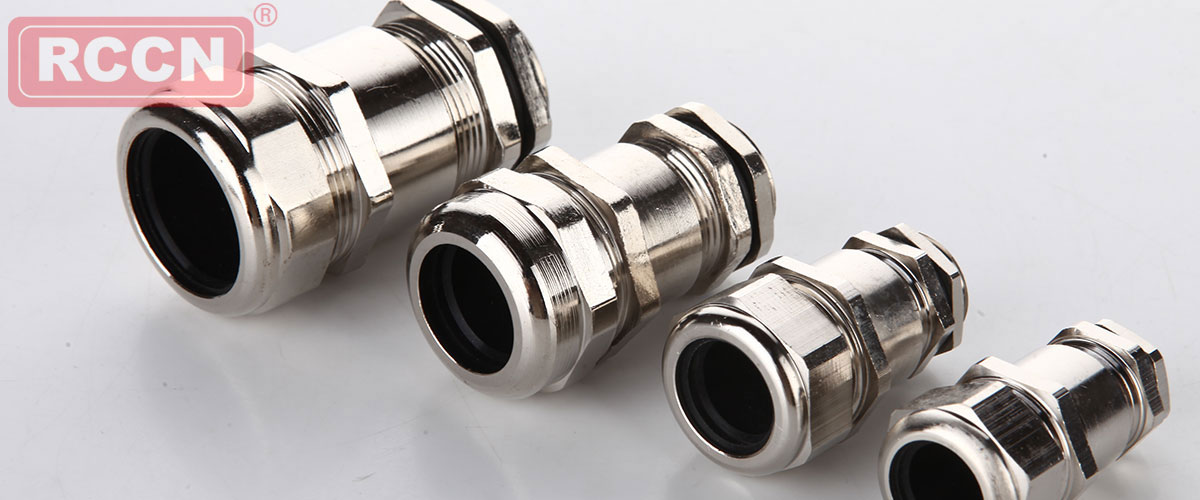

金屬鎖緊型軟管防水接頭 BGX

金屬接頭,電纜防水接頭

螺牙規格:公制螺牙(Metric).

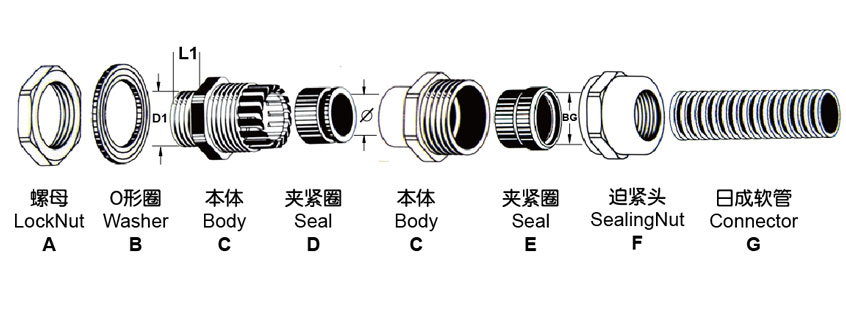

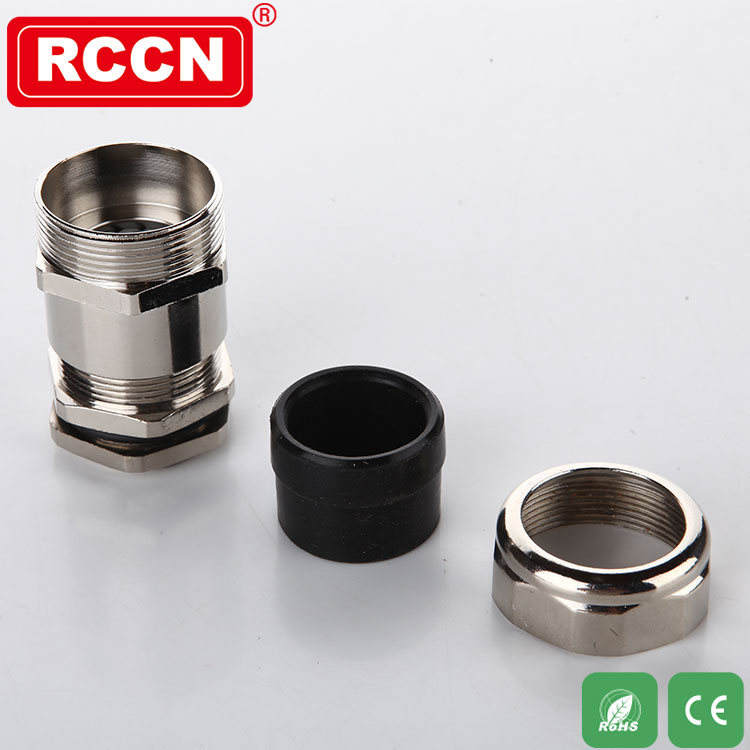

產品材質:A.C.F部位均采用鋅合金鍍鎳制成/黃銅鍍鎳.D采用耐油丁腈橡膠(NBR)制成,B.E采用硅橡膠制成。
產品認證:歐洲CE,歐洲環保ROHS。
防護等級:在規定的卡口范圍內,并使用O形密封圈旋緊迫緊頭,達到IP68。
產品特性:配套鎖緊式電纜接頭,防電線松動,內鎖扣和本體特殊設計,裝卸只需撥插無需工具,大大縮短了安裝時間夾緊電纜范圍大,抗拉力特強,可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及一般溶劑.
說明:本系列應環境要求新開發設計,代替原日成老款BGL系列。
本品適合對環境要求較高使用：室外水下燈具,地鐵機車,風能太陽能,核電,輪船,電機,高端設備等項目安裝。
配合日成尼龍管使用,戶外用時配合日成SCM含膠管保護更理想。

金屬接頭電纜防水接頭金屬鎖緊型軟管防水接頭

產品規格

型號 Item No .	螺牙規格 Thread	適應電纜 Cable Range Φ	對應日成軟管型號 Suit to RCCN? conduit item no BG	對應日成軟管型號 Suit to RCCN? conduit item no BG	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1
公制螺牙/Metric thread BGX-M
BGX-M12(BG07)	M12*1.5	3-6	BG-07	10.0	12	6
BGX-M12(BG10)	M12*1.5	3-6	BG-10	13.0	12	6
BGX-M16(BG07)	M16*1.5	4-8	BG-07	10.0	16	7
BGX-M16(BG10)	M16*1.5	4-8	BG-10	13.0	16	7
BGX-M16(BG12)	M18*1.5	4-8	BG-12	15.8	16	7
BGX-M18(BG12)	M18*1.5	6-10	BG-12	15.8	18	8
BGX-M18(BG15)	M18*1.5	6-10	BG-15	18.5	18	8
BGX-M20(BG12)	M20*1.5	8-12	BG-12	15.8	20	8
BGX-M20(BG15)	M20*1.5	8-12	BG-15	18.5	20	8
BGX-M20(BG17)	M20*1.5	8-12	BG-17	21.2	20	8
BGX-M22(BG17)	M22*1.5	10-14	BG-17	21.2	22	9
BGX-M24(BG17)	M24*1.5	10-14	BG-17	21.2	24	10
BGX-M25(BG17)	M25*1.5	10-14	BG-17	21.2	25	10
BGX-M25(BG23)	M25*1.5	10-14	BG-23	28.5	25	10
BGX-M27(BG23)	M27*1.5	13-18	BG-23	28.5	27	11
BGX-M30(BG23)	M30*1.5	13-18	BG-23	28.5	30	11
BGX-M30(BG29)	M30*1.5	13-18	BG-29	34.5	30	11
BGX-M32(BG23)	M32*1.5	15-22	BG-23	28.5	32	11
BGX-M32(BG29)	M32*1.5	15-22	BG-29	34.5	32	11
BGX-M33(BG23)	M33*1.5	15-22	BG-23	28.5	33	11
BGX-M33(BG29)	M33*1.5	15-22	BG-29	34.5	33	11
BGX-M36(BG29)	M36*1.5	18-25	BG-29	34.5	36	11
BGX-M40(BG29)	M40*1.5	18-25	BG-29	34.5	40	12
BGX-M40(BG36)	M40*1.5	18-25	BG-36	42.5	40	12
BGX-M50(BG36)	M50*1.5	26-32	BG-36	42.5	50	13
BGX-M50(BG48)	M50*1.5	26-32	BG-48	54.5	50	13
BGX-M63(BG48)	M63*1.5	37-44	BG-48	54.5	63	14

型號 Item No .	螺紋規格 Thread	適用電纜 Cable Range Φ	對應日成軟管型號 Suit to RCCN? conduit item no BG	對應日成軟管型號 Suit to RCCN? conduit item no BG	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1
德制螺牙/Germany thread BGX-P
BGX-PG7(BG07)	PG-7	3-6	BG-07	10.0	12.5	6
BGX-PG9(BG10)	PG-9	4-8	BG-10	10.0	15.2	7
BGX-PG11(BG12)	PG-11	6-10	BG-12	15.8	18.6	8
BGX-PG13.5(BG12)	PG-13.5	8-12	BG-12	15.8	20.4	8
BGX-PG13.5(BG15)	PG-13.5	8-12	BG-15	18.5	20.4	8
BGX-PG13.5(BG17)	PG-13.5	8-12	BG-17	21.2	20.4	8
BGX-PG16(BG17)	PG-16	10-14	BG-17	21.2	22.5	9
BGX-PG21(BG23)	PG-21	13-18	BG-23	28.5	28.3	11
BGX-PG29(BG29)	PG-29	18-25	BG-29	34.5	37.0	11
BGX-PG36(BG36)	PG-36	26-32	BG-36	42.5	47.0	13
BGX-PG48(BG48)	PG-48	37-44	BG-48	54.5	59.3	14
管螺牙/Tube thread BGX-G
BGX-G1/4(BG07)	G1/4''	3-6	BG-07	10.0	13.2	6
BGX-G3/8(BG10)	G3/8''	4-8	BG-10	13.0	16.5	7
BGX-G1/2(BG12)	G1/2''	8-12	BG-12	15.8	21.3	8
BGX-G1/2(BG15)	G1/2''	8-12	BG-15	18.5	21.3	8
BGX-G1/2(BG17)	G1/2''	8-12	BG-17	21.2	21.3	8
BGX-G3/4(BG17)	G3/4''	13-18	BG-17	21.2	26.6	11
BGX-G1(BG23)	G1''	15-22	BG-23	28.5	33.4	11
BGX-G1 1/4(BG29)	G1 1/4''	22-28	BG-29	34.5	42.1	12
BGX-G1 1/2(BG36)	G1 1/2''	26-32	BG-36	42.5	47.8	13
BGX-G2(BG48)	G2''	37-44	BG-48	54.5	59.6	14
美制螺牙/America thread BGX-N
BGX-NPT3/8(BG10)	NPT3/8''	4-8	BG-10	10.0	16.5	7
BGX-NPT1/2(BG12)	NPT1/2''	8-12	BG-12	15.8	21.3	8
BGX-NPT1/2(BG15)	NPT1/2''	8-12	BG-15	18.5	21.3	8
BGX-NPT1/2(BG17)	NPT1/2''	8-12	BG-17	21.2	21.3	8
BGX-NPT3/4(BG17)	NPT3/4''	13-18	BG-17	21.2	26.6	11
BGX-NPT3/4(BG23)	NPT3/4''	13-18	BG-23	28.5	26.6	11
BGX-NPT1(BG29)	NPT1''	15-22	BG-29	34.5	33.4	11
