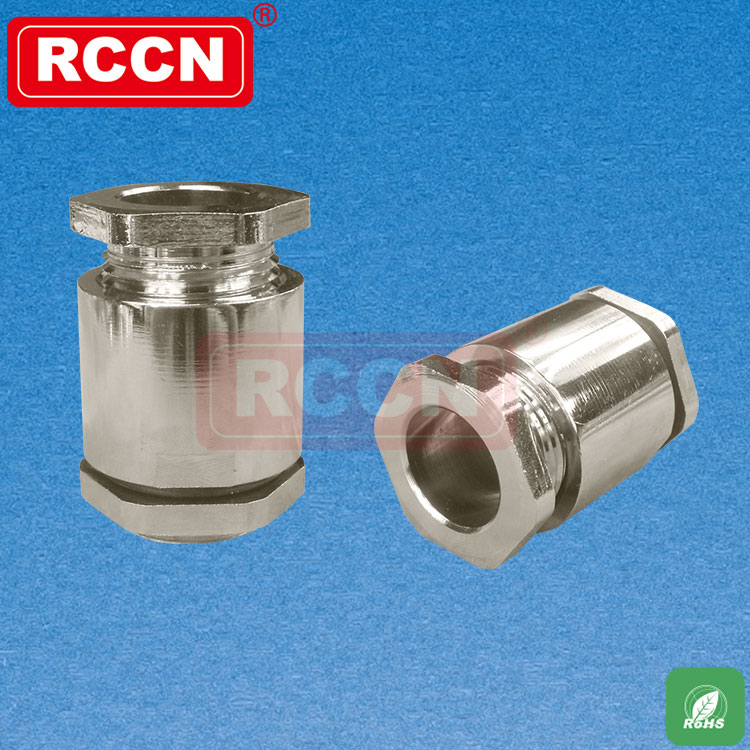

金屬接頭,金屬格蘭頭

螺牙規格:GB/T3667.1-1995公制螺牙

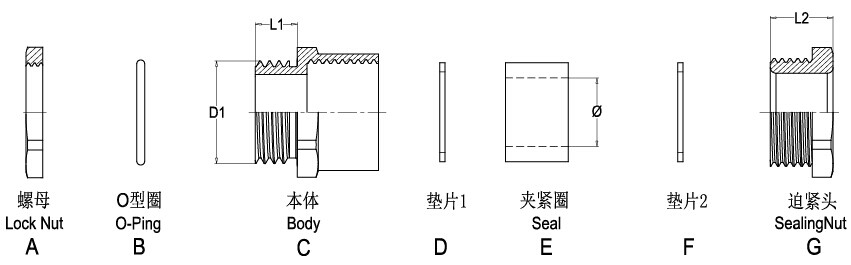

產品材質:A.C.F部位均采用鋅合金鍍鎳制成.D采用鐵制墊片.B.E采用丁腈橡膠(NBR)制成。
防護等級:在規定的卡口范圍內,并使用O形密封圈旋緊迫緊頭,達到IP54。
PJ主要用于電機和輪船行業等。

型號 Item No	螺牙規格 Thread	適應電纜 Cable Range Φ	螺紋外徑 Thread O.D. D1	機板口徑 Panel Mounting Hole	螺紋長度 Thread Length L1	板手Spanner size A&F	包裝 Std.Pkg Pcs
英制螺紋							50PCS
PJ-G3/8	G3/8''	5-7	16.5	16.5-17.1	10	22
PJ-G1/2	G1.2''	6-12	21.3	21.0-21.3	11	27
PJ-G1/2	G1/2''	11-15	21.3	21.0-21.3	11	32
PJ-G3/4	G3/4''	14-18	26.6	26.5-26.6	14	36
PJ-G1	G1''	17-23	33.4	33.2-3.4	14	41
PJ-G1-1/4	G1 1/4''	22-27	42.1	41.9-42.1	14	46	20PCS
PJ-G1-1/4	G1 1/4''	26-33	42.1	41.9-42.1	14	50	20PCS
PJ-G1-1/2	G1 1/2''	32-41	47.8	47.8-48.0	14	60	5PCS
PJ-G2	G2''	40-49	59.6	59.6-60.1	20	70	5PCS
公制螺紋							50PCS
PJ-M14*1.0	M14*1.0	5-7	14	14-14.3	10	22
PJ-M18*1.0	M18*1.0	6-12	18	18-18.3	11	27
PJ-M22*1.0	M22*1.0	11-15	22	22-22.3	11	32
PJ-M27*1.5	M27*1.5	14-18	27	27-27..4	14	36	20PCS
PJ-M30*1.5	M30*1.5	17-23	30	30-30.4	14	41
PJ-M36*2.0	M36*2.0	22-27	36	36-36.4	14	46
PJ-M42*2.0	M42*2.0	26-33	42	42-42.4	14	50	5PCS
PJ-M52*2.0	M52*2.0	32-41	52	52-52.4	14	60
PJ-M58*3.0	M58*3.0	40-49	58	58-58.4	20	70
PJ-M68*3.0	M68*3.0	48-57	68	68-68.4	20	80
德制螺紋							50PCS
PJ-PG9	PG9	5-7	15.2	15.2-15.8	10	22
PJ-PG11	PG11	6-12	18.6	18.6-18.9	11	27
PJ-PG16	PG16	11-15	22.5	22.5-22.8	11	32	20PCS
PJ-PG21	PG21	14-18	28.3	28.3-28.7	14	36	20PCS
PJ-PG29	PG29	17-23	37.0	37.0-37.4	14	41	5PCS
PJ-PG29	PG29	22-27	37.0	37.0-37.4	14	46
PJ-PG36	PG36	26-33	37.0	37.0-37.4	14	50
PJ-PG42	PG42	32-41	54.0	54.0-54.4	14	60
PJ-PG48	PG48	40-49	59.3	59.3-59.7	20	70
