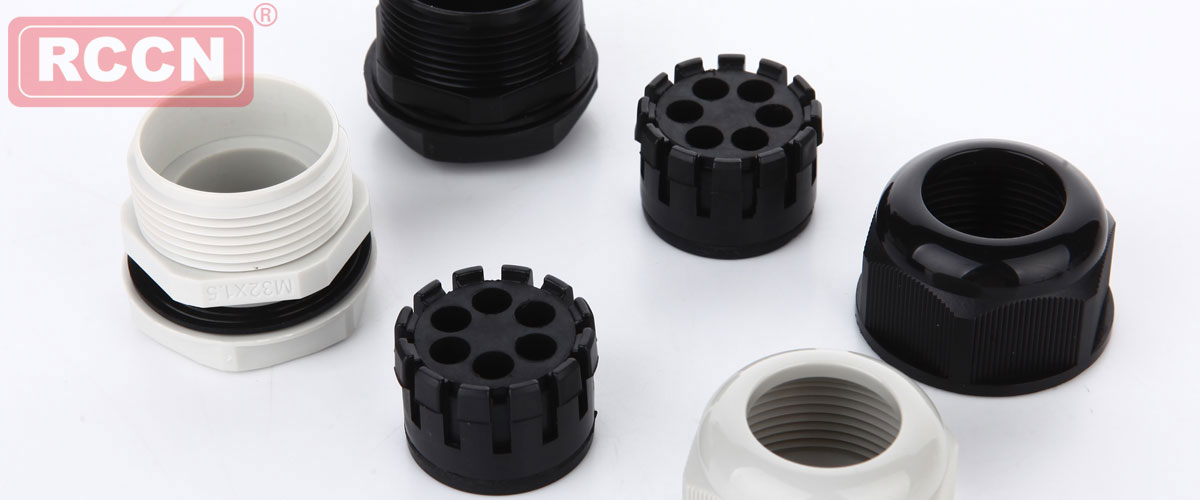

特點：適應多股線安裝

螺牙規格::德制螺牙(DIN STANDARD)

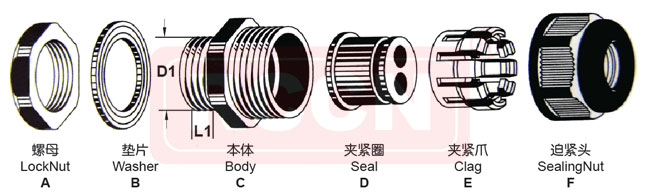

產品材質:A.C.E.F部位均采用環保尼龍66(NYLON66)原料制成.B.D采用耐老化橡膠材質。
產品認證:UL/CUL:E348185,歐洲CE 歐洲環保SGS,REACH,防爆EX認證。
防火等級:UL94V-2。
工作溫度:靜態-40°C至105°C。????????????????????????????
防護等級:在規定的卡口范圍內,并使用防水墊片及夾緊圈旋緊迫緊頭,達到IP68。
顏色種類:淺灰色(RAL7035)、黑色(RAL9005)。
產品特性:夾緊爪與夾緊圈分體成型之設計雙重橡膠防塵,水功能,配合防松迫緊頭裝配省時便利,夾緊電纜范圍大,固定電纜抗拉力超強,氣密性更完美,可沉于水下持續防水、水上防塵、戶外耐老化UV過1000小時，耐化學物質與一般溶劑。

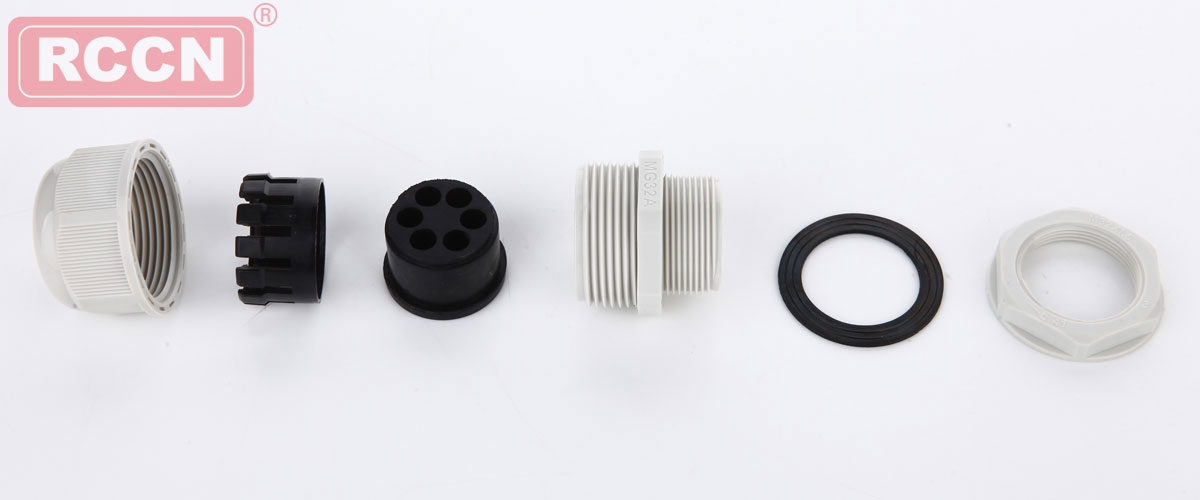

使用方法:先將本體穿于機板,再以螺母扭緊固定,線纜穿過迫緊頭,扭緊迫緊頭將其固定。
更多選擇:可根據用戶要求訂制不同的夾緊圈孔徑。
說明:*號為常備品,可按要求定制其它孔徑。

型號 Item No		螺牙規格? Thread ?	適應電纜外徑? CableRange Φ	螺紋外徑 Thread O.D.? D1	機板口徑 Panel Mounting Hol	螺紋長度 Thread? Length? L1	板手? Spanner size? A&F	包裝 Std.Pkg pcs
黑色 Black	灰白色 White	螺牙規格? Thread ?	適應電纜外徑? CableRange Φ	螺紋外徑 Thread O.D.? D1	機板口徑 Panel Mounting Hol	螺紋長度 Thread? Length? L1	板手? Spanner size? A&F	包裝 Std.Pkg pcs
2孔
*PG7A-H2-03B	PG7A-H2-03G	PG7	1.2-3.1	12.5	12.5-12.8	8	17/19	50PCS
*PG9A-H2-03B	PG9A-H2-03G	PG9	1.6-3.1	15.2	15.2-15.8	8.2	22/19
PG11A-H2-03B	PG11A-H2-03G	PG11	2-3	18.6	18.6-18.9	10	24/22
*PG13.5A-H2-05B	PG13.5A-H2-05G	PG13.5	3.5-5.2	20.4	20.4-20.7	10	27/24
*PG16A-H2-06B	PG16A-H2-06G	PG16	4.3-6.1	22.5	22.5-22.8	10.8	30/27
*PG21AH2-08B	PG21AH2-08G	PG21	6.4-8.7	28.3	28.3-28.7	12	36/33
PG29A-H2-10B	PG29A-H2-10G	PG29	7.7-10	37.0	37.0-37.4	12	46/41
3孔
*PG7A-H3-02B	PG7A-H3-02G	PG7	1.6-2.6	12.5	12.5-12.8	8	17/19	50PCS
*PG9A-H3-02B	PG9A-H3-02G	PG9	1.6-2.6	15.2	15.2-15.8	8.2	22/19
*PG11A-H3-03B	PG11A-H3-03G	PG11	2-3	18.6	18.6-18.9	10	24/22
*PG13.5A-H3-05B	PG13.5A-H3-05G	PG13.5	3.5-5	20.4	20.4-20.7	10	27/24
*PG16A-H3-05B	PG16A-H3-05G	PG16	3.5-5.2	22.5	22.5-22.8	10.8	30/27
*PG21A-H3-08B	PG21A-H3-08G	PG21	6.2-8	28.3	28.3-28.7	12	36/33
*PG29A-H3-10B	PG29A-H3-10G	PG29	7.7-10	37.0	37.0-37.4	12	46/41
4孔
*PG7A-H4-02B	PG7A-H4-02G	PG7	1.3-2.3	12.5	12.5-12.8	8	17/19	50PCS
*PG9A-H4-02B	PG9A-H4-02G	PG9	1.3-2.3	15.2	15.2-15.8	8.2	22/19
PG11A-H4-03B	PG11A-H4-03G	PG11	2.4-3.4	18.6	18.6-18.9	10	24/22
PG13.5A-H4-04B	PG13.5A-H4-04G	PG13.5	3-4.2	20.4	20.4-20.7	10	27/24
*PG16A-H4-04B	PG16A-H4-04G	PG16	3.4-4.8	22.5	22.5-22.8	10.8	30/27
*PG21A-H4-07B	PG21A-H4-07G	PG21	5.6-7.3	28.3	28.3-28.7	12	36/33
*PG29A-H4-09B	PG29A-H4-09G	PG29	7-9	37.0	37.0-37.4	12	46/41
5孔
PG11A-H5-02B	PG11A-H5-02G	PG11	2-2.8	18.6	18.6-18.9	10	24/22	50PCS
PG16A-H5-03B	PG16A-H5-03G	PG16	2-3.1	22.5	22.5-22.8	10.8	30/27
PG16A-H5-04B	PG16A-H5-04G	PG16	3-4.1	22.5	22.5-22.8	10.8	30/27
PG21A-H5-03B	PG21A-H5-03G	PG21	2.6-3.6	28.3	28.3-28.7	12	36/33
*PG29A-H5-06B	PG29A-H5-06G	PG29	4.1-6	37.0	37.0-37.4	12	46/41
PG36A-H5-08B	PG36A-H5-08G	PG36	6.5-8.3	47.0	47.0-47.4	14	51/52
6孔
PG11A-H6-02B	PG11A-H6-02G	PG11	1.4-2.1	18.6	18.6-18.9	10	24/22	50PCS
PG13.5A-H6-03B	PG13.5A-H6-03G	PG13.5	2-3	20.4	20.4-20.7	10	27/24
PG16A-H6-03B	PG16A-H6-03G	PG16	2-3	22.5	22.5-22.8	10.8	30/27
PG21A-H6-05B	PG21A-H6-05G	PG21	3.6-5.2	28.3	28.3-28.7	12	36/33
*PG29A-H6-07B	PG29A-H6-07G	PG29	5.6-7	37.0	37.0-37.4	12	46/41
7孔
PG16A-H7-03B	PG16A-H7-03G	PG16	2-3	22.5	22.5-22.8	10.8	30/27	50PCS
*PG21A-H7-03B	PG21A-H7-03G	PG21	2.6-3.6	28.3	28.3-28.7	12	36/33
PG29A-H7-06B	PG29A-H7-06G	PG29	4.6-6	37.0	37.0-37.4	12	46/41
8孔
PG13.5A-H8-02B	PG13.5A-H8-02G	PG13.5	1.2-2.5	20.4	20-20.3	15	27/27	?
PG21A-H8-03B	PG21A-H8-03G	PG21	1.5-3	28.3	28.3-28.7	15	36/33	?
扁孔
PG9A-0610B	PG9A-0610G	PG9	6*10	15.2	15.2-15.8	8.2	22/19	50PCS
PG13.5A-0714B	PG13.5A-0714G	PG13.5	7*14	20.4	20.4-20.7	10	27/24
PG16A-0714B	PG16A-0714G	PG16	7*14	22.5	22.5-22.8	10.8	30/27
PG21A-0822B	PG21A-0822G	PG21	8*22	28.3	28.3-28.7	12	36/33
PG36A-0529B	PG36A-0529G	PG36	5.5*29	47.0	47.0-47.4	14	51/52
