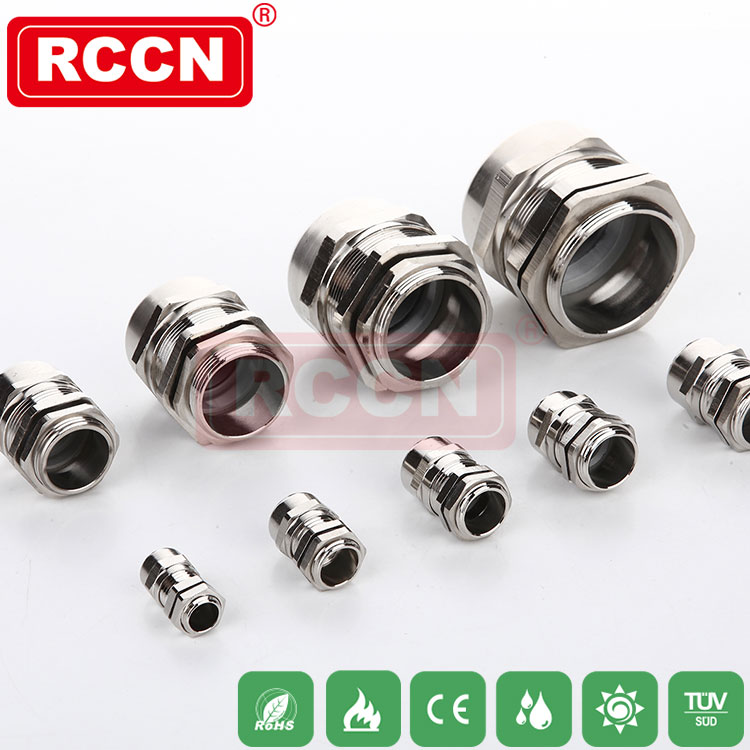

日成多孔加厚金屬防水電纜接頭 A

金屬接頭,電纜防水接頭

產品材質:金屬:黃銅鍍鎳夾緊爪:尼龍橡膠:硅橡膠
螺牙規(guī)格:M/PG/NPT/G(PF) ?產品認證:CE,EX,ROHS
工作溫度:-50°C至150°C ?防護等級:IP68

產品規(guī)格

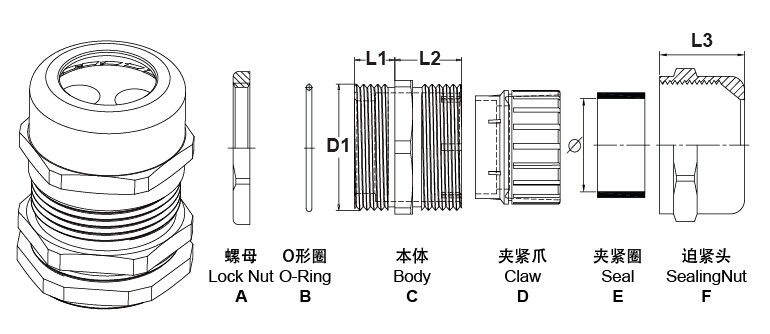

公制螺紋 M?	德制螺紋 PG	美制螺紋 NPT	英制螺紋 G	孔數(shù)×孔徑 Cable Range	適用電纜 Cable Range	螺紋長度 Thread Length L1	配套螺母上限板厚 +Nut Max platethick	接合長度 Joint Length L2+L3	板手 Spanner SW A/F
A-M12×1.5-H2-2	A-PG7-H2-2	A-NPT1/4-H2-2	A-G1/4-H2-2	2×2	0.5-2	6	≤2.5	19	14/14
A-M12×1.5-H3-2	A-PG7-H3-2	A-NPT1/4-H3-2	A-G1/4-H3-2	3×2	0.5-2	6	≤2.5	19	14/14
A-M12×1.5-H4-1	A-PG7-H4-1	A-NPT1/4-H4-1	A-G1/4-H4-1	4×1	0.3-1	6	≤2.5	19	14/14
A-M16×1.5-H2-3	A-PG9-H2-3	A-NPT3/8-H2-3	A-G3/8-H2-3	2×3	1-3	7	≤3.5	20	18/18
A-M16×1.5-H3-3	A-PG9-H3-3	A-NPT3/8-H3-3	A-G3/8-H3-3	3×3	1-3	7	≤3.5	20	18/18
A-M16×1.5-H4-2	A-PG9-H4-2	A-NPT3/8-H4-2	A-G3/8-H4-2	4×2	1-2	7	≤3.5	20	18/18
A-M16×1.5-H5-1	A-PG9-H5-1	A-NPT3/8-H5-1	A-G3/8-H5-1	5×1	0.3-1	7	≤3.5	20	18/18
A-M20×1.5-H2-4	A-PG13.5-H2-4	A-NPT1/2-H2-4	A-G1/2-H2-4	2×4	2-4	8	≤4.5	23	22/22
A-M20×1.5-H3-4	A-PG13.5-H3-4	A-NPT1/2-H3-4	A-G1/2-H3-4	3×4	2-4	8	≤4.5	23	22/22
A-M20×1.5-H4-3	A-PG13.5-H4-3	A-NPT1/2-H4-3	A-G1/2-H4-3	4×3	1-3	8	≤4.5	23	22/22
A-M20×1.5-H5-2	A-PG13.5-H5-2	A-NPT1/2-H5-2	A-G1/2-H5-2	5×2	0.5-2	8	≤4.5	23	22/22
A-M20×1.5-H6-1	A-PG13.5-H6-1	A-NPT1/2-H6-1	A-G1/2-H6-1	6×1	0.3-1	8	≤4.5	23	22/22
A-M25×1.5-H2-5	A-PG16-H2-5	A-NPT3/4-H2-5	A-G3/4-H2-5	2×5	3-5	9	≤4.5	23	28/24
A-M25×1.5-H3-5	A-PG16-H3-5	A-NPT3/4-H3-5	A-G3/4-H3-5	3×5	3-5	9	≤4.5	23	28-24/24
A-M25×1.5-H4-4	A-PG16-H4-4	A-NPT3/4-H4-4	A-G3/4-H4-4	4×4	2-4	9	≤4.5	23	28/24
A-M25×1.5-H5-3	A-PG16-H5-3	A-NPT3/4-H5-3	A-G3/4-H5-3	5×3	1-3	9	≤4.5	23	28/24
A-M25×1.5-H6-2	A-PG16-H6-2	A-NPT3/4-H6-2	A-G3/4-H6-2	6×2	0.5-2	9	≤4.5	23	28/24
A-M32×1.5-H2-7	A-PG21-H2-7	A-NPT3/4-H2-7	A-G3/4-H2-7	2×7	4-7	9	≤4.5	23	34-30/30
A-M32×1.5-H3-6	A-PG21-H3-6	A-NPT3/4-H3-6	A-G3/4-H3-6	3×6	3-6	9	≤4.5	23	34-30/30
A-M32×1.5-H4-6	A-PG21-H4-6	A-NPT3/4-H4-6	A-G3/4-H4-6	4×6	3-6	9	≤4.5	23	34-30/30
A-M32×1.5-H5-4	A-PG21-H5-4	A-NPT3/4-H5-4	A-G3/4-H5-4	5×4	2-4	9	≤4.5	23	34-30/30
A-M32×1.5-H6-3	A-PG21-H6-3	A-NPT3/4-H6-3	A-G3/4-H6-3	6×3	1-3	9	≤4.5	23	34-30/30
A-M32×1.5-H7-2	A-PG21-H7-2	A-NPT3/4-H7-2	A-G3/4-H7-2	7×2	0.5-2	9	≤4.5	23	34-30/30
A-M40×1.5-H2-8	A-PG29-H2-8	A-NPT1-1/4-H2-8	A-G1-1/4-H2-8	2×8	5-8	11	≤5.5	32	44-40/40
A-M40×1.5-H3-8	A-PG29-H3-8	A-NPT1-1/4-H3-8	A-G1-1/4-H3-8	3×8	5-8	11	≤5.5	32	44-40/40
A-M40×1.5-H4-8	A-PG29-H4-8	A-NPT1-1/4-H4-8	A-G1-1/4-H4-8	4×8	5-8	11	≤5.5	32	44-40/40
A-M40×1.5-H5-6	A-PG29-H5-6	A-NPT1-1/4-H5-6	A-G1-1/4-H5-6	5×6	3-6	11	≤5.5	32	44-40/40
A-M40×1.5-H6-5	A-PG29-H6-5	A-NPT1-1/4-H6-5	A-G1-1/4-H6-5	6×5	3-5	11	≤5.5	32	44-40/40
A-M40×1.5-H7-5	A-PG29-H7-5	A-NPT1-1/4-H7-5	A-G1-1/4-H7-5	7×5	3-5	11	≤5.5	32	44-40/40
A-M50×1.5-H2-12	A-PG36-H2-12	A-NPT1-1/2-H2-12	A-G1-1/2-H2-12	2×12	22-32	11	≤5.5	32	54-50/50
A-M50×1.5-H3-11	A-PG36-H3-11	A-NPT1-1/2-H3-11	A-G1-1/2-H3-11	3×11	22-32	11	≤5.5	32	54-50/50
A-M50×1.5-H4-9	A-PG36-H4-9	A-NPT1-1/2-H4-9	A-G1-1/2-H4-9	4×9	22-32	11	≤5.5	32	54-50/50
A-M50×1.5-H5-8	A-PG36-H5-8	A-NPT1-1/2-H5-8	A-G1-1/2-H5-8	5×8	22-32	11	≤5.5	32	54-50/50
A-M50×1.5-H6-7	A-PG36-H6-7	A-NPT1-1/2-H6-7	A-G1-1/2-H6-7	6×7	22-32	11	≤5.5	32	54-50/50
A-M50×1.5-H7-7	A-PG36-H7-7	A-NPT1-1/2-H7-7	A-G1-1/2-H7-7	7×7	22-32	11	≤5.5	32	54-50/50
A-M20×1.5-W4H10	A-PG13.5-W4H10	A-NPT1/2-W4H10	A-G1/2-W4H10	1	4×10	8	≤4.5	23	22/22
A-M20×1.5-W3H11	A-PG13.5-W3H11	A-NPT1/2-W3H11	A-G1/2-W3H11	1	3×11	8	≤4.5	23	22/22
A-M25×1.5-W6H13	A-PG16-W6H13	A-NPT3/4-W6H13	A-G3/4-W6H13	1	6×13	9	≤4.5	23	28/24
A-M32×1.5-W5H17	A-PG21-W5H17	A-NPT3/4-W5H17	A-G3/4-W5H17	1	5×17	9	≤4.5	23	34-30/30
A-M40×1.5-W8H25	A-PG29-W8H25	A-NPT1-1/4-W8H25	A-G1-1/4-W8H25	1	8×25	11	≤5.5	32	44-40/40
A-M50×1.5-W6H30	A-PG36-W6H30	A-NPT1-1/2-W6H30	A-G1-1/2-W6H30	1	6×30	11	≤5.5	32	54-50/50
A-M63×1.5-W9H43	A-PG48-W9H43	A-NPT2-W9H43	A-G2-W9H43	1	9×43	18	≤12.5	38	68-64/64
