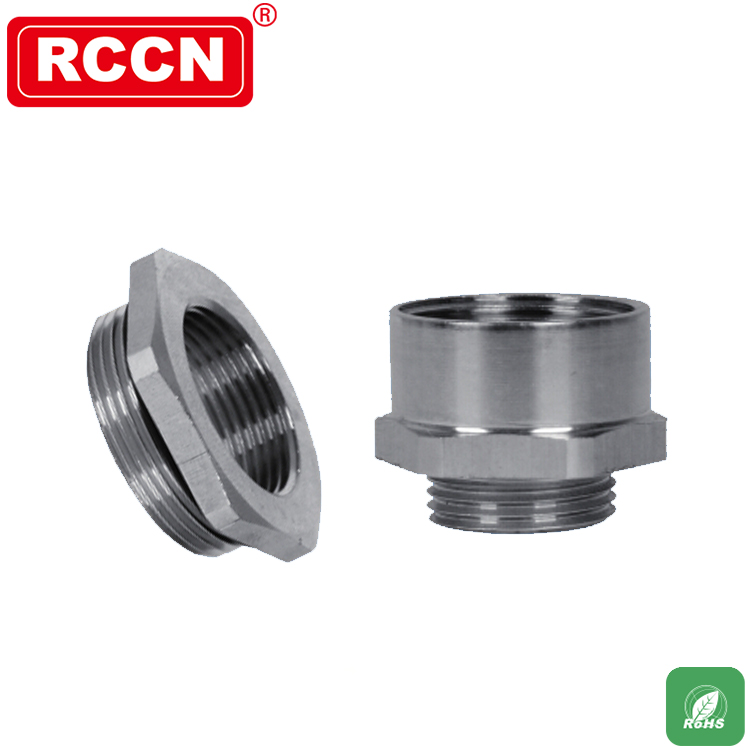

材質:304不銹鋼,密封件材料為改性橡膠
防護等級:IP68
材質:304不銹鋼,密封件材料為改性橡膠
防護等級:IP68

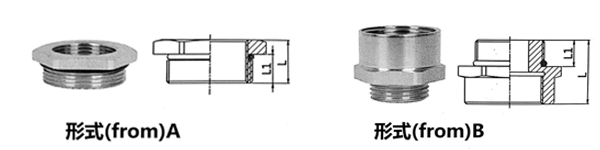

型號? Item No. | 外螺紋規格 Outer?Thread | 內螺紋規格 inner?Thread | 螺紋長度LI Thread?length mm | 總長度L? total?length mm | 扳手尺SW Wrench?size | 形式 form | 扳手尺寸 mm |
ADM-M/PG不銹鋼變徑環-公制螺紋轉PG制螺紋Metric?Thread?to?PG?Thread | |||||||
ADM-M16/PG07 | M16xl.5 | PG7 | 7 | 9.5 | 18 | A | 50 |
ADM-M16/PG09 | M16xl.5 | PG9 | 7 | 17.5 | 19 | B | 50 |
ADM-M16/PG11 | M16xl.5 | PG11 | 7 | 17.5 | 22 | B | 50 |
ADM-M18/PG09 | M18xl.5 | PG9 | 7 | 17.5 | 21 | B | 50 |
ADM-M18/PG11 | M18xl.5 | PG11 | 7 | 17.5 | 22 | B | 50 |
ADM-M18/PG13.5 | M18xl.5 | PG13.5 | 7 | 17.5 | 24 | B | 50 |
ADM-M20/PG11 | M20xl.5 | PG11 | 7 | 17.5 | 24 | B | 50 |
ADM-M20/PG13.5 | M20xl.5 | PG13.5 | 7 | 17.5 | 24 | B | 50 |
ADM-M20/PG16 | M20xl.5 | PG16 | 7 | 20 | 27 | B | 50 |
ADM-M25/PG16 | M25xl.5 | PG16 | 7 | 20 | 28 | B | 25 |
ADM-M25/PG21 | M25xl.5 | PG21 | 7 | 25 | 32 | B | 25 |
ADM-M27/PG13.5 | M27x2.0 | PG13.5 | 7 | 10 | 30 | A | 50 |
ADM-M27/PG16 | M27x2.0 | PG16 | 7 | 10 | 30 | A | 25 |
ADM-M32/PG16 | M32xl.5 | PG16 | 8 | 11.5 | 36 | A | 25 |
ADM-M32/PG21 | M32xl.5 | PG21 | 8 | 11.5 | 36 | A | 25 |
ADM-M32/PG29 | M32xl.5 | PG29 | 8 | 23.5 | 40 | B | 25 |
ADM-M40/PG29 | M40xl.5 | PG29 | 9 | 25 | 45 | B | 25 |
ADM-M40/PG36 | M40xl.5 | PG36 | 9 | 27.5 | 50 | B | 25 |
ADM-M50/PG21 | M50xl.5 | PG21 | 10 | 14 | 55 | A | 25 |
ADM-M50/PG29 | M50xl.5 | PG29 | 10 | 14 | 55 | A | 25 |
ADM-PG/M不銹鋼變徑環-PG制螺紋轉公制螺紋PG?Thread?to?Metric?Thread | |||||||
ADM-PG09/M16 | PG9 | M16xl.5 | 7 | 17.5 | 20 | B | 50 |
ADM-PG09/M20 | PG9 | M20xl.5 | 7 | 18 | 24 | B | 50 |
ADM-PG11/M20 | PG11 | M20xl.5 | 7 | 18 | 24 | B | 50 |
ADM-PG13.5/M20 | PG13.5 | M20xl.5 | 7 | 18 | 24 | B | 50 |
ADM-PG16/M20 | PG16 | M20xl.5 | 7 | 18 | 24 | B | 50 |
ADM-PG16/M25 | PG16 | M25xl.5 | 7 | 19 | 28 | B | 25 |
ADM-PG21/M25 | PG21 | M25xl.5 | 7 | 18.5 | 32 | B | 25 |
ADM-PG21/M32 | PG21 | M32xl.5 | 7 | 20 | 36 | B | 25 |
ADM-PG21/M40 | PG21 | M40xl.5 | 7 | 23 | 45 | B | 25 |
ADM-PG29/M40 | PG29 | M40xl.5 | 8 | 24 | 45 | B | 25 |
ADM-PG36/M50 | PG36 | M50xl.5 | 9 | 25 | 55 | B | 25 |
ADM-PG42/M63 | PG42 | M63xl.5 | 10 | 31 | 70 | B | 10 |
