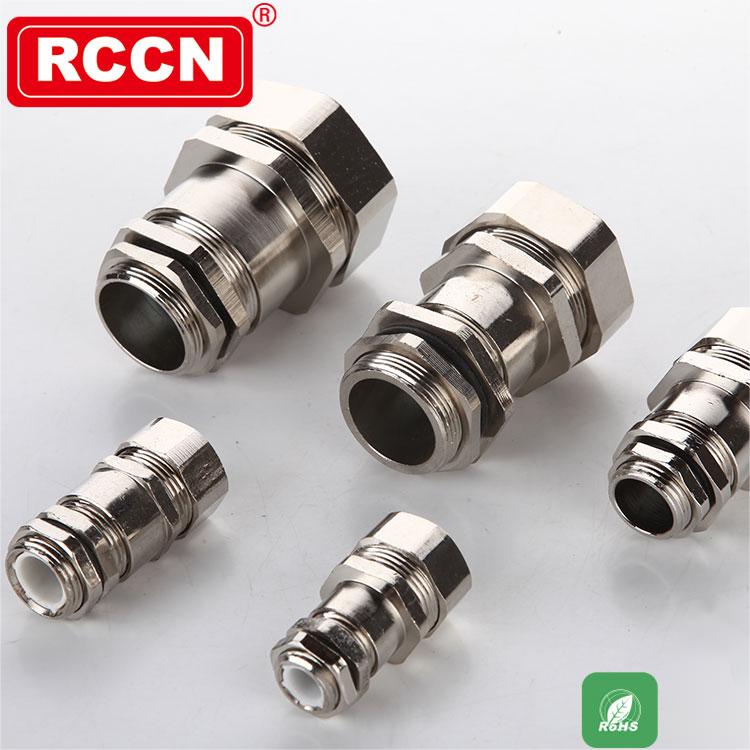

金屬軟管接頭,軟管接頭

螺牙規格:管螺紋G/PF牙,公制螺紋Metric,德制螺紋PG

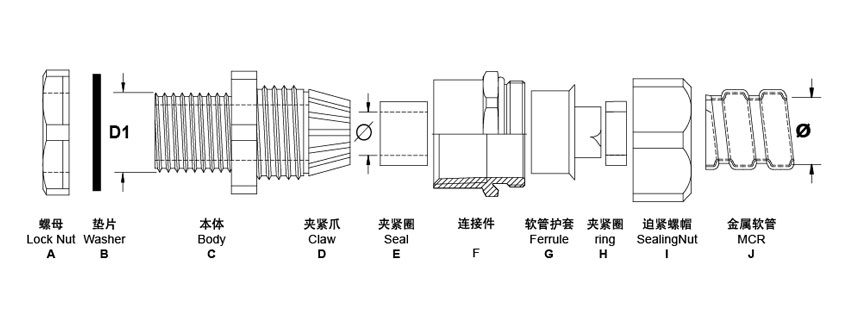

產品材質:A.C.F I部位均采用鋅合金材質.
B.E.H采用丁腈橡膠(NBR) 制成.G為鐵皮制成.
產品認證:歐洲環保RoHS?
顏色種類:金屬色
防護等級:IP54, 如需IP68需配套日成含膠管SCM二次保護接頭.
工作溫度:-40°C至100°C,瞬間可耐熱達120°C.
產品特性: 1.外型美觀,結構緊密,強度更高.
2.軟管護套設計與軟管相扣接緊之設計,配合迫緊頭裝配省時便利,抗拉力特強,
3.可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及一般溶劑.
4.除以下標準規格外,可另按需求任意變動大小及螺紋標準.
備? 注:成品均配帶螺母A及防水墊片B,可定制特殊規格不同的螺紋和配套和管.

型號 Item No.	螺牙標準 Thread G/M/PG	適用電纜	配套日成金屬軟管MCR Suitable RCCN metal flexible conduit MCR			螺紋外徑 Thread O.D. D1 ?	螺紋長度 Thread Length L1 ?
型號 Item No.	螺牙標準 Thread G/M/PG	適用電纜	對應型號 Corresponding item no	公制 Metric ?	英制 British	螺紋外徑 Thread O.D. D1 ?	螺紋長度 Thread Length L1 ?
公制螺牙/Metric thread NBL-M????????
NBL-03M	M16*1.5	6-10	MCR-03	10	1/4	M16*1.5	8
NBL-04M	M16*1.5	6-10	MCR-04	13	3/8"	M16*1.5	11
NBL-05M	M20*1.5	8-12	MCR-05	16	1/2"	M20*1.5	11
NBL-06M	M25*1.5	10-14	MCR-06	20	3/4"	M25*1.5	14
NBL-08M	M32*1.5	15-22	MCR-08	25	1"	M32*1.5	15
NBL-10M	M40*1.5	18-25	MCR-10	32	11/4"	M40*1.5	15
NBL-12M	M50*1.5	26-32	MCR-12	38	1 1/2	M50*1.5	16
NBL-16M	M63*1.5	37-44	MCR-16	51	2"	M63*1.5	18
NBL-20M	M76*2	42-52	MCR-20	64	2 1/2"	M76*2	22
NBL-24M	M88*2	55-62	MCR-24	80	3"	M88*2	22
NBL-32M	M114*2	78-84	MCR-32	100	4"	M114*2	24
德制螺紋/Metric thread NBL-P
NBL-03P	PG9	4-8	MCR-03	10	1/4"	15.2	8
NBL-04P	PG11	6-10	MCR-04	13	3/8"	18.6	9
NBL-05P	PG13.5	8-12	MCR-05	16	1/2"	20.4	11
NBL-06P	PG21	13-18	MCR-06	20	3/4"	28.3	14
NBL-08P	PG29	18-25	MCR-08	25	1"	37.0	15
NBL-10P	PG29	18-25	MCR-10	32	1 1/4"	37.0	15
NBL-12P	PG36	26-32	MCR-12	38	11/2"	47.0	16
NBL-16P	PG48	37-44	MCR-16	51	2"	59.3	18
管螺紋/Tube thread NBL-G????????
NBL-03G	G3/8"	4-8	MCR-03	10	1/4"	16.5	8
NBL-04G	G3/8"	6-10	MCR-04	13	3/8"	16.5	8
NBL-05G	G1/2"	8-12	MCR-05	16	1/2"	21.3	11
NBL-06G	G3/4"	13-18	MCR-06	20	3/4"	26.6	14
NBL-08G	G1"	15-22	MCR-08	25	1"	33.4	15
NBL-10G	G1 1/4"	22-28	MCR-10	32	11/4"	42.1	15
NBL-12G	G1 1/2"	26-32	MCR-12	38	11/2"	47.8	16
NBL-16G	G2"	37-44	MCR-16	51	2	59.6	18
