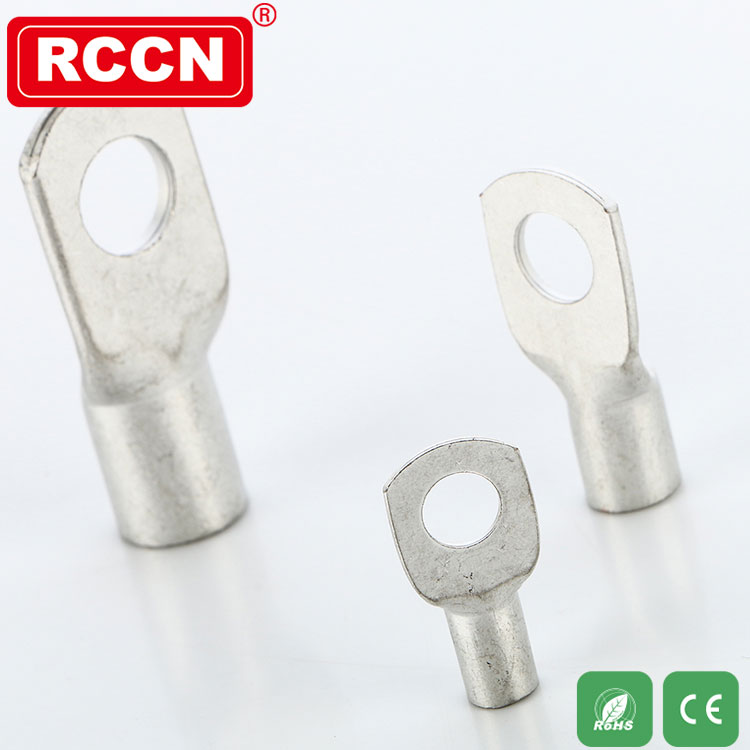

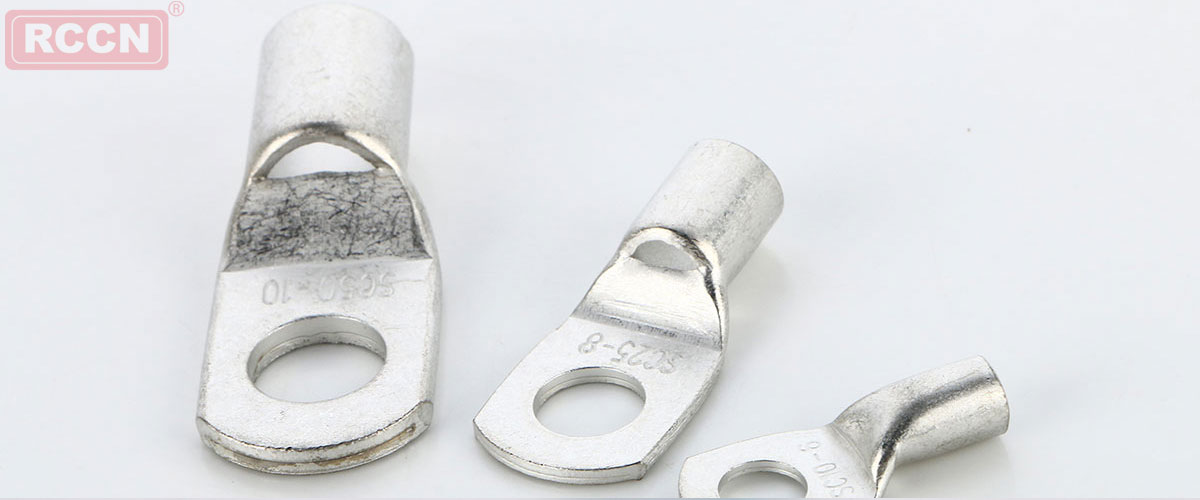

日成銅管端子 BSC

冷壓端頭,銅管端子,線鼻子

產品材質:接線端子采用優質紫銅制成,導電性良好
產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套日成端子鉗即可壓緊電線,接線美觀,
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至150度正常使用.
使用方法:將電線剝開外皮,穿入端子后銅管

冷壓端子冷壓端頭銅端子銅管端頭線鼻子

產品規格

型號 Item No.	尺寸 DIMENSION
型號 Item No.	E	ΦD	Φd	W	B	L
BSC1.5-4	4.2	3.4	1.8	8.0	5.0	16.0
BSC1.5-5	5.2	3.4	1.8	10.0	5.0	17.0
BSC1.5-6	6.5	3.4	1.8	10.0	5.0	18.0
BSC2.5-4	4.2	3.7	2.4	8.0	7.0	18.0
BSC2.5-5	5.2	3.7	2.4	10.0	7.0	20.0
BSC2.5-6	6.5	3.7	2.4	10.0	7.0	20.0
BSC2.5-8	8.4	3.7	2.4	12.5	7.0	23.0
BSC4-4	4.2	4.5	3.1	10.0	7.0	20.0
BSC4-5	5.2	4.5	3.1	10.0	7.0	20.0
BSC4-6	6.5	4.5	3.1	10.0	7.0	20.0
BSC4-8	8.4	4.5	3.1	12.5	7.0	23.0
BSC6-4	4.2	5.2	3.8	10.0	9.0	23.0
BSC6-5	5.2	5.2	3.8	10.0	9.0	24.0
BSC6-6	6.5	5.2	3.8	12.0	9.0	24.0
BSC6-8	8.4	5.2	3.8	12.5	9.0	26.0
BSC6-10	10.5	5.9	4.0	15.0	9.0	28.0
BSC10-5	5.2	5.9	4.5	12.0	9.0	25.0
BSC10-6	6.5	5.9	4.5	12.0	9.0	25.0
BSC10-8	8.4	5.9	4.5	12.5	9.0	27.0
BSC10-10	10.5	5.9	4.5	15.0	9.0	29.0
BSC10-12	13.0	5.9	4.5	17.0	9.0	31.0
BSC16-5	5.2	6.8	5.4	12.0	12.0	30.0
BSC16-6	6.5	6.8	5.4	12.0	12.0	30.0
BSC16-8	8.4	6.8	5.4	12.5	12.0	30.0
BSC16-10	10.5	6.8	5.4	16.0	12.0	33.0
BSC16-12	13.0	6.8	5.4	17.0	12.0	35.0
BSC25-5	5.2	8.4	6.8	13.0	12.0	33.0
BSC25-6	6.5	8.4	6.8	13.0	12.0	33.0
BSC25-8	8.4	8.4	6.8	15.0	12.0	33.0
BSC25-10	10.5	8.4	6.8	18.0	12.0	34.0
BSC25-12	13.0	8.4	6.8	18.0	12.0	35.0
BSC25-14	15.0	8.4	6.8	20.0	12.0	38.0
BSC35-5	5.2	10.2	8.2	16.0	14.0	38.0
BSC35-6	6.5	10.2	8.2	16.0	14.0	38.0
BSC35-8	8.4	10.2	8.2	16.0	14.0	38.0
BSC35-10	10.5	10.2	8.2	18.0	14.0	39.0
BSC35-12	13.0	11.9	8.2	19.0	14.0	40.5
BSC35-14	15.0	11.9	8.2	20.0	14.0	42.0
BSC50-6	6.5	11.9	9.5	17.8	16.0	45.0
BSC50-8	8.4	11.9	9.5	17.8	16.0	45.0
BSC50-10	10.5	11.9	9.5	17.8	16.0	45.0
BSC50-12	13.0	11.9	9.5	20.0	16.0	45.0
BSC50-14	15.0	11.9	9.5	22.0	16.0	46.0
BSC50-16	17.0	11.9	9.5	24.0	16.0	47.0
BSC70-8	8.4	14.1	11.2	20.4	20.0	52.0
BSC70-10	10.5	14.1	11.2	20.4	20.0	52.0
BSC70-12	13.0	14.1	11.2	20.4	20.0	52.0
BSC70-14	15.0	14.1	11.2	20.4	20.0	52.0
BSC70-16	17.0	14.1	11.2	25.0	20.0	53.0
BSC95-8	8.4	17.1	13.5	24.0	23.0	58.0
BSC95-10	10.5	16.7	13.5	24.0	23.0	58.0
BSC95-12	13.0	16.7	13.5	24.0	23.0	58.0
BSC95-14	15.0	16.7	13.5	24.0	23.0	58.0
BSC95-16	17.0	16.7	13.5	24.0	23.0	58.0
BSC120-8	8.4	18.6	15.0	27.0	22.0	63.0
BSC120-10	10.5	18.6	15.0	27.0	22.0	63.0
BSC120-12	13.0	18.6	15.0	27.0	22.0	63.0
BSC120-14	15.0	18.6	15.0	27.0	22.0	63.0
BSC120-16	17.0	18.6	15.0	27.0	22.0	63.0
BSC120-20	21.0	18.6	15.0	27.0	22.0	63.0
BSC150-8	8.4	20.4	16.5	29.5	26.0	70.0
BSC150-10	10.5	20.4	16.5	29.5	26.0	70.0
BSC150-12	13.0	20.4	16.5	29.5	26.0	70.0
BSC150-14	15.0	20.4	16.5	29.5	26.0	70.0
BSC150-16	17.0	20.4	16.5	29.5	26.0	70.0
BSC150-20	21.0	20.4	16.5	29.5	26.0	70.0
BSC185-10	10.5	22.6	18.5	32.5	32.0	75.0
BSC185-12	13.0	22.6	18.5	32.5	32.0	75.0
BSC185-14	15.0	22.6	18.5	32.5	32.0	75.0
BSC185-16	17.0	22.6	18.5	32.5	32.0	75.0
BSC185-20	21.0	22.6	18.5	32.5	32.0	75.0
BSC240-10	10.5	25.5	21.0	37.0	38.0	90.0
BSC240-12	13.0	25.5	21.0	37.0	38.0	90.0
BSC240-14	15.0	25.5	21.0	37.0	38.0	90.0
BSC240-16	17.0	25.5	21.0	37.0	38.0	90.0
BSC240-20	21.0	25.5	21.0	37.0	38.0	90.0
BSC300-10	10.5	28.8	23.5	41.5	42.0	98.0
BSC300-12	13.0	28.8	23.5	41.5	42.0	98.0
BSC300-14	15.0	28.8	23.5	41.5	42.0	98.0
BSC300-16	17.0	28.8	23.5	41.5	42.0	98.0
BSC300-20	21.0	28.8	23.5	43.0	42.0	98.0
BSC400-10	10.5	35.1	28.5	50.5	44.0	110.0
BSC400-12	13.0	35.1	28.5	50.5	44.0	110.0
BSC400-14	15.0	35.1	28.5	50.5	44.0	110.0
BSC400-16	17.0	35.1	28.5	50.5	44.0	110.0
BSC400-20	21.0	35.1	28.5	50.5	44.0	110.0
BSC500-10	10.5	37.4	30.0	50.5	48.0	120.0
BSC500-12	13.0	37.4	30.0	53.5	48.0	120.0
BSC500-14	15.0	37.4	30.0	53.5	48.0	120.0
BSC500-16	17.0	37.4	30.0	53.5	48.0	120.0
BSC500-20	21.0	37.4	30.0	53.5	48.0	120.0
BSC630-10	10.5	43.2	35.0	63.0	56.0	140.0
BSC630-12	13.0	43.2	35.0	63.0	56.0	140.0
BSC630-14	15.0	43.2	35.0	63.0	56.0	140.0
BSC630-16	17.0	43.2	35.0	63.0	56.0	140.0
BSC630-20	21.0	43.2	35.0	63.0	56.0	140.0
