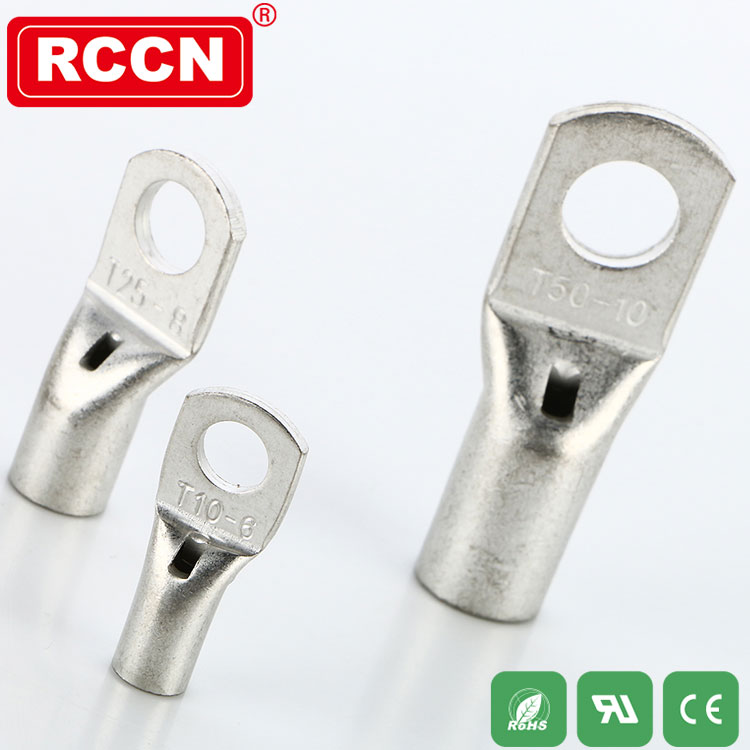

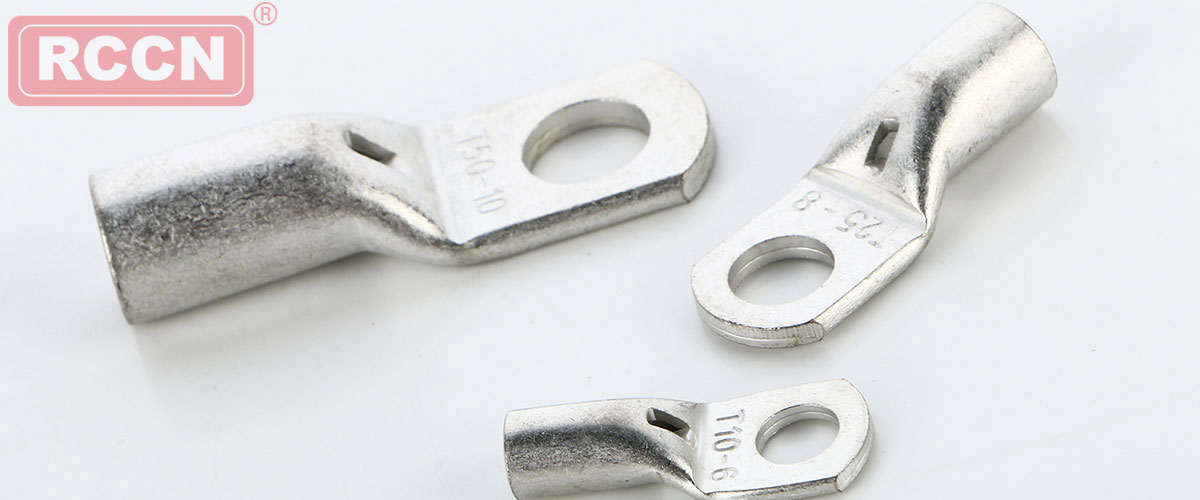

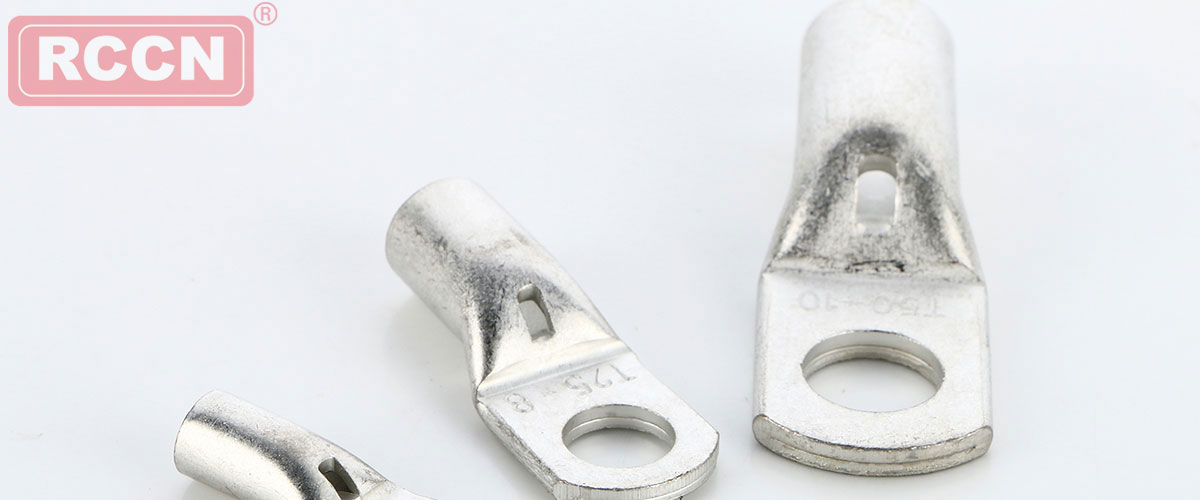

冷壓端子,銅管端頭,線鼻子

產品材質:接線端子采用優質紫銅制成,導電性良好
產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套日成端子鉗即可壓緊電線,接線美觀,
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至150度正常使用.
使用方法:將電線剝開外皮,穿入端子后銅管

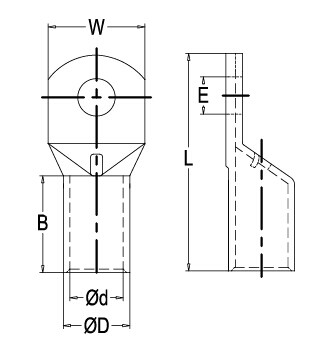

型號 Item No.	E	φD	φd	W	B	L
T1.5-4	4.3	4	2.4	8.7	7	19
T1.5-5	5.3	4	2.4	8.7	7	19
T1.5-6	6.4	4	2.4	10	7	20
T2.5-4	4.3	4.3	2.7	8.7	7	19
T2.5-5	5.3	4.3	2.7	8.7	7	19
T2.5-6	6.4	4.3	2.7	10.3	7	21
T2.5-8	8.3	4.3	2.7	12	7	23
T4-4	4.3	4.8	3.1	8.7	9.5	21.5
T4-5	5.3	4.8	3.1	8.7	9.5	21.5
T4-6	6.4	4.8	3.1	10.3	9.5	23.5
T4-8	8.3	4.8	3.1	12.5	9.5	28.5
T6-4	4.3	5.5	3.8	10.3	10	26
T6-5	5.3	5.5	3.8	10.3	10	26
T6-6	6.4	5.5	3.8	10.3	10	26
T6-8	8.3	5.5	3.8	13.9	10	29
T6-10	10.5	5.5	3.8	13.9	10	29
T10-4	4.3	6.9	4.7	11.9	11.5	27.5
T10-5	5.3	6.9	4.7	11.9	11.5	27.5
T10-6	6.4	6.9	4.7	11.9	11.5	27.5
T10-8	8.3	6.9	4.7	13.5	11.5	30.5
T10-10	10.5	6.9	4.7	15	11.5	30.5
T10-12	13.2	6.9	4.7	17	11.5	34
T16-5	5.3	7.8	5.6	12	12	27.5
T16-6	6.4	7.8	5.6	12	12	27.5
T16-8	8.3	7.8	5.6	13.5	12	31
T16-10	10.5	7.8	5.6	16	12	32
T16-12	13.2	7.8	5.6	17	12	37.5
T25-6	6.4	9.5	7.1	14	13.5	34
T25-8	8.3	9.5	7.1	14	13.5	34
T25-10	10.5	9.5	7.1	16	13.5	37
T25-12	13.2	9.5	7.1	18	13.5	40
T35-6	6.4	11	8.2	16.5	16	39
T35-8	8.3	11	8.2	16.5	16	39
T35-10	10.5	11	8.2	16.5	16	43
T35-12	13.2	11	8.2	18	16	43
T35-14	14.5	11	8.2	20	16	48
T35-16	16.5	11	8.2	23	16	48
T40-6	6.4	11.2	9	17	17	44
T40-8	8.3	11.2	9	17	17	44
T40-10	10.5	11.2	9	17	17	44
T40-12	13.2	11.2	9	18	17	44
T50-6	6.4	12.5	9.5	18	20	45
T50-8	8.3	12.5	9.5	18	20	45
T50-10	10.5	12.5	9.5	18	20	49
T50-12	13.2	12.5	9.5	18	20	49
T50-14	14.5	12.5	9.5	22	20	54
T50-16	16.5	14	9.5	25	23	62
T50-20	21	14	9.5	30	23	68
T70-8	8.3	15	11.5	22	20	47.6
T70-10	10.5	15	11.5	22	20	51.6
T70-12	13.2	15	11.5	22	20	51.6
T70-14	14.5	15	11.5	22	20	62.6
T70-16	16.5	15	11.5	22	20	62.6
T70-20	21	15	11.5	30	20	62.6
T95-8	8.3	17	13.5	25	22	55.8
T95-10	10.5	17	13.5	25	22	55.8
T95-12	13.2	17	13.5	25	22	55.8
T95-14	14.5	17	13.5	25	22	66.8
T95-16	16.5	17	13.5	25	22	66.8
T95-20	21	17	13.5	28	22	66.8
T120-10	10.5	20	15.6	29	27	71.5
T120-12	13.2	20	15.6	29	27	71.5
T120-14	14.5	20	15.6	29	27	71.5
T120-16	16.5	20	15.6	29	27	71.5
T120-20	21	20	15.6	29	27	71.5
T150-10	10.5	21	16.5	30.6	32	78
T150-12	13.2	21	16.5	30.6	32	78
T150-14	14.5	21	16.5	30.6	32	78
T150-16	16.5	21	16.5	30.6	32	78
T150-20	21	21	16.5	30.6	32	78
T185-10	10.5	23.6	18.4	34	34	84
T185-12	13.2	23.6	18.4	34	34	84
T185-14	14.5	23.6	18.4	34	34	84
T185-16	16.5	23.6	18.4	34	34	84
T185-20	21	23.6	18.4	34	34	84
T240-10	10.5	26.4	21.2	38.5	37	90
T240-12	13.2	26.4	21.2	38.5	37	90
T240-14	14.5	26.4	21.2	38.5	37	90
T240-16	16.5	26.4	21.2	38.5	37	90
T240-20	21	26.4	21.2	38.5	37	90
T300-10	10.5	28.6	23.4	42	40	96
T300-12	13.2	28.6	23.4	42	40	96
T300-14	14.5	28.6	23.4	42	40	96
T300-16	16.5	28.6	23.4	42	40	96
T300-20	21	28.6	23.4	42	40	96
T400-10	10.5	32.8	26.8	48	37	104.7
T400-12	13.2	32.8	26.8	48	37	104.7
T400-14	14.5	32.8	26.8	48	37	104.7
T400-16	16.5	32.8	26.8	48	37	104.7
T400-20	21	32.8	26.8	48	37	104.7
T500-10	10.5	38.4	29.8	55	46.5	115.5
T500-12	13.2	38.4	29.8	55	46.5	115.5
T500-14	14.5	38.4	29.8	55	46.5	115.5
T500-16	16.5	38.4	29.8	55	46.5	115.5
T500-20	21	38.4	29.8	55	46.5	115.5
T630-10	10.5	44.7	34.5	64	50	133.1
T630-12	13.2	44.7	34.5	64	50	133.1
T630-14	14.5	44.7	34.5	64	50	133.1
T630-16	16.5	44.7	34.5	64	50	133.1
T630-20	21	44.7	34.5	64	50	133.1
