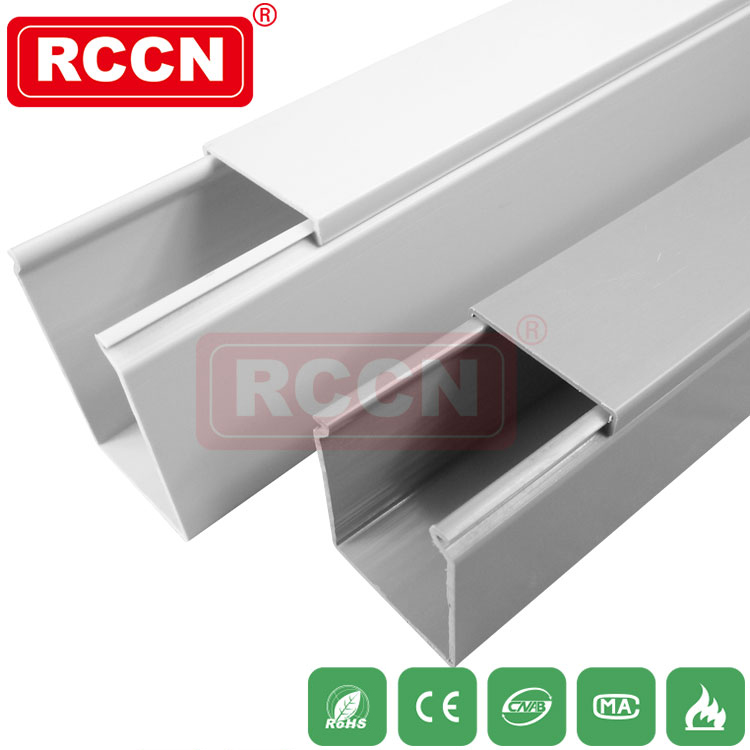

日成密封無鹵線槽 SDRHF

特點:全密封無孔,日成線槽

產品材質:采用無鹵素硬質料制成,環保無污染,不含鉛等有毒物。
產品認證:原料UL.歐洲CE,歐洲環保RoHS,REACH。
防火等級:UL94V-0,低煙無鹵,遇火不燃燒,防火性及絕緣性特佳。
產品構造:由槽底及槽蓋組成。
顏 ? ? ?色:灰色.乳白色.藍色
工作溫度 :靜態-40°C持續高溫至110°C。
*無鹵原料采用PC+ABS制成。
產品用途：半導體制造,造船,核能發電廠，石油平臺，電梯，機車及地鐵，風能發電平臺，溫度及環境惡劣等行業。
更多選擇:可按需求生產定制其它長度.

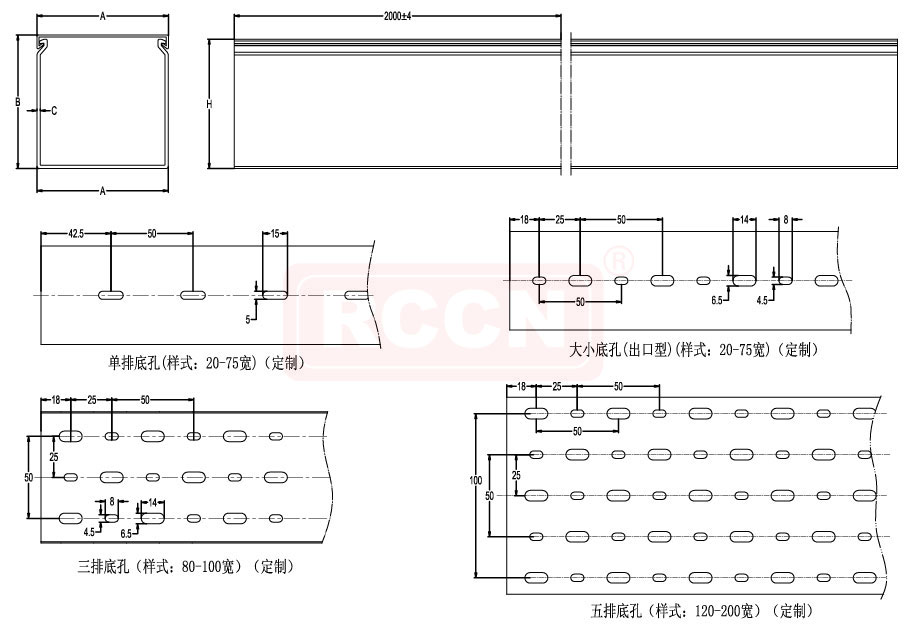

無鹵線槽以槽蓋槽底組合后外部寬高為準
表格如沒有你所需要的規格，我司可以開發設計供應！
推薦：灰色為常規庫存產品,其它顏色有起訂量要求。*交期待確認。
標準長度：2米/支

線槽低煙無鹵線槽線槽規格走線槽行線槽

產品規格

型號Item No.				寬高 WH	電線容量以2.0平方計算	裝箱/M
灰色Gray	白色White	藍色Blue	黑色Black	寬高 WH	電線容量以2.0平方計算	裝箱/M
SDR1616/HF	SDR1616W/HF	SDR1616E/HF	SDR1616B/HF	16*16	3~10pcs	300M
*SDR2516/HF	SDR2516W/HF	SDR2516E/HF	SDR2516B/HF	25*16	5~15pcs	240M
*SDR4016/HF	SDR4016W/HF	SDR4016E/HF	SDR4016B/HF	40*16	15~30pcs	200M
SDR1520/HF	SDR1520W/HF	SDR1520E/HF	SDR1520B/HF	15*20	8~12pcs	260M
SDR2020/HF	SDR2020W/HF	SDR2020E/HF	SDR2020B/HF	20*20	10~20pcs	240M
SDR4020/HF	SDR4020W/HF	SDR4020E/HF	SDR4020B/HF	40*20	20-30pcs	140M
SDR1525/HF	SDR1525W/HF	SDR1525E/HF	SDR1525B/HF	15*25	5~15pcs	260M
SDR2025/HF	SDR2025W/HF	SDR2025E/HF	SDR2025B/HF	20*25	5~15pcs	200M
SDR2525/HF	SDR2525W/HF	SDR2525E/HF	SDR2525B/HF	25*25	10~25pcs	200M
SDR3025/HF	SDR3025W/HF	SDR3025E/HF	SDR3025B/HF	30*25	12~28pcs	160M
*SDR4025/HF	SDR4025W/HF	SDR4025E/HF	SDR4025B/HF	40*25	20~25pcs	120M
*SDR5025/HF	SDR5025W/HF	SDR5025E/HF	SDR5025B/HF	50*25	20~25pcs	100M
SDR1530/HF	SDR1530W/HF	SDR1530E/HF	SDR1530B/HF	15*30	8~15pcs	200M
SDR2030/HF	SDR2030W/HF	SDR2030E/HF	SDR2030B/HF	20*30	25~35pcs	180M
SDR2530/HF	SDR2530W/HF	SDR2530E/HF	SDR2530B/HF	25*30	25~35pcs	160M
SDR3030/HF	SDR3030W/HF	SDR3030E/HF	SDR3030B/HF	30*30	25~35pcs	140M
SDR4030/HF	SDR4030W/HF	SDR4030E/HF	SDR4030B/HF	40*30	30~40pcs	100M
SDR5030/HF	GDR5030W/HF	GDR5030E/HF	GDR5030B/HF	50*30	40-50pcs	80M
SDR6030/HF	GDR6030W/HF	GDR6030E/HF	GDR6030B/HF	60*30	50-60pcs	60M
SDR2233/HF	SDR2233W/HF	SDR2233E/HF	SDR2233B/HF	22*33	15~25pcs	180M
SDR3333/HF	SDR3333W/HF	SDR3333E/HF	SDR3333B/HF	33*33	30~40pcs	160M
SDR2035/HF	SDR2035W/HF	SDR2035E/HF	SDR2035B/HF	20*35	30~40pcs	100M
SDR3535/HF	SDR3535W/HF	SDR3535E/HF	SDR3535B/HF	35*35	35~45pcs	112M
SDR5035/HF	SDR5035W/HF	SDR5035E/HF	SDR5035B/HF	50*35	40~60pcs	88M
*SDR2040/HF	SDR2040W/HF	SDR2040E/HF	SDR2040B/HF	20*40	20~25pcs	110M
SDR2540/HF	SDR2540W/HF	SDR2540E/HF	SDR2540B/HF	25*40	20~25pcs	112M
SDR3540/HF	SDR3540W/HF	SDR3540E/HF	SDR3540B/HF	35*40	50-60pcs	100M
SDR4040/HF	SDR4040W/HF	SDR4040E/HF	SDR4040B/HF	40*40	60~70pcs	100M
SDR6040/HF	SDR6040W/HF	SDR6040E/HF	SDR6040B/HF	60*40	100~115pcs	68M
SDR8040/HF	SDR8040W/HF	SDR8040E/HF	SDR8040B/HF	80*40	120~135pcs	48M
SDR10040/HF	SDR10040W/HF	SDR10040E/HF	SDR10040B/HF	100*40	120~135pcs	32M
SDR12040/HF	SDR12040W/HF	SDR12040E/HF	SDR12040B/HF	120*40	140-165pcs	/
SDR2545/HF	SDR2545W/HF	SDR2545E/HF	SDR2545B/HF	25*45	20~25pcs	104M
SDR3345/HF	SDR3345W/HF	SDR3345E/HF	SDR3345B/HF	33*45	40~55pcs	108M
SDR4545/HF	SDR4545W/HF	SDR4545E/HF	SDR4545B/HF	45*45	60~70pcs	72M
SDR6545/HF	SDR6545W/HF	SDR6545E/HF	SDR6545B/HF	65*45	110~120pcs	56M
SDR2050/HF	SDR2050W/HF	SDR2050E/HF	SDR2050B/HF	20*50	20~30pcs	100M
SDR2550/HF	SDR2550W/HF	SDR2550E/HF	SDR2550B/HF	25*50	20~30pcs	100M
SDR3050/HF	SDR3050W/HF	SDR3050E/HF	SDR3050B/HF	30*50	25~40pcs	84M
SDR3550/HF	SDR3550W/HF	SDR3550E/HF	SDR3550B/HF	35*50	40~60pcs	80M
SDR4050/HF	SDR4050W/HF	SDR4050E/HF	SDR4050B/HF	40*50	60~70pcs	68M
SDR4550/HF	SDR4550W/HF	SDR4550E/HF	SDR4550B/HF	45*50	70~80pcs	60M
SDR5050/HF	SDR5050W/HF	SDR5050E/HF	SDR5050B/HF	50*50	80~90pcs	60M
SDR5550/HF	SDR5550W/HF	SDR5550E/HF	SDR5550B/HF	55*50	85~95pcs	50M
SDR6050/HF	SDR6050W/HF	SDR6050E/HF	SDR6050B/HF	60*50	100~120pcs	48M
SDR7550/HF	SDR7550W/HF	SDR7550E/HF	SDR7550B/HF	75*50	140~160pcs	40M
SDR8050/HF	SDR8050W/HF	SDR8050E/HF	SDR8050B/HF	80*50	160~180pcs	40M
SDR10050/HF	SDR10050W/HF	SDR10050E/HF	SDR10050B/HF	100*50	200~250pcs	26M
SDR12555/HF	SDR12555W/HF	SDR12555E/HF	SDR12555B/HF	125*55	220~270pcs	20M
SDR2060/HF	SDR2060W/HF	SDR2060E/HF	SDR2060B/HF	20*60	5~45pcs	100M
SDR2560/HF	SDR2560W/HF	SDR2560E/HF	SDR2560B/HF	25*60	40~50pcs	100M
SDR3060/HF	SDR3060W/HF	SDR3060E/HF	SDR3060B/HF	30*60	60~80pcs	80M
*SDR3560/HF	SDR3560W/HF	SDR3560E/HF	SDR3560B/HF	35*60	65~85pcs	70M
SDR4060/HF	SDR4060W/HF	SDR4060E/HF	SDR4060B/HF	40*60	100~115pcs	60M
SDR4560/HF	SDR4560W/HF	SDR4560E/HF	SDR4560B/HF	45*60	110~125pcs	30M
SDR5060/HF	SDR5060W/HF	SDR5060E/HF	SDR5060B/HF	50*60	120~135pcs	60M
SDR6060/HF	SDR6060W/HF	SDR6060E/HF	SDR6060B/HF	60*60	120~135pcs	48M
SDR8060/HF	SDR8060W/HF	SDR8060E/HF	SDR8060B/HF	80*60	180~210pcs	36M
SDR10060/HF	SDR10060W/HF	SDR10060E/HF	SDR10060B/HF	100*60	240~290pcs	28M
SDR11060/HF	SDR11060W/HF	SDR11060E/HF	SDR11060B/HF	110*60	250~300pcs	48M
*SDR12060/HF	SDR12060W/HF	SDR12060E/HF	SDR12060B/HF	120*60	260~320pcs	48M
SDE15060/HF	SDE15060W/HF	SDE15060E/HF	SDE15060B/HF	150*60	300-360pcs	16M
SDR2565/HF	SDR2565W/HF	SDR2565E/HF	SDR2565B/HF	25*65	40~50pcs	88M
SDR3365/HF	SDR3365W/HF	SDR3365E/HF	SDR3365B/HF	33*65	40~70pcs	80M
SDR4565/HF	SDR4565W/HF	SDR4565E/HF	SDR4565B/HF	45*65	110~120pcs	52M
SDR6565/HF	SDR6565W/HF	SDR6565E/HF	SDR6565B/HF	65*65	180~200pcs	44M
SDR7265/HF	SDR7265W/HF	SDR7265E/HF	SDR7265B/HF	72*65	190~210pcs	40M
SDR2575/HF	SDR2575W/HF	SDR2575E/HF	SDR2575B/HF	25*75	140-170pcs	/
SDR3575/HF	SDR3575W/HF	SDR3575E/HF	SDR3575B/HF	35*75	160-190pcs	/
SDR5075/HF	SDR5075W/HF	SDR5075E/HF	SDR5075B/HF	50*75	180~210pcs	32M
SDR7575/HF	SDR7575W/HF	SDR7575E/HF	SDR7575B/HF	75*75	200~240pcs	24M
SDR10075/HF	SDR10075W/HF	SDR10075E/HF	SDR10075B/HF	100*75	220~260pcs	24M
SDR2580/HF	SDR2580W/HF	SDR2580E/HF	SDR2580B/HF	25*80	100~120pcs	72M
SDR3080/HF	SDR3080W/HF	SDR3080E/HF	SDR3080B/HF	30*80	110~125pcs	56M
SDR3580/HF	SDR3580W/HF	SDR3580E/HF	SDR3580B/HF	35*80	110~130pcs	56M
SDR4080/HF	SDR4080W/HF	SDR4080E/HF	SDR4080B/HF	40*80	140~160pcs	48M
SDR4580/HF	SDR4580W/HF	SDR4580E/HF	SDR4580B/HF	45*80	140~160pcs	40M
SDR5080/HF	SDR5080W/HF	SDR5080E/HF	SDR5080B/HF	50*80	160~180pcs	40M
SDR5580/HF	SDR5580W/HF	SDR5580E/HF	SDR5580B/HF	55*80	160~180pcs	32M
SDR6080/HF	SDR6080W/HF	SDR6080E/HF	SDR6080B/HF	60*80	180~210pcs	32M
SDR8080/HF	SDR8080W/HF	SDR8080E/HF	SDR8080B/HF	80*80	240~290pcs	24M
SDR10080/HF	SDR10080W/HF	SDR10080E/HF	SDR10080B/HF	100*80	260~350pcs	24M
SDR12080/HF	SDR12080W/HF	SDR12080E/HF	SDR12080B/HF	120*80	280~380pcs	16M
SDR14080/HF	SDR14080W/HF	SDR14080E/HF	SDR14080B/HF	140*80	350~450pcs	16M
SDR25100/HF	SDR25100W/HF	SDR25100E/HF	SDR25100B/HF	25*100	110~160pcs	60M
SDR33100/HF	SDR33100W/HF	SDR33100E/HF	SDR33100B/HF	33*100	130~165pcs	44M
SDR40100/HF	SDR40100W/HF	SDR40100E/HF	SDR40100B/HF	40*100	130~175pcs	40M
SDR50100/HF	SDR50100W/HF	SDR50100E/HF	SDR50100B/HF	50*100	220~250pcs	40M
SDR60100/HF	SDR60100W/HF	SDR60100E/HF	SDR60100B/HF	60*100	240~290pcs	32M
SDR70100/HF	SDR70100W/HF	SDR70100E/HF	SDR70100B/HF	70*100	240~290pcs	32M
SDR75100/HF	SDR75100W/HF	SDR75100E/HF	SDR75100B/HF	75*100	260~350pcs	24M
SDR80100/HF	SDR80100W/HF	SDR80100E/HF	SDR80100B/HF	80*100	260~350pcs	24M
SDR100100/HF	SDR100100W/HF	SDR100100E/HF	SDR100100B/HF	100*100	300~400pcs	24M
SDR120100/HF	SDR120100W/HF	SDR120100E/HF	SDR120100B/HF	120*100	350~450pcs	16M
SDR150100/HF	SDR150100W/HF	SDR150100E/HF	SDR150100B/HF	150*100	400~650pcs	16M
SDR100130/HF	SDR100130W/HF	SDR100130E/HF	SDR100130B/HF	100*130	350~450pcs	16M
*SDR200100/HF	SDR200100W/HF	SDR200100E/HF	SDR200100B/HF	200*100	600~800pcs	12M
*SDR200150/HF	*SDR200150W/HF	*SDR200150E/HF	*SDR200150B/HF	200*150	900~1200pcs	10M
