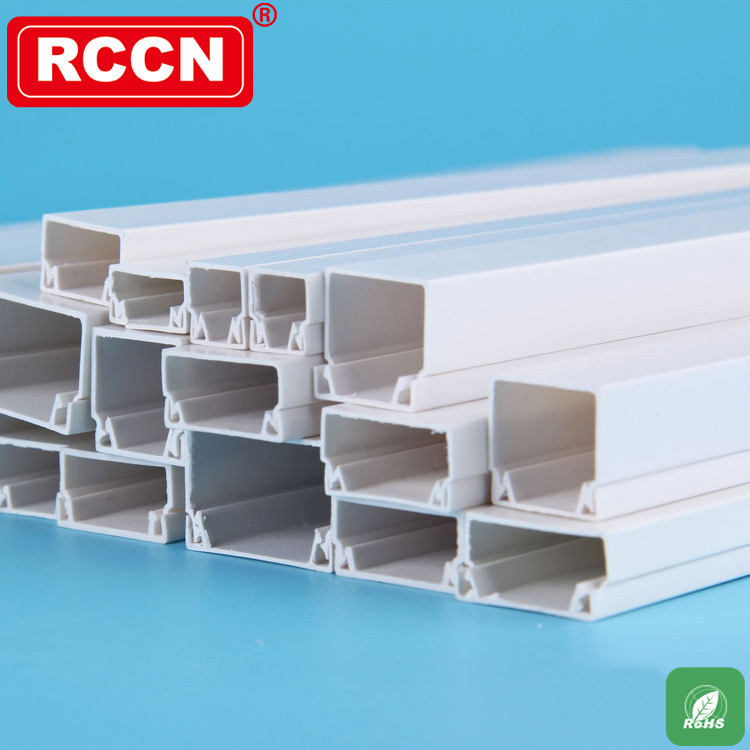

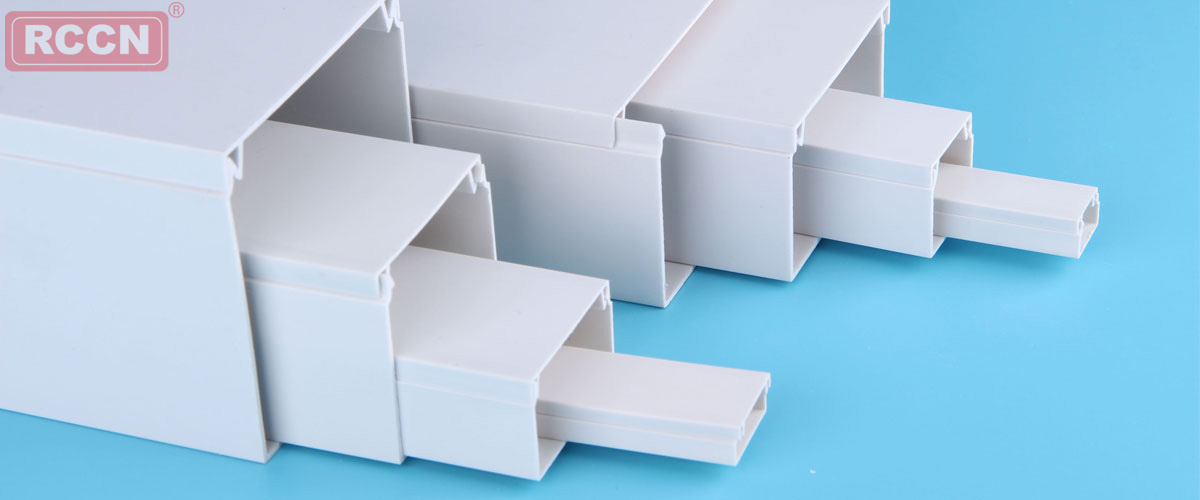

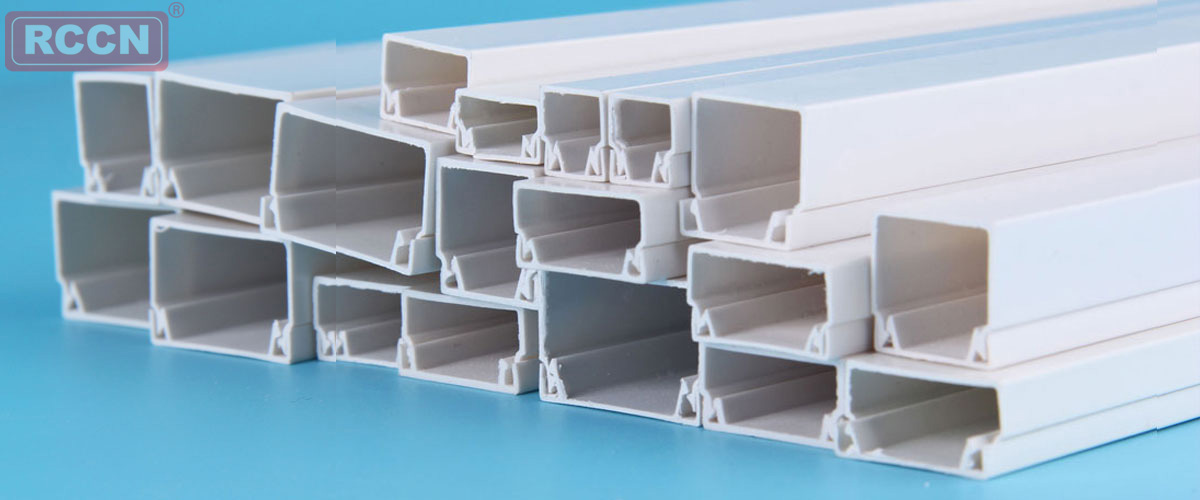

日成PZC電線槽

電纜保護線槽,PVC塑料明裝線槽

產品材質：全新硬質料PVC料制成.

防火等級：FV-0級、FH-1。

工作溫度：靜態-40℃至85℃

顏色：白色、其它顏色可定制（有起訂量要求）

產品特性：1.反扣式槽蓋與槽體設計組合後絕不脫落,且接合面平滑,不割傷手及擦損附近配線。

? ? ? ? ? ? ? ?2.配線槽65°C內不易斷裂,變形,變色,裝配省時便利。

PVC塑料明裝線槽室內裝潢配線槽日成線槽

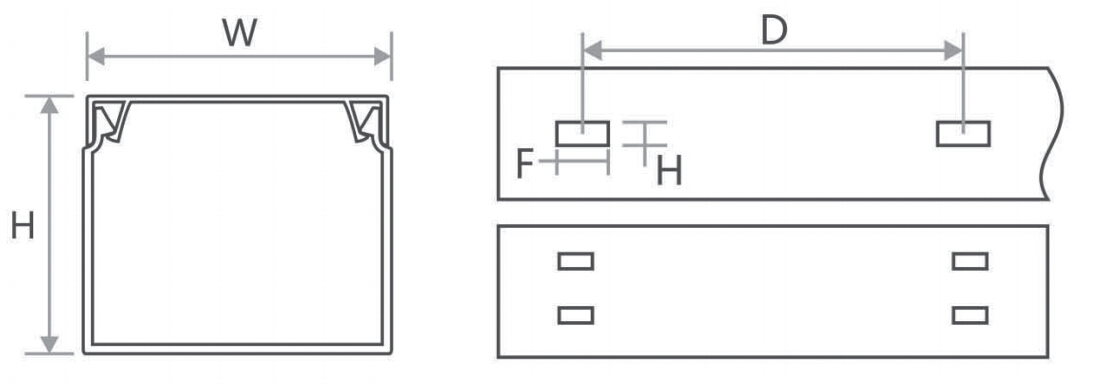

產品規格

型號 Item No.	寬*高 WXH	厚度 Thickness	包裝（條/扎） Packing(pca/bag)
型號 Item No.	寬*高 WXH	厚度 Thickness	包裝（條/扎） Packing(pca/bag)
PZC-1010	10x10	0.6	50
PZC-1208	12X8	0.7	50
PZC-1212	12x12	0.59	50
PZC-1407	14X7	0.55	50
PZC-1510	15x10	0.5	50
PZC-1510	15x10	0.75	40
PZC-1515	15x15	0.58	40
PZC-1616	16x16	0.58	40
PZC-1616	16x16	0.63	40
PZC-1616	16x16	0.7	40
PZC-1616	16x16	0.9	40
PZC-1616	16x16	1	40
PZC-1810	18x10	0.8	50
PZC-2010	20x10	0.5	40
PZC-2010	20x10	0.6	40
PZC-2010	20x10	0.63	40
PZC-2010	20x10	0.75	40
PZC-2313	23x13	0.55	25
PZC-2313	23x13	0.63	25
PZC-2414	24x14	0.7	25
PZC-2414	24x14	0.83	25
PZC-2516B	24.5x15.5	0.6	25
PZC-2516B	24.5x15.5	0.61	25
PZC-2516B	24.5x15.5	0.63	25
PZC-2516B	24.5x15.5	0.75	25
PZC-2512	25x12	0.6	40
PZC-2516	25x16	0.53	25
PZC-2516	25x16	0.6	25
PZC-2516	25x16	0.63	25
PZC-2516	25x16	0.7	25
PZC-2516	25x16	0.75	25
PZC-2516	25x16	0.9	25
PZC-2516	25x16	1.2	25
PZC-2525	25x25	0.8	20
PZC-2525	25x25	1	20
PZC-2913	28.5x13	0.55	20
PZC-2913	28.5x13	0.65	20
PZC-2913	29x13	0.9	25
PZC-3010	30x10	0.8	25
PZC-3015	30x15	0.68	20
PZC-3015	30x15	0.76	20
PZC-3015	30x15	0.9	20
PZC-3015	30x15	1.1	20
PZC-3030	30x30	1.1	15
PZC-3616	36x16	0.7	15
PZC-3817	38x17	0.68	15
PZC-3919	39x19	0.8	15
PZC-3919	39x19	0.9	15
PZC-3919	39x19	1.15	15
PZC-3919	39x19	1.3	15
PZC-3825	38x25	1	10
PZC-4010	40x10	0.8	20
PZC-4016	40x16	0.62	15
PZC-4016	40x16	0.7	15
PZC-4016	40x16	1	15
PZC-4020	40x20	1.1	15
PZC-4025	40x25	0.68	10
PZC-4025	40x25	0.74	10
PZC-4025	40x25	0.8	10
PZC-4025	40x25	1	10
PZC-4025	40x25	1.35	10
PZC-4040	40x40	1.1	8
PZC-4040	40x40	1.3	8
PZC-5010	50x10	1.1	20
PZC-5025	50x25	0.8	8
PZC-5025	50x25	1	8
PZC-5025	50x25	1.4	8
PZC-5035	50x35	1.1	8
PZC-5050	50x50	1.1	4
PZC-5050	50x50	1.2	4
PZC-5050	50x50	1.45	4
PZC-5530	55x30	1.25	8
PZC-5922	59x22	0.8	10
PZC-5922	59x22	1.1	10
PZC-6040	60x40	1.1	4
PZC-6040	60x40	1.15	4
PZC-6040	60x40	1.2	4
PZC-6040	60x40	1.35	4
PZC-6040	60x40	1.45	4
PZC-6060	60x60	1.3	2
PZC-6060	60x60	1.6	2
PZC-7550	75x50	1.1	2
PZC-7550	75x50	1.25	2
PZC-7550	75x50	1.5	2
PZC-7550	75x50	1.75	2
PZC-7550	75x50	1.9	2
PZC-7575	75x75	1.35	2
PZC-7575	75x75	1.5	2
PZC-7575	75x75	1.75	2
PZC-7631	76x31	1.3	4
PZC-8040	80x40	1.25	3
PZC-8040	80x40	1.55	3
PZC-8050	80x50	1.25	2
PZC-8050	80x50	1.65	2
PZC-8060	80x60	1.45	2
PZC-8080	80x80	1.65	1
PZC-10027	100x27	1.1	5
PZC-10040	100x40	1.4	3
PZC-10040	100x40	1.55	3
PZC-10050	100x50	1.4	2
PZC-10050	100x50	1.7	2
PZC-10050	100x50	2.25	2
PZC-10060	100x60	1.65	2
PZC-10075	100x75	1.7	1
PZC-100100	100x100	1.65	1
PZC-100100	100x100	2	1
PZC-100100	100x100	2.25	1
PZC-12080	120x80	2	1
PZC-150100	150x100	2	1
PZC-200100	200x100	2.45	1
