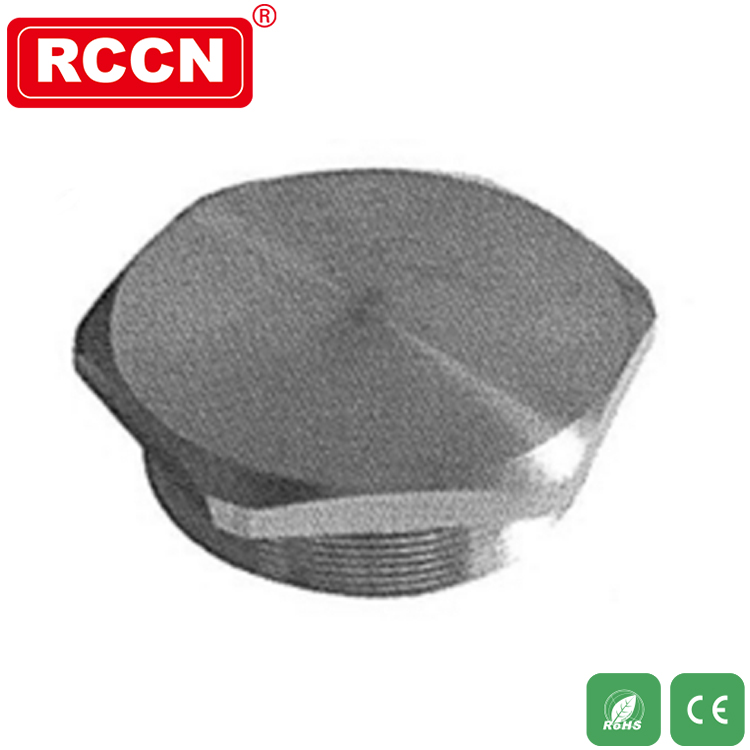

六角形不銹鋼悶蓋 MSPS

系列：MSPS

材 ? ?料：不銹鋼304 ,密封件材料為改性橡膠

防護等級：IP68

不銹鋼悶蓋不銹鋼旋轉塞頭金屬悶蓋

產品規格

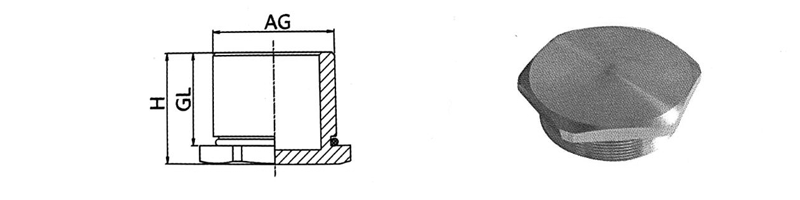

型號 Item?No	螺紋規格 ?thread? dimension	螺紋外徑 ?AG? mm	扳手尺寸? wrench?size? mm	螺紋長度 ?GL? mm	總長度 ?H? mm	包裝 Std.Pkg? PCS
MSPS-M?M螺紋?Metric?Thread
MSPS-M10	M10x1.0	10	12	6	9	50
MSPS-M12	M12x1.5	12	14	6	9	50
MSPS-M16	M16x1.5	16	18	7	10	50
MSPS-M18	M18x1.5	18	20	7	10.5	50
MSPS-M20	M20x1.5	20	22	7	10.5	50
MSPS-M22	M22x1.5	22	24	7	10.5	50
MSPS-M24	M24x1.5	24	27	7	10.5	50
MSPS-M25	M25x1.5	25	28	7	10.5	25
MSPS-M27	M27x2.0	27	30	8	12	25
MSPS-M30	M30x2.0	30	34	8	12	25
MSPS-M32	M32xl.5	32	36	8	12	20
MSPS-M33	M33x2.0	33	36	8	12	20
MSPS-M36	M36x2.0	36	40	8	12	20
MSPS-M40	M40x1.5	40	45	9	14	20
MSPS-M48	M48x2.0	48	52	9	14	10
MSPS-M50	M50x1.5	50	55	9	14	10
MSPS-M56	M56x2.0	56	60	9	15	10
MSPS-M63	M63x1.5	63	70	10	16	5
MSPS-M64	M64x2.0	64	70	10	16	5
MSPS-PG?螺紋?PG?Thread
MSPS-PG07	PG7	12.5	15	6	9	50
MSPS-PG09	PG9	15.2	18	7	10	50
MSPS-PG11	PG11	18.6	21	7	10.5	50
MSPS-PG13.5	PG13.5	20.4	23	7	10.5	50
MSPS-PG16	PG16	22.5	26	7	10.5	50
MSPS-PG21	PG21	28.3	32	7	11	25
MSPS-PG29	PG29	37	40	8	12	20
MSPS-PG36	PG36	47	50	9	14	10
MSPS-PG42	PG42	54	58	9	14	10
MSPS-PG48	PG48	59.3	65	10	16	5
MSPS-G?管螺紋?G?Thread
MSPS-G3/8	G3/8"	16.662	8	20	11.5	100
MSPS-G1/2	Gl/2"	20.995	8	24	11.5	100
MSPS-G3/4	G3/4"	26.441	8	30	12	100
MSPS-G1	G1"	33.249	9	38	13	100
MSPS-G1?1/4	G1?1/4"	41.91	10	50	15	100
MSPS-G1?1/2	G1?1/2"	47.803	10	52	15	50
MSPS-G2	G2"	59.614	11	65	17	50
MSPS-G2?1/2	G2?1/2"	75.184	11	80	17	25
MSPS-G3	G3"	87.884	11	95	18.5	15
MSPS-NPT?椎管螺紋?NPT?Thread
MSPS-NPT3/8	NPT3/8"	17.055	11	20	14.5	100
MSPS-NPT1/2	NPT1/2"	21.223	13	23	16.5	100
MSPS-NPT3/4	NPT3/4"	26.568	13	30	17	50
MSPS-NPT1	NPT1"	33.228	16	38	20	50
MSPS-NPT1 1/4	NPT1 1/4"	41.988	16	50	21	25
MSPS-NPT1 1/2	NPT1 1/2"	48.054	18	52	23	25
MSPS-NPT2	NPT2"	60.092	18	65	24	15
MSPS-NPT2 1/2	NPT2 1/2"	72.699	22	75	28	10
MSPS-NPT3	NPT3"	88.608	22	95	28	10
