官方商城材質：不銹鋼304 ,密封件材料為改性橡膠
防護等級：IP66
溫度范圍：-40℃至100℃ ,短時間可以達到120℃
防爆等級：Ex d IIC Gb/Ex e IIGB
上海日成電子有限公司 RCCN - 為顧客創造價值 - ISO9001/IATF16949/ISO/TS22163
選擇語言 Language
材質：不銹鋼304 ,密封件材料為改性橡膠
防護等級：IP66
溫度范圍：-40℃至100℃ ,短時間可以達到120℃
防爆等級：Ex d IIC Gb/Ex e IIGB

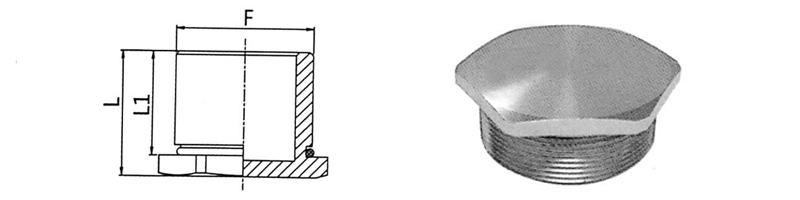

型號 Item No | 外螺紋F Dimension | 總長L mm | 外螺紋長L1 mm | 扳手尺寸S mm |
| DPM-Exd-M 公制螺紋 Metric Thread | ||||
| DPM-Exd-M10 | M10x1.0 | 15 | 12 | 14 |
| DPM-Exd-M12 | M12x1.5 | 18 | 15 | 15 |
| DPM-Exd-M16 | M16x1.5 | 18 | 15 | 18 |
| DPM-Exd-M18 | M18x1.5 | 18 | 15 | 20 |
| DPM-Exd-M20 | M20x1.5 | 18 | 15 | 22 |
| DPM-Exd-M22 | M22x1.5 | 19 | 16 | 24 |
| DPM-Exd-M24 | M24x1.5 | 19 | 16 | 27 |
| DPM-Exd-M25 | M25x1.5 | 19 | 16 | 28 |
| DPM-Exd-M27 | M27x2.0 | 23 | 20 | 30 |
| DPM-Exd-M30 | M30x2.0 | 23 | 20 | 34 |
| DPM-Exd-M32 | M32x1.5 | 24 | 20 | 36 |
| DPM-Exd-M33 | M33x2.0 | 24 | 20 | 36 |
| DPM-Exd-M36 | M36x2.0 | 24 | 20 | 40 |
| DPM-Exd-M40 | M40x1.5 | 26 | 20 | 45 |
| DPM-Exd-M48 | M48x2.0 | 27 | 21 | 52 |
| DPM-Exd-M50 | M50x1.5 | 28 | 21 | 55 |
| DPM-Exd-M56 | M56x2.0 | 28 | 21 | 60 |
| DPM-Exd-M63 | M63x1.5 | 28 | 21 | 70 |
| DPM-Exd-M64 | M64x2.0 | 28 | 21 | 70 |
| DPM-Exd-PG制螺紋 PG Thread | ||||
| DPM-Exd-PG07 | PG7 | 15 | 12 | 14 |
| DPM-Exd-PG09 | PG9 | 15 | 12 | 17 |
| DPM-Exd-PG11 | PG11 | 15.5 | 12 | 21 |
| DPM-Exd-PG13.5 | PG13.5 | 15.5 | 12 | 23 |
| DPM-Exd-PG16 | PG16 | 15.5 | 12 | 26 |
| DPM-Exd-PG21 | PG21 | 17 | 13 | 32 |
| DPM-Exd-PG29 | PG29 | 17.5 | 13 | 40 |
| DPM-Exd-PG36 | PG36 | 18.5 | 13 | 50 |
| DPM-Exd-PG42 | PG42 | 20 | 15 | 58 |
| DPM-Exd-PG48 | PG48 | 21 | 15 | 65 |
| DPM-Exd-G 管螺紋G Thread | ||||
| DPM-Exd-G3/8 | G3/8" | 15.5 | 12 | 20 |
| DPM-Exd-G1/2 | G1/2" | 18.5 | 15 | 24 |
| DPM-Exd-G3/4 | G3/4" | 18.5 | 15 | 30 |
| DPM-Exd-G1 | G1" | 25 | 21 | 40 |
| DPM-Exd-G11/4 | G1 1/4" | 25.5 | 21 | 50 |
| DPM-Exd-G11/2 | G1 1/2" | 26 | 21 | 52 |
| DPM-Exd-G2 | G2" | 27.5 | 22 | 65 |
| DPM-Exd-G21/2 | G2 1/2" | 28.5 | 22 | 80 |
| DPM-Exd-NPT 圓錐管螺紋 NPT Thread | ||||
| DPM-Exd-NPT3/8 | NPT 3/8" | 15.5 | 12 | 20 |
| DPM-Exd-NPT1/2 | NPT 1/2" | 18.5 | 15 | 23 |
| DPM-Exd-NPT3/4 | NPT 3/4" | 19 | 15 | 30 |
| DPM-Exd-NPT1 | NPT 1" | 24 | 20 | 36 |
| DPM-Exd-NPT11/4 | NPT 1 1/4" | 24.5 | 20 | 50 |
| DPM-Exd-NPT11/2 | NPT 1 1/2" | 25 | 20 | 52 |
| DPM-Exd-NPT2 | NPT 2" | 25.5 | 20 | 65 |
| DPM-Exd-NPT21/2 | NPT 2 1/2" | 34 | 27 | 80 |
