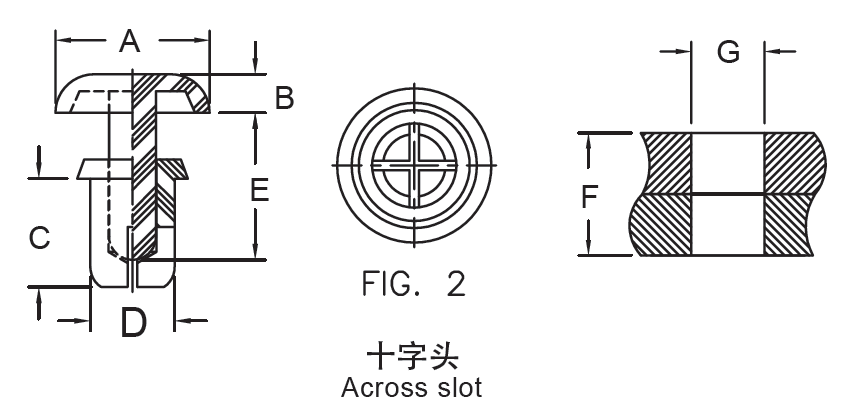

Part No. 型號 | Hole Dia 適用孔徑 | Panel Thick 適用板厚 | A | B | C | D | E | Fig.No. 附圖編號 |
| SRHR3035 | 3.1 | 1.0-2.0 | 6.4 | 1.6 | 3.5 | 3.0 | 5.1 | No.1 |
| SRHR3045 | 3.1 | 2.0-3.0 | 6.4 | 1.6 | 4.5 | 3.0 | 5.2 | |
| SRHR3055 | 3.1 | 3.0-4.0 | 6.4 | 1.6 | 5.5 | 3.0 | 6.1 | No.2 |
| SRHR3065 | 3.1 | 4.0-5.0 | 6.0 | 1.6 | 6.5 | 3.0 | 6.1 | |
| SRHR3080 | 3.1 | 5.5-6.5 | 6.0 | 1.6 | 8.0 | 3.0 | 7.1 | |
| SRHR3535 | 3.6 | 1.2-2.1 | 6.4 | 1.6 | 3.5 | 3.5 | 5.1 | |
| SRHR3545 | 3.6 | 2.2-3.1 | 6.4 | 1.6 | 4.5 | 3.5 | 6.1 | |
| SRHR3555 | 3.6 | 3.2-4.1 | 6.4 | 1.6 | 5.5 | 4.0 | 7.1 | |
| SRHR4050 | 3.6 | 2.5-3.5 | 8.0 | 1.6 | 5.0 | 4.0 | 7.1 | |
| SRHR4060 | 3.6 | 3.5-4.5 | 8.0 | 1.6 | 6.0 | 4.0 | 7.1 | |
| SRHR4070 | 4.1 | 4.5-5.5 | 8.0 | 1.6 | 7.0 | 4.0 | 9.0 | |
| SRHR4080 | 4.1 | 5.5-6.5 | 8.0 | 1.6 | 8.0 | 4.0 | 9.0 | |
SRHR40100 | 4.1 | 7.5-8.5 | 8.0 | 1.6 | 10.0 | 4.0 | 11.0 |
?
