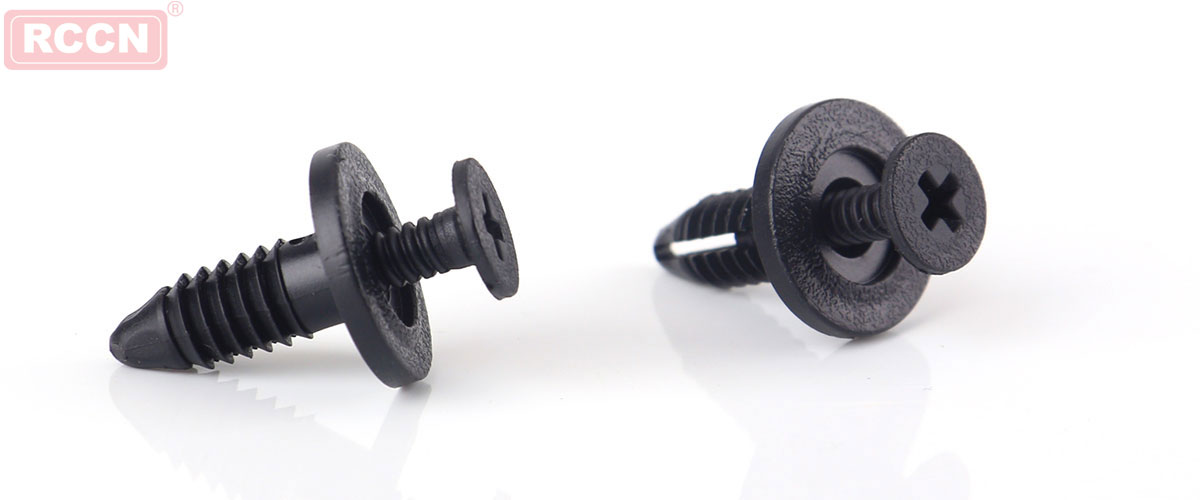

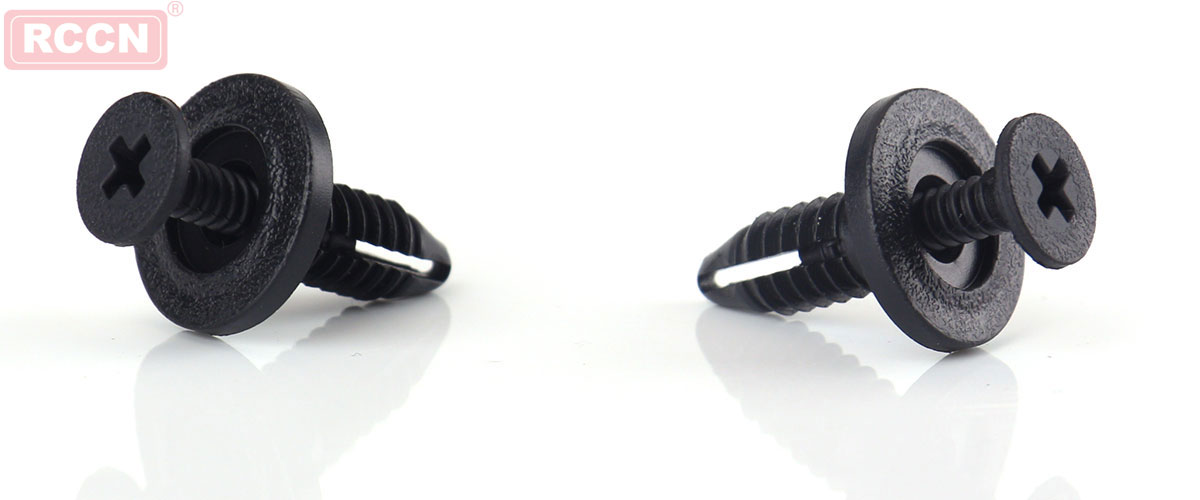

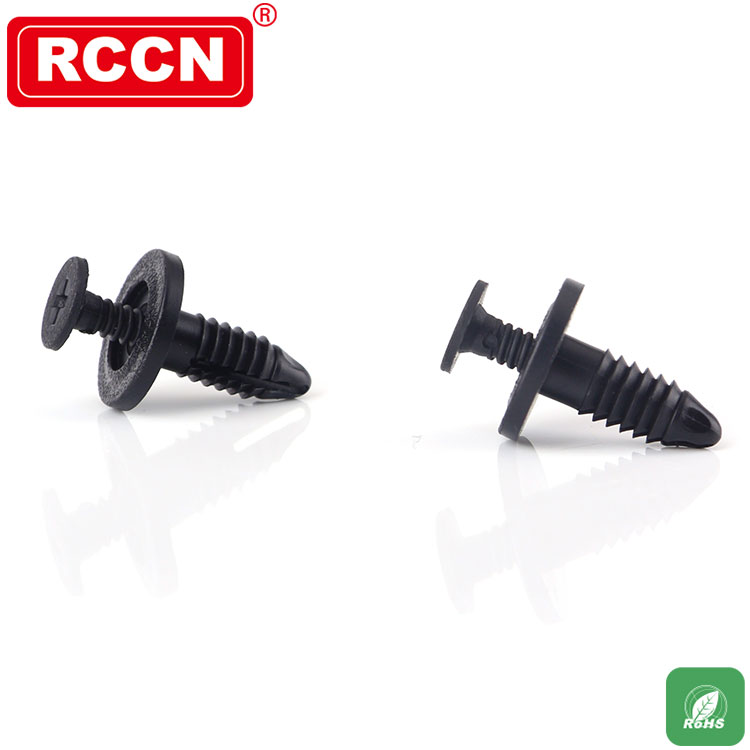

日成閉口旋轉尼龍鉚釘 SR

材質:UL合格之NYLON66,防火等級94V-2，不易老化.
用途:PC板及機板之固定，取代螺絲，不需工具即可完成裝配.
特點:容易固定.
用法:先將機板及被固定板鉆孔,再將本產品塞入,即可使兩板相線合.
板厚:以H長度小5mm為準。
開孔:建議表格孔徑負公差0.2-1mm開孔。

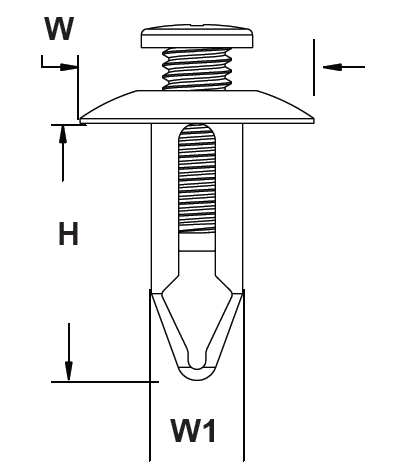

型號 Item No.	頭部 W	孔徑 W1	長度 H	包裝 pcs
SR5-506	10.9	5.8	17.5	100pcs
SR6-614	17.6	6.3	19.0	100pcs
SR6-169	18	6.0	10.0	100pcs
SR6-509	25.4	6.3	17.5	100pcs
SR6-507	17.8	6.3	17.5	100pcs
SR6-334	12.0	6.0	17.0	100pcs
SR6-46	17.5	6.3	22.4	100pcs
SR6-681	25.4	6.3	25.4	100pcs
SR6-181	13.7	6.0	16.5	100pcs
SR6-240	13	6.0	20.0	100pcs
SR6-253	11	6.0	4.0	100pcs
SR6-956	18.4	6.5	25.0	100pcs
SR7-395	17	7.0	10.0	100pcs
SR7-321	22.2	7.2	20.7	100pcs
SR7-512	14.8	7.9	20.3	100pcs
SR8-573	20	8.0	20	100pcs
SR8-109	19.2	8.0	19.2	100pcs
SR8-339	16	8.0	21.0	100pcs
SR8-338	20	8.0	22.0	100pcs
SR8-341	18	8.0	18.0	100pcs
SR8-122	18.1	8.0	21.6	100pcs
SR9-111	15	9.0	26.8	100pcs
SR9-110	18.1	9.0	24.7	100pcs
SR9-666	20	9.0	26.0	100pcs
SR10-513	21.6	10.4	25.4	100pcs
SR10-116	20	10.0	23.3	100pcs
SR10-115	20	10.0	28.3	100pcs
SR12-544	21	12.0	25	100pcs
SR8-248	11	8.0	10.0	100pcs
SR8-118	19.6	8.0	14.4	100pcs
SR8-88	20.2	8.0	8.7	100pcs
SR8-107	13.6	8.0	9.1	100pcs
SR8-566	18	8.0	14.0	100pcs
SR8-541	20	8.0	14.0	100pcs
SR8-633	18	8.0	16.0	100pcs
SR8-649	18	8.0	15.0	100pcs
SR8-121	17.7	8.0	21.0	100pcs
SR8-351	18	8.0	12.5	100pcs
SR9-145	15	9.0	11.8	100pcs
SR9-680	18	9.0	12.0	100pcs
SR9-641	18	9.0	15.0	100pcs
SR9-611	18	9.0	28.0	100pcs
SR9-354	20	9.7	20	100pcs
SR9-686	18	9.0	22.0	100pcs
SR10-634	20	10	13	100pcs
SR10-89	18	10	15	100pcs
SR10-141	19	10	21.2	100pcs
SR12-149	25.4	12.7	22.7	100pcs
