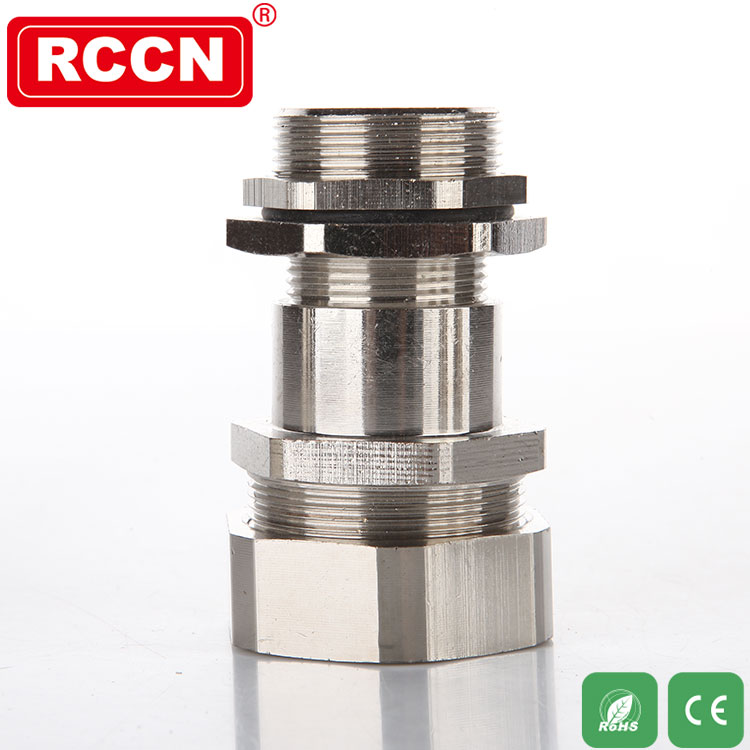

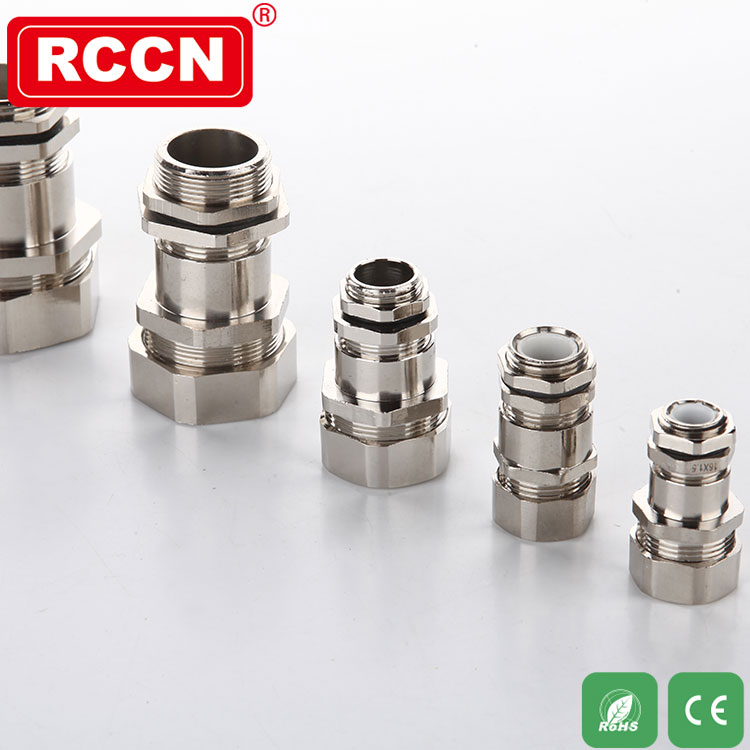

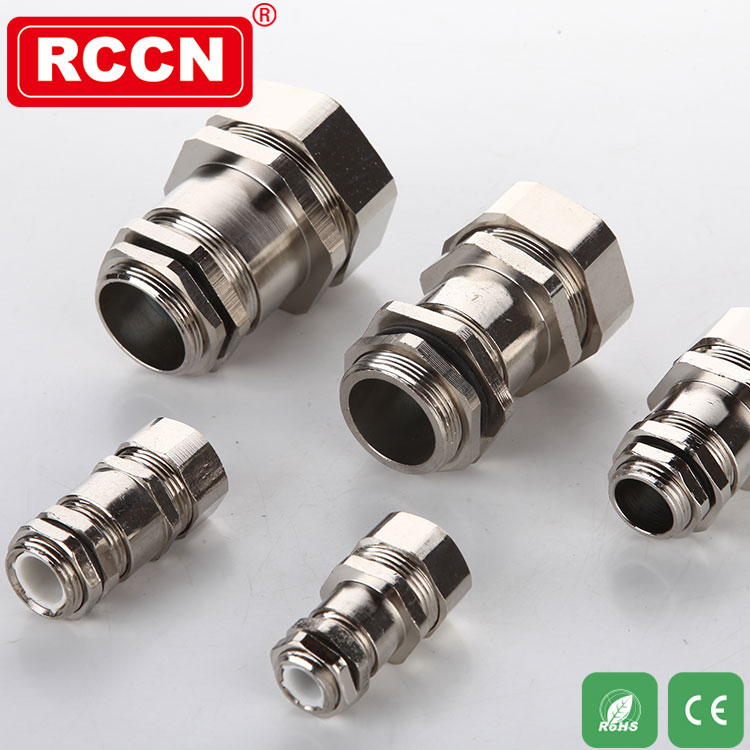

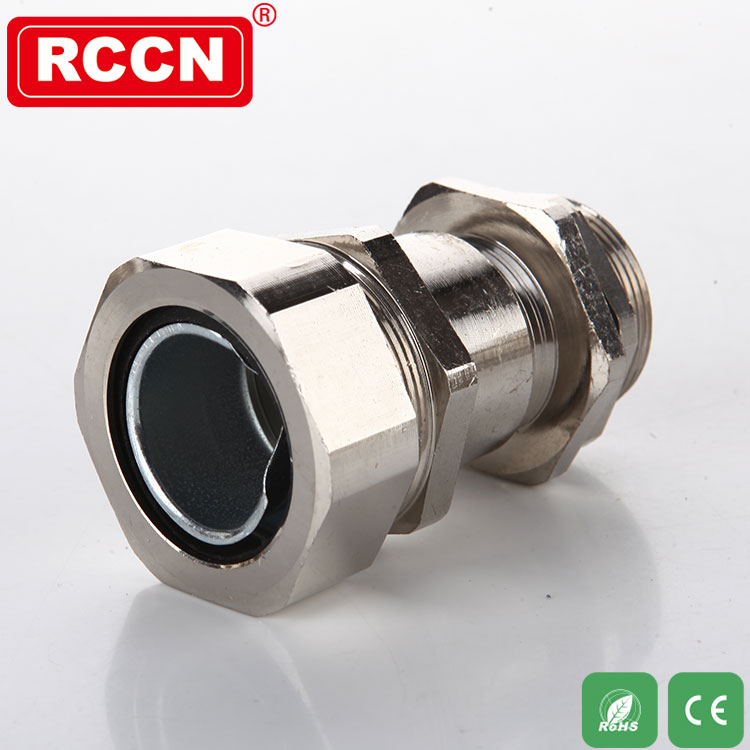

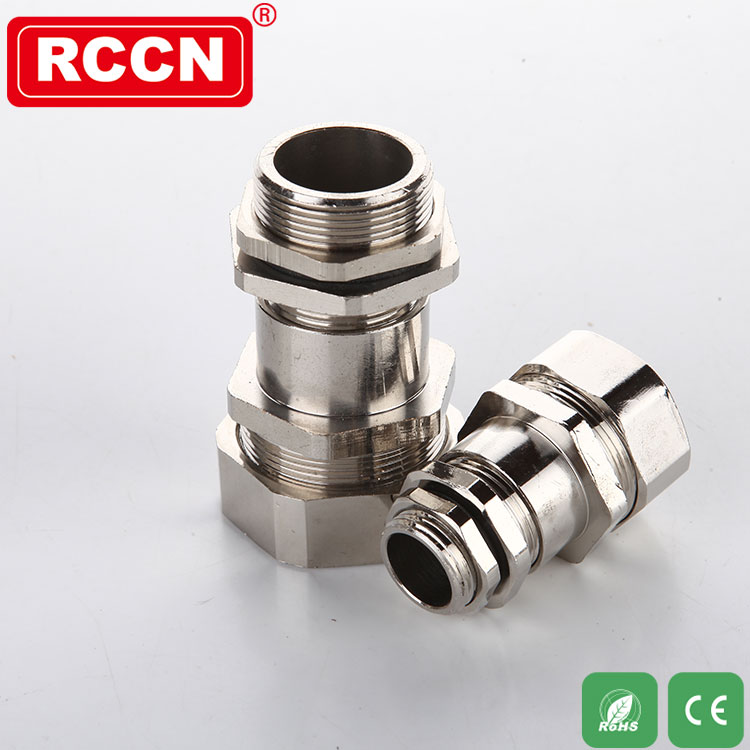

日成金屬軟管防水接頭 NBL

金屬軟管防水接頭,金屬軟管防水接頭

螺牙規格:管螺紋G/PF牙,公制螺紋Metric,德制螺紋PG
產品材質:A.C.F I部位均采用鋅合金材質.
B.E.H采用丁腈橡膠(NBR) 制成.G為鐵皮制成.
產品認證:歐洲CE,歐洲環保RoHS
顏色種類:金屬色
防護等級:IP67, 如需IP68需配套日成含膠管SCM二次保護接頭.
工作溫度:-40°C至100°C,瞬間可耐熱達120°C.
產品特性: 1.外型美觀,結構緊密,強度更高.
2.軟管護套設計與軟管相扣接緊之設計,配合迫緊頭
裝配省時便利,抗拉力特強,
3.可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及
一般溶劑.
4.除以下標準規格外,可另按需求任意變動大小及螺
紋標準.

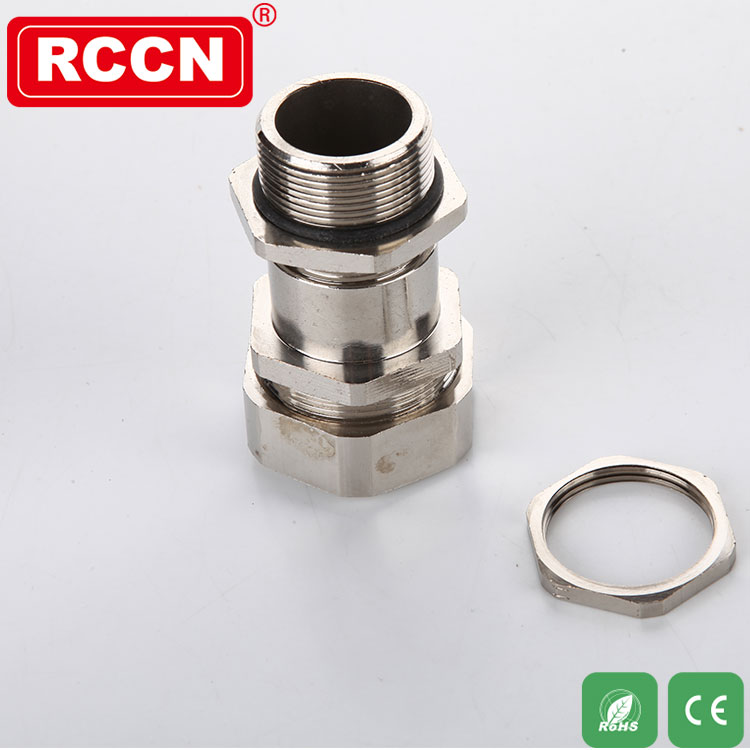

備注:成品均配帶螺母A及防水墊片B,可定制特殊規格不同
的螺紋和配套和管.

金屬軟管防水接頭金屬軟管防水接頭

產品規格

系列	型號	品號	單位	數量
NBL型金屬軟管防水接頭	NBL-03M(M14*1.5,4-8,Φ10)	1300801500087	PCS	75
NBL型金屬軟管防水接頭	NBL-06M(M25*1.5,11-16,Φ20)	1300801500012	PCS	33
NBL型金屬軟管防水接頭	NBL-06M(M25*1.5,8-12,Φ20)(R26)	1300801500149	PCS	50
NBL型金屬軟管防水接頭	NBL-08M(M32*1.5,15-22,Φ25)	1300801500018	PCS	150
NBL型金屬軟管防水接頭	NBL-08M(M32*1.5,13-18,Φ25)	1300801500017	PCS	55
NBL型金屬軟管防水接頭	NBL-10M(M40*1.5,18-25,Φ32)	1300801500025	PCS	176
NBL型金屬軟管防水接頭	NBL-12M(M50*1.5,26-32,Φ38)	1300801500029	PCS	25
NBL型金屬軟管防水接頭	NBL-04G(G3/8,6-10,Φ13)(R26)	1300801500150	PCS	88
NBL型金屬軟管防水接頭	NBL-04G(G3/8，4-8，φ13)	1300801500086	PCS	20
NBL型金屬軟管防水接頭	NBL-06G(G3/4,13-18,Φ20)	1300801500015	PCS	7
NBL型金屬軟管防水接頭	NBL-08G(G1,15-21,Φ25)	1300801500016	PCS	94
NBL型金屬軟管防水接頭	NBL-04P(PG11,6-10,Φ13)	1300801500037	PCS	192
NBL型金屬軟管防水接頭	NBL-05P(PG13.5,8-12,Φ16)	1300801500009	PCS	165
NBL型金屬軟管防水接頭	NBL-08P(PG29,18-25,φ25)	1300801500091	PCS	10
NBL型金屬軟管防水接頭	NBL-10P(PG29,18-25，Φ32)	1300801500089	PCS	42
NBL型金屬軟管防水接頭	NBLS-04M(M16×1.5 6-10 φ13)	1300803100001	PCS	98
NBL型金屬軟管防水接頭	NBLS-05M(M20×1.5 10-14 φ16)	1300803100002	PCS	80
NBL型金屬軟管防水接頭	NBLS-06M(M25×1.5 11-16 φ20)	1300803100003	PCS	88
NBL型金屬軟管防水接頭	NBLS-08M(M32×1.5 15-22 φ25)	1300803100004	PCS	90

規格參數

型號Item No.	螺牙標準 Thread G/M/PG	適用電纜	配套日成金屬軟管MCR Suitable RCCN metal flexible conduit MCR			螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1
型號Item No.	螺牙標準 Thread G/M/PG	適用電纜	對應型號 Corresponding item no	公制 Metric ?	英制 British	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1
公制螺牙/Metric thread NBL-M
NBL-03M	M16*1.5	6-10	MCR-03	10	1/4	M16*1.5	8
NBL-04M	M16*1.5	6-10	MCR-04	13	3/8"	M16*1.5	11
NBL-05M	M20*1.5	8-12	MCR-05	16	1/2"	M20*1.5	11
NBL-06M	M25*1.5	10-14	MCR-06	20	3/4"	M25*1.5	14
NBL-08M	M32*1.5	15-22	MCR-08	25	1"	M32*1.5	15
NBL-10M	M40*1.5	18-25	MCR-10	32	11/4"	M40*1.5	15
NBL-12M	M50*1.5	26-32	MCR-12	38	1 1/2	M50*1.5	16
NBL-16M	M63*1.5	37-44	MCR-16	51	2"	M63*1.5	18
NBL-20M	M76*2	42-52	MCR-20	64	2 1/2"	M76*2	22
NBL-24M	M88*2	55-62	MCR-24	80	3"	M88*2	22
NBL-32M	M114*2	78-84	MCR-32	100	4"	M114*2	24
德制螺紋/Metric thread NBL-P
NBL-03P	PG9	4-8	MCR-03	10	1/4"	15.2	8
NBL-04P	PG11	6-10	MCR-04	13	3/8"	18.6	9
NBL-05P	PG13.5	8-12	MCR-05	16	1/2"	20.4	11
NBL-06P	PG21	13-18	MCR-06	20	3/4"	28.3	14
NBL-08P	PG29	18-25	MCR-08	25	1"	37.0	15
NBL-10P	PG29	18-25	MCR-10	32	1 1/4"	37.0	15
NBL-12P	PG36	26-32	MCR-12	38	11/2"	47.0	16
NBL-16P	PG48	37-44	MCR-16	51	2"	59.3	18
管螺紋/Tube thread NBL-G
NBL-03G	G3/8"	4-8	MCR-03	10	1/4"	16.5	8
NBL-04G	G3/8"	6-10	MCR-04	13	3/8"	16.5	8
NBL-05G	G1/2"	8-12	MCR-05	16	1/2"	21.3	11
NBL-06G	G3/4"	13-18	MCR-06	20	3/4"	26.6	14
NBL-08G	G1"	15-22	MCR-08	25	1"	33.4	15
NBL-10G	G1 1/4"	22-28	MCR-10	32	11/4"	42.1	15
NBL-12G	G1 1/2"	26-32	MCR-12	38	11/2"	47.8	16
NBL-16G	G2"	37-44	MCR-16	51	2	59.6	18
