日成細齒阻燃線槽 HVDRT

特點:細齒直孔5MM 熱銷走線槽

產品材質:采用低鹵素硬質PVC料制成,環保無污染,不含鉛等有毒物。
產品認證:美國UL:E306674 歐洲CE 歐洲環保RoHS,REACH,鐵道阻燃低煙。
防火等級:UL94V-0,低煙微鹵,遇火不燃燒,防火性及絕緣性特佳。
產品構造:由槽底及槽蓋組成,底槽兩側設有出線孔。

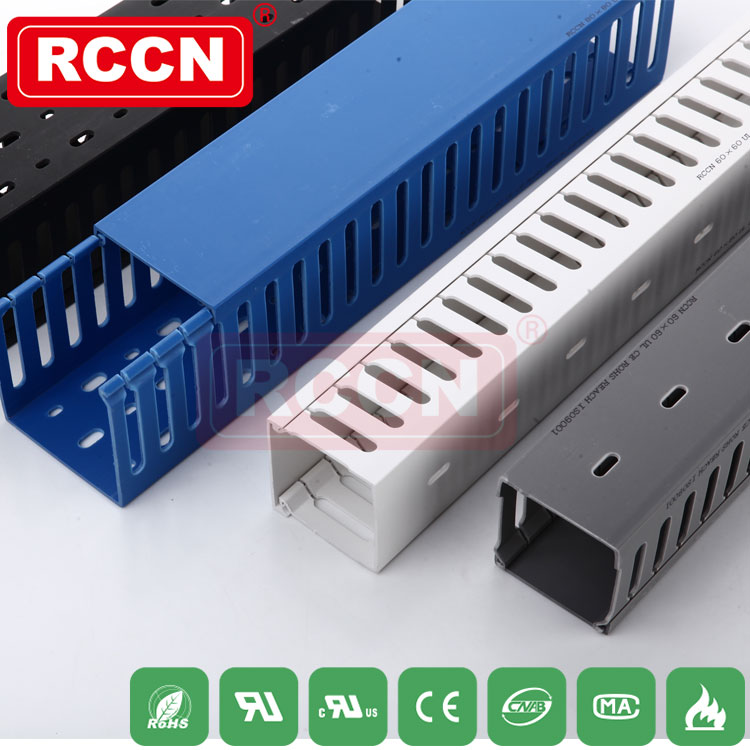

顏色:灰色.白色.藍色.黑色
工作溫度 :靜態-40°C持續高溫至65°C,短時間可達85°C。
使用方法:先將底槽固定,將所要配的線裝入槽內,蓋上槽蓋即可。
產品特性 : 1.反扣式槽蓋與槽體設計組合後絕不脫落,且接合面平滑,不割傷手及擦損附近配線。
2.配線槽65°C內不易斷裂,變形,變色,裝配省時便利。
3.出線孔低、組合容易、拆卸簡單、易于配線。
更多選擇:量大可按需求生產所需規格或定制長度.例:VDR8080F(L=1.7M)

推薦：灰色為常規庫存產品,其它顏色有起訂量要求。*交期待確認。
標準長度：2米/支

阻燃PVC線槽線槽規格線槽走線槽配線槽

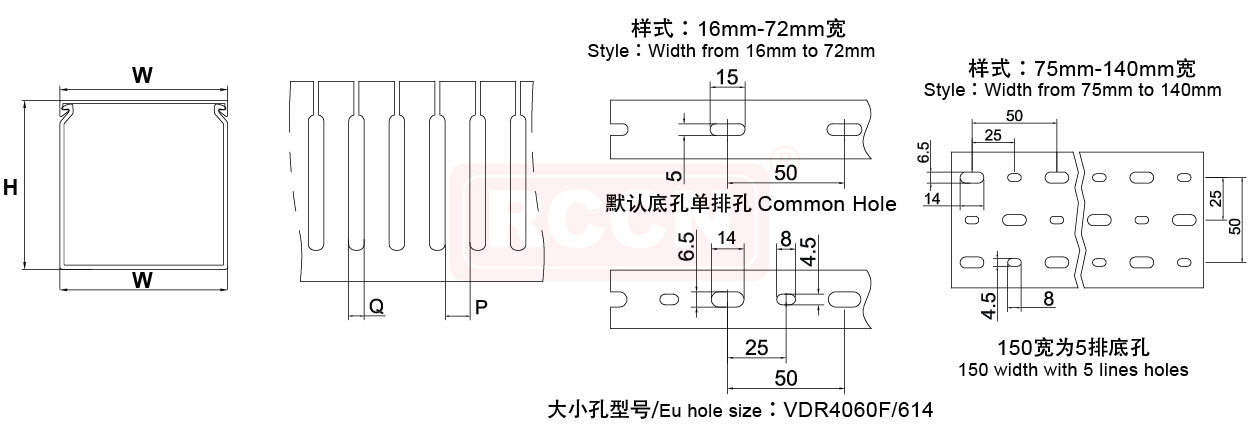

產品規格

型號Item No.				寬高 WH	孔寬 Q	齒寬 P	電線容量以2.0平方計算	裝箱 /M
灰色Gray	白色White	藍色Blue	黑色Black	寬高 WH	孔寬 Q	齒寬 P	電線容量以2.0平方計算	裝箱 /M
HVDR1616T	HVDR1616TW	HVDR1616TE	HVDR1616TB	16*16	5	8	3-10pcs	300M
HVDR2516T	HVDR2516TW	HVDR2516TE	HVDR2516TB	25*16	5	8	8-12pcs	100M
HVDR1520T	HVDR1520TW	HVDR1520TE	HVDR1520TB	15*20	5	8	8-12pcs	260M
HVDR2020T	HVDR2020TW	HVDR2020TE	HVDR2020TB	20*20	5	8	10-20pcs	240M
HVDR4020T	HVDR4020TW	HVDR4020TE	HVDR4020TB	40*20	5	8	15-30pcs	140M
HVDR1525T	HVDR1525TW	HVDR1525TE	HVDR1525TB	15*25	5	8	5-15pcs	260M
*HVDR2025T	HVDR2025TW	HVDR2025TE	HVDR2025TB	20*25	5	8	5~15pcs	200M
*HVDR2525T	HVDR2525TW	HVDR2525TE	HVDR2525TB	25*25	5	8	10~pcs	200M
*HVDR3025T	HVDR3025TW	HVDR3025TE	HVDR3025TB	30*25	5	8	12~28pcs	160M
HVDR4025T	HVDR4025TW	HVDR4025TE	HVDR4025TB	40*25	5	8	20-35pcs	100M
HVDR5025T	HVDR5025TW	HVDR5025TE	HVDR5025TB	50*25	5	8	12-28PCS	100M
HVDR1530T	HVDR1530TW	HVDR1530TE	HVDR1530TB	15*30	5	8	8-15pcs	180M
HVDR2030T	HVDR2030TW	HVDR2030TE	HVDR2030TB	20*30	5	8	25-35pcs	160M
HVDR2530T	HVDR2530TW	HVDR2530TE	HVDR2530TB	25*30	5	8	25~35pcs	160M
HVDR3030T	HVDR3030TW	HVDR3030TE	HVDR3030TB	3030	5	8	25~35pcs	140M
HVDR4030T	HVDR4030TW	HVDR4030TE	HVDR4030TB	40*30	5	8	30~40pcs	100M
HVDR5030T	HVDR5030TW	HVDR5030TE	HVDR5030TB	50*30	5	8	40-50pcs	80M
HVDR6030T	HVDR6030TW	HVDR6030TE	HVDR6030TB	60*30	5	8	50-60pcs	60M
HVDR2233T	HVDR2233TW	HVDR2233TE	HVDR2233TB	22*33	5	8	25-35pcs	160M
HVDR3333T	HVDR3333TW	HVDR3333TE	HVDR3333TB	33*33	5	8	35-45pcs	160M
HVDR2035T	HVDR2035TW	HVDR2035TE	HVDR2035TB	20*35	5	8	30-40pcs	100M
HVDR3535T	HVDR3535TW	HVDR3535TE	HVDR3535TB	35*35	5	8	35-45pcs	112M
HVDR5035T	HVDR5035TW	HVDR5035TE	HVDR5035TB	50*35	5	8	40-60pcs	88M
HVDR2040T	HVDR2040TW	HVDR2040TE	HVDR2040TB	2040	5	8	16-22pcs	110M
HVDR2540T	HVDR2540TW	HVDR2540TE	HVDR2540TB	25*40	5	8	20~25pcs	112M
HVDR3540T	HVDR3540TW	HVDR3540TE	HVDR3540TB	35*40	5	8	35-45pcs	100M
HVDR4040T	HVDR4040TW	HVDR4040TE	HVDR4040TB	40*40	5	8	60~70pcs	100M
HVDR6040T	HVDR6040TW	HVDR6040TE	HVDR6040TB	60*40	5	8	100~115pcs	68M
HVDR8040T	HVDR8040TW	HVDR8040TE	HVDR8040TB	80*40	5	8	120~135pcs	48M
HVDR10040T	HVDR10040TW	HVDR10040TE	HVDR10040TB	100*40	5	8	120~135pcs	32M
HVDR12040T	HVDR12040TW	HVDR12040TE	HVDR12040TB	120*40	5	8	140-155pcs	/
HVDR2545T	HVDR2545TW	HVDR2545TE	HVDR2545TB	25*45	5	8	20~25pcs	104M
HVDR3345T	HVDR3345TW	HVDR3345TE	HVDR3345TB	33*45	5	8	40~55pcs	108M
HVDR4545T	HVDR4545TW	HVDR4545TE	HVDR4545TB	45*45	5	8	60~70pcs	72M
HVDR6545T	HVDR6545TW	HVDR6545TE	HVDR6545TB	65*45	5	8	110~120pcs	56M
HVDR2050T	HVDR2050TW	HVDR2050TE	HVDR2050TB	20*50	5	8	18-28pcs	100M
HVDR2550T	HVDR2550TW	HVDR2550TE	HVDR2550TB	25*50	5	8	20~30pcs	100M
HVDR3050T	HVDR3050TW	HVDR3050TE	HVDR3050TB	30*50	5	8	25~40pcs	84M
HVDR3550T	HVDR3550TW	HVDR3550TE	HVDR3550TB	35*50	5	8	40~60pcs	80M
HVDR4050T	HVDR4050TW	HVDR4050TE	HVDR4050TB	40*50	5	8	60~70pcs	68M
HVDR4550T	HVDR4550TW	HVDR4550TE	HVDR4550TB	45*50	5	8	70~80pcs	60M
HVDR5050T	HVDR5050W	HVDR5050TE	HVDR5050TB	50*50	5	8	80~90pcs	60M
HVDR5550T	HVDR5550W	HVDR5550TE	HVDR5550TB	50*50	5	8	80~90pcs	48M
HVDR6050T	HVDR6050TW	HVDR6050TE	HVDR6050TB	60*50	5	8	100~120pcs	48M
HVDR7550T	HVDR7550TW	HVDR7550TE	HVDR7550TB	75*50	5	8	150-170pcs	40M
HVDR8050T	HVDR8050TW	HVDR8050TE	HVDR8050TB	80*50	5	8	160~180pcs	40M
HVDR10050T	HVDR10050TW	HVDR10050TE	HVDR10050TB	100*50	5	8	200~250pcs	26M
HVDR12555T	HVDR12555TW	HVDR12555TE	HVDR12555TB	125*55	5	8	220-270pcs	20M
*HVDR2060T	HVDR2060TW	HVDR2060TE	HVDR2060TB	20*60	5	8	35~45pcs	100M
HVDR2560T	HVDR2560TW	HVDR2560TE	HVDR2560TB	25*60	5	8	40~50pcs	100M
HVDR3060T	HVDR3060TW	HVDR3060TE	HVDR3060TB	30*60	5	8	60~80pcs	80M
HVDR3560T	HVDR3560TW	HVDR3560TE	HVDR3560TB	35*60	5	8	90-105pcs	78M
HVDR4060T	HVDR4060TW	HVDR4060TE	HVDR4060TB	40*60	5	8	100~115pcs	60M
HVDR4560T	HVDR4560TW	HVDR4560TE	HVDR4560TB	45*60	5	8	110~125pcs	30M
HVDR5060T	HVDR5060TW	HVDR5060TE	HVDR5060TB	50*60	5	8	120~135pcs	60M
HVDR6060T	HVDR6060TW	HVDR6060TE	HVDR6060TB	60*60	5	8	120~135pcs	48M
HVDR8060T	HVDR8060TW	HVDR8060TE	HVDR8060TB	80*60	5	8	180~210pcs	36M
HVDR10060T	HVDR10060TW	HVDR10060TE	HVDR10060TB	100*60	5	8	240~290pcs	28M
HVDR11060T	HVDR11060TW	HVDR11060TE	HVDR11060TB	110*60	5	8	250~300pcs	48M
*HVDR12060T	HVDR12060TW	HVDR12060TE	HVDR12060TB	120*60	5	8	260~320pcs	48M
HVDR2565T	HVDR2565TW	HVDR2565TE	HVDR2565TB	25*65	5	8	40~50pcs	96M
HVDR3365T	HVDR3365TW	HVDR3365TE	HVDR3365TB	33*65	5	8	40~70pcs	80M
HVDR4565T	HVDR4565TW	HVDR4565TE	HVDR4565TB	45*65	5	8	110~120pcs	52M
HVDR6565T	HVDR6565TW	HVDR6565TE	HVDR6565TB	65*65	5	8	180~200pcs	44M
HVDR7265T	HVDR7265TW	HVDR7265TE	HVDR7265TB	72*65	5	8	180-230pcs	42M
HVDR2575T	HVDR2575T	HVDR2575T	HVDR2575T	25*75	5	8	180~210pcs	/
HVDR5075T	HVDR5075TW	HVDR5075TE	HVDR5075TB	50*75	5	8	180-210pcs	42M
HVDR7575T	HVDR7575TW	HVDR7575TE	HVDR7575TB	75*75	5	8	200-240pcs	40M
HVDR10075T	HVDR10075TW	HVDR10075TE	HVDR10075TB	100*75	5	8	250-290pcs	24M
HVDR2580T	HVDR2580TW	HVDR2580TE	HVDR2580TB	25*80	5	8	100~120pcs	72M
HVDR3080T	HVDR3080TW	HVDR3080TE	HVDR3080TB	30*80	5	8	110~125pcs	56M
HVDR3580T	HVDR3580TW	HVDR3580TE	HVDR3580TB	35*80	5	8	110~130pcs	56M
HVDR4080T	HVDR4080TW	HVDR4080TE	HVDR4080TB	40*80	5	8	140~160pcs	48M
HVDR4580T	HVDR4580TW	HVDR4580TE	HVDR4580TB	45*80	5	8	140~160pcs	40M
HVDR5080T	HVDR5080TW	HVDR5080TE	HVDR5080TB	50*80	5	8	160~180pcs	40M
HVDR5580T	HVDR5580TW	HVDR5580TE	HVDR5580TB	55*80	5	8	160~180pcs	32M
HVDR6080T	HVDR6080TW	HVDR6080TE	HVDR6080TB	60*80	5	8	180~210pcs	32M
HVDR8080T	HVDR8080TW	HVDR8080TE	HVDR8080TB	80*80	5	8	240~290pcs	24M
HVDR10080T	HVDR10080TW	HVDR10080TE	HVDR10080TB	100*80	5	8	260~350pcs	24M
HVDR12080T	HVDR12080TW	HVDR12080TE	HVDR12080TB	120*80	5	8	280~380pcs	16M
HVDR14080T	HVDR14080TW	HVDR14080TE	HVDR14080TB	140*80	5	8	350~450pcs	16M
*HVDR25100T	HVDR25100TW	HVDR25100TE	HVDR25100TB	25*100	5	8	110~160 pcs	60M
HVDR33100T	HVDR33100TW	HVDR33100TE	HVDR33100TB	33*100	5	8	130~165 pcs	44M
HVDR40100T	HVDR40100TW	HVDR40100TE	HVDR40100TB	40*100	5	8	130~175 pcs	40M
HVDR50100T	HVDR50100TW	HVDR50100TE	HVDR50100TB	50*100	5	8	220~250 pcs	40M
HVDR60100T	HVDR60100TW	HVDR60100TE	HVDR60100TB	60*100	5	8	240~290 pcs	32M
HVDR70100T	HVDR70100TW	HVDR70100TE	HVDR70100TB	70*100	5	8	250~340 pcs	24M
HVDR75100T	HVDR75100TW	HVDR75100TE	HVDR75100TB	75*100	5	8	260~350 pcs	24M
HVDR80100T	HVDR80100TW	HVDR80100TE	HVDR80100TB	80*100	5	8	260~350 pcs	24M
HVDR100100T	HVDR100100TW	HVDR100100TE	HVDR100100TB	100*100	5	8	300-400pcs	24M
HVDR120100T	HVDR120100TW	HVDR120100TE	HVDR120100TB	120*100	5	8	350-450pcs	16M
HVDR150100T	HVDR150100TW	HVDR150100TE	HVDR150100TB	150*100	5	8	400-650pcs	16M
HVDR150130T	HVDR150130TW	HVDR150130TE	HVDR150130TB	150*130	5	8	400-650pcs	16M
HVDR100130T	HVDR100130TW	HVDR100130TE	HVDR100130TB	150*130	5	8	350-450pcs	/
HVDR200100T	HVDR200100TW	HVDR200100TE	HVDR200100TB	200*100	5	8	600-800pcs	16M
HVDR200150T	HVDR200150TW	HVDR200150TE	HVDR200150TB	200*150	5	8	900-1200pcs	/

? ?
