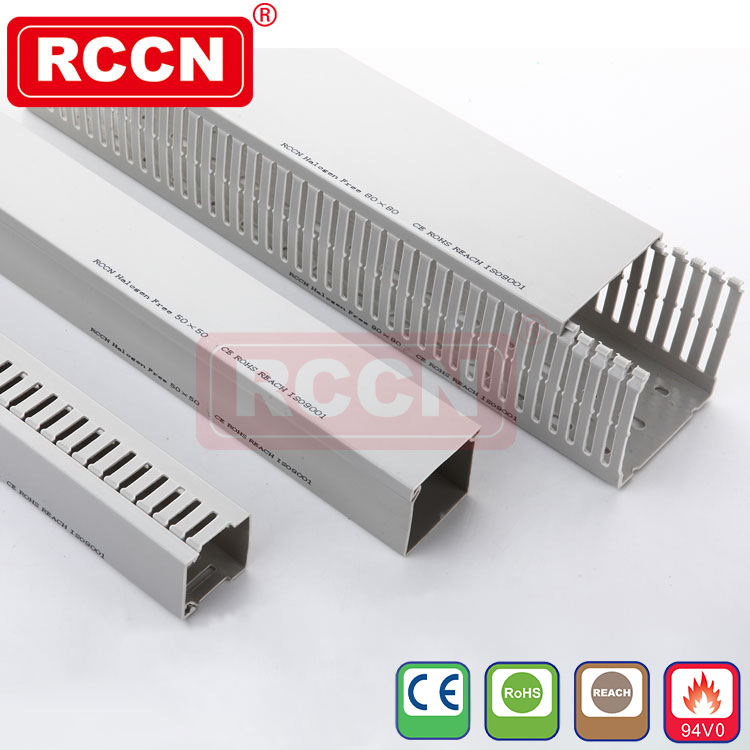

低煙無鹵線槽 HVDRF-HF

特點:耐高溫110度線槽

產品材質:采用無鹵素硬質料制成,環保無污染,不含鉛等有毒物。
產品認證:歐洲CE,歐洲環保RoHS,REACH。
防火等級:低煙無鹵,遇火不燃燒,防火性及絕緣性特佳。
產品構造:由槽底及槽蓋組成。
顏?????? 色 :灰色.乳白色.藍色,淺灰色
工作溫度 :靜態-40°C持續高溫至110°C。
*無鹵原料采用PCABS制成。
產品用途：半導體制造,造船,核能發電廠，石油平臺，電梯，機車及地鐵，風能發電平臺，溫度及環境惡劣等行業。
更多選擇:可按需求生產定制其它長度.
無鹵線槽以槽蓋槽底組合后外部寬高為準
表格如沒有你所需要的規格，我司可以開發設計供應！

耐高溫線槽低煙無鹵線槽無鹵線槽線槽價格線槽

產品規格

型號Item No.				寬高 WH	孔寬 Q	齒寬 P	裝箱 /M
灰色Gray	乳白色White	藍色Blue	黑色Black	寬高 WH	孔寬 Q	齒寬 P	裝箱 /M
HVDR1616F/HF	HVDR1616FW/HF	HVDR1616FE/HF	HVDR1616FB/HF	16*16	5	5	300M
HVDR2516F/HF	HVDR2516FW/HF	HVDR2516FE/HF	HVDR2516FB/HF	25*16	5	5	260M
HVDR1520F/HF	HVDR1520FW/HF	HVDR1520FE/HF	HVDR1520FB/HF	15*20	4	6	260M
HVDR2020F/HF	HVDR2020FW/HF	HVDR2020FE/HF	HVDR2020FB/HF	20*20	4	6	240M
HVDR4020F/HF	HVDR4020FW/HF	HVDR4020FE/HF	HVDR4020FB/HF	40*20	4	6	140M
HVDR1525F/HF	HVDR1525FW/HF	HVDR1525FE/HF	HVDR1525FB/HF	15*25	5	5	260M
HVDR2025F/HF	HVDR2025FW/HF	HVDR2025FE/HF	HVDR2025FB/HF	20*25	4	6	200M
HVDR2525F/HF	HVDR2525FW/HF	HVDR2525FE/HF	HVDR2525FB/HF	25*25	4	6	200M
HVDR3025F/HF	HVDR3025FW/HF	HVDR3025FE/HF	HVDR3025FB/HF	30*25	4	6	160M
HVDR4025F/HF	HVDR4025FW/HF	HVDR4025FE/HF	HVDR4025FB/HF	40*25	4	6	100M
HVDR5025F/HF	HVDR5025FW/HF	HVDR5025EF/HF	HVDR5025FB/HF	50*25	4	6	100M
HVDR1530F/HF	HVDR1530FW/HF	HVDR1530FE/HF	HVDR1530FB/HF	15*30	4	6	180M
HVDR2030F/HF	HVDR2030FW/HF	HVDR2030FE/HF	HVDR2030FB/HF	20*30	4	6	130M
HVDR2530F/HF	HVDR2530FW/HF	HVDR2530FE/HF	HVDR2530FB/HF	25*30	4	6	130M
HVDR3030F/HF	HVDR3030FW/HF	HVDR3030FE/HF	HVDR3030FB/HF	30*30	4	6	140M
HVDR4030F/HF	HVDR4030FW/HF	HVDR4030FE/HF	HVDR4030FB/HF	40*30	4	6	100M
HVDR5030F/HF	HVDR5030FW/HF	HVDR5030FE/HF	HVDR5030FB/HF	50*30	4	5	80M
HVDR6030F/HF	HVDR6030FW/HF	HVDR6030FE/HF	HVDR6030FB/HF	60*30	4	6	60M
HVDR2233F/HF	HVDR2233FW/HF	HVDR2233FE/HF	HVDR2233FB/HF	22*33	4	6	160M
HVDR3333F/HF	HVDR3333FW/HF	HVDR3333FE/HF	HVDR3333FB/HF	33*33	4	6	160M
HVDR2035F/HF	HVDR2035FW/HF	HVDR2035FE/HF	HVDR2035FB/HF	20*35	4	6	100M
HVDR3535F/HF	HVDR3535FW/HF	HVDR3535FE/HF	HVDR3535FB/HF	35*35	4	6	112M
HVDR5035F/HF	HVDR5035FW/HF	HVDR5035FE/HF	HVDR5035FB/HF	50*35	4	6	88M
HVDR2040F/HF	HVDR2040FW/HF	HVDR2040FE/HF	HVDR2040FB/HF	20*40	4	6	110M
HVDR2540F/HF	HVDR2540FW/HF	HVDR2540FE/HF	HVDR2540FB/HF	25*40	4	6	112M
HVDR3540F/HF	HVDR3540FW/HF	HVDR3540FE/HF	HVDR3540FB/HF	35*40	4	6	100M
HVDR4040F/HF	HVDR4040FW/HF	HVDR4040FE/HF	HVDR4040FB/HF	40*40	4	6	100M
HVDR6040F/HF	HVDR6040FW/HF	HVDR6040FE/HF	HVDR6040FB/HF	60*40	4	6	68M
HVDR8040F/HF	HVDR8040FW/HF	HVDR8040FE/HF	HVDR8040FB/HF	80*40	4	6	48M
HVDR10040F/HF	HVDR10040FW/HF	HVDR10040FE/HF	HVDR10040FB/HF	100*40	4	6	32M
HVDR12040F/HF	HVDR12040FW/HF	HVDR12040FE/HF	HVDR12040FB/HF	100*40	4	6	/
HVDR2545F/HF	HVDR2545FW/HF	HVDR2545FE/HF	HVDR2545FB/HF	25*45	4	6	104M
HVDR3345F/HF	HVDR3345FW/HF	HVDR3345FE/HF	HVDR3345FB/HF	33*45	4	6	108M
HVDR4545F/HF	HVDR4545FW/HF	HVDR4545FE/HF	HVDR4545FB/HF	45*45	4	6	72M
HVDR6545F/HF	HVDR6545FW/HF	HVDR6545FE/HF	HVDR6545FB/HF	65*45	4	6	56M
HVDR2050F/HF	HVDR2050FW/HF	HVDR2050FE/HF	HVDR2050FB/HF	20*50	4	6	100M
HVDR2550F/HF	HVDR2550FW/HF	HVDR2550FE/HF	HVDR2550FB/HF	25*50	4	6	100M
HVDR3050F/HF	HVDR3050FW/HF	HVDR3050FE/HF	HVDR3050FB/HF	30*50	4	6	84M
HVDR3550F/HF	HVDR3550FW/HF	HVDR3550FE/HF	HVDR3550FB/HF	35*50	4	6	80M
HVDR4050F/HF	HVDR4050FW/HF	HVDR4050FE/HF	HVDR4050FB/HF	40*50	4	6	68M
HVDR4550F/HF	HVDR4550FW/HF	HVDR4550FE/HF	HVDR4550FB/HF	45*50	4	6	60M
HVDR5050F/HF	HVDR5050FW/HF	HVDR5050FE/HF	HVDR5050FB/HF	50*50	4	6	50M
HVDR5550F/HF	HVDR5550FW/HF	HVDR5550FE/HF	HVDR5550FB/HF	55*50	4	6	48M
HVDR6050F/HF	HVDR6050FW/HF	HVDR6050FE/HF	HVDR6050FB/HF	60*50	4	6	48M
HVDR7550F/HF	HVDR7550FW/HF	HVDR7550FE/HF	HVDR7550FB/HF	75*50	4	6	40M
HVDR8050F/HF	HVDR8050FW/HF	HVDR8050FE/HF	HVDR8050FB/HF	80*50	4	6	40M
HVDR10050F/HF	HVDR10050FW/HF	HVDR10050FE/HF	HVDR10050FB/HF	100*50	4	6	26M
HVDR12555F/HF	HVDR12555FW/HF	HVDR12555FE/HF	HVDR12555FB/HF	125*55	4	6	26M
HVDR2060F/HF	HVDR2060FW/HF	HVDR2060FE/HF	HVDR2060FB/HF	20*60	4	6	100M
HVDR2560F/HF	HVDR2560FW/HF	HVDR2560FE/HF	HVDR2560FB/HF	25*60	4	6	100M
HVDR3060F/HF	HVDR3060FW/HF	HVDR3060FE/HF	HVDR3060FB/HF	30*60	4	6	80M
HVDR3560F/HF	HVDR3560FW/HF	HVDR3560FE/HF	HVDR3560FB/HF	35*60	4	6	78M
HVDR4060F/HF	HVDR4060FW/HF	HVDR4060FE/HF	HVDR4060FB/HF	40*60	4	6	60M
HVDR4560F/HF	HVDR4560FW/HF	HVDR4560FE/HF	HVDR4560FB/HF	45*60	4	6	30M
HVDR5060F/HF	HVDR5060FW/HF	HVDR5060FE/HF	HVDR5060FB/HF	50*60	4	6	60M
HVDR6060F/HF	HVDR6060FW/HF	HVDR6060FE/HF	HVDR6060FB/HF	60*60	4	6	48M
HVDR8060F/HF	HVDR8060FW/HF	HVDR8060FE/HF	HVDR8060FB/HF	80*60	4	6	36M
HVDR10060F/HF	HVDR10060FW/HF	HVDR10060FE/HF	HVDR10060FB/HF	100*60	4	6	28M
HVDR11060F/HF	HVDR11060FW/HF	HVDR11060FE/HF	HVDR11060FB/HF	110*60	4	6	48M
HVDR12060F/HF	HVDR12060FW/HF	HVDR12060FE/HF	HVDR12060FB/HF	120*60	4	6	48M
HVDR15060F/HF	HVDR15060FW/HF	HVDR15060FE/HF	HVDR15060FB/HF	150*60	4	6	16M
HVDR2565F/HF	HVDR2565FW/HF	HVDR2565FE/HF	HVDR2565FB/HF	25*65	4	6	88M
HVDR3365F/HF	HVDR3365FW/HF	HVDR3365FE/HF	HVDR3365FB/HF	33*65	4	6	80M
HVDR4565F/HF	HVDR4565FW/HF	HVDR4565FE/HF	HVDR4565FB/HF	45*65	4	6	52M
HVDR6565F/HF	HVDR6565FW/HF	HVDR6565FE/HF	HVDR6565FB/HF	65*65	4	6	44M
HVDR7265F/HF	HVDR7265FW/HF	HVDR7265FE/HF	HVDR7265FB/HF	72*65	4	6	42M
HVDR2575F/HF	HVDR2575FW/HF	HVDR2575FE/HF	HVDR2575FB/HF	25*75	4	6	/
HVDR5075F/HF	HVDR5075FW/HF	HVDR5075FE/HF	HVDR5075FB/HF	50*75	4	6	42M
HVDR7575F/HF	HVDR7575FW/HF	HVDR7575FE/HF	HVDR7575FB/HF	75*75	4	6	40M
HVDR10075F/HF	HVDR10075FW/HF	HVDR10075FE/HF	HVDR10075FB/HF	100*75	4	6	24M
HVDR2580F/HF	HVDR2580FW/HF	HVDR2580FE/HF	HVDR2580FB/HF	25*80	4	6	72M
HVDR3080F/HF	HVDR3080FW/HF	HVDR3080FE/HF	HVDR3080FB/HF	30*80	4	6	56M
HVDR3580F/HF	HVDR3580FW/HF	HVDR3580FE/HF	HVDR3580FB/HF	35*80	4	6	56M
HVDR4080F/HF	HVDR4080FW/HF	HVDR4080FE/HF	HVDR4080FB/HF	40*80	4	6	48M
HVDR4580F/HF	HVDR4580FW/HF	HVDR4580FE/HF	HVDR4580FB/HF	45*80	4	6	40M
HVDR5080F/HF	HVDR5080FW/HF	HVDR5080FE/HF	HVDR5080FB/HF	50*80	4	6	40M
HVDR5580F/HF	HVDR5580FW/HF	HVDR5580FE/HF	HVDR5580FB/HF	55*80	4	6	32M
HVDR6080F/HF	HVDR6080FW/HF	HVDR6080FE/HF	HVDR6080FB/HF	60*80	4	6	32M
HVDR8080F/HF	HVDR8080FW/HF	HVDR8080FE/HF	HVDR8080FB/HF	80*80	4	6	24M
HVDR10080F/HF	HVDR10080FW/HF	HVDR10080FE/HF	HVDR10080FB/HF	100*80	4	6	24M
HVDR12080F/HF	HVDR12080FW/HF	HVDR12080FE/HF	HVDR12080FB/HF	120*80	4	6	16M
HVDR14080F/HF	HVDR14080FW/HF	HVDR14080FE/HF	HVDR14080FB/HF	140*80	4	6	16M
HVDR16080F/HF	HVDR16080FW/HF	HVDR16080FE/HF	HVDR16080FB/HF	160*80	4	6	/
HVDR25100F/HF	HVDR25100FW/HF	HVDR25100FE/HF	HVDR25100FB/HF	25*100	4	6	60M
HVDR33100F/HF	HVDR33100FW/HF	HVDR33100FE/HF	HVDR33100FB/HF	33*100	4	6	44M
HVDR40100F/HF	HVDR40100FW/HF	HVDR40100FE/HF	HDR40100FB/HF	40*100	4	6	40M
HVDR50100F/HF	HVDR50100FW/HF	HVDR50100FE/HF	HVDR50100FB/HF	50*100	4	6	40M
HVDR60100F/HF	HVDR60100FW/HF	HVDR60100FE/HF	HVDR60100FB/HF	60*100	4	6	32M
HVDR70100F/HF	HVDR70100FW/HF	HVDR70100FE/HF	HVDR70100FB/HF	70*100	4	6	24M
HVDR75100F/HF	HVDR75100FW/HF	HVDR75100FE/HF	HVDR75100FB/HF	75*100	4	6	24M
HVDR80100F/HF	HVDR80100FW/HF	HVDR80100FE/HF	HVDR80100FB/HF	80*100	4	6	24M
HVDR100100F/HF	HVDR100100FW/HF	HVDR100100FE/HF	HVDR100100FB/HF	100*100	4	6	24M
HVDR120100F/HF	HVDR120100FW/HF	HVDR120100FE/HF	HVDR120100FB/HF	120*100	4	6	16M
HVDR150100F/HF	HVDR150100FW/HF	HVDR150100FE/HF	HVDR150100FB/HF	150*100	4	6	16M
HVDR160100F/HF	HVDR160100FW/HF	HVDR160100FE/HF	HVDR160100FB/HF	160*100	4	6	/
HVDR100130F/HF	HVDR100130FW/HF	HVDR100130FE/HF	HVDR100130FB/HF	100*130	4	6	/
HVDR200100F/HF	HVDR200100FW/HF	HVDR200100FE/HF	HVDR200100FB/HF	200*100	4	6	16M
HVDR200150F/HF	HVDR200150FW/HF	HVDR200150FE/HF	HVDR200150FB/HF	200*150	4	6	16M
