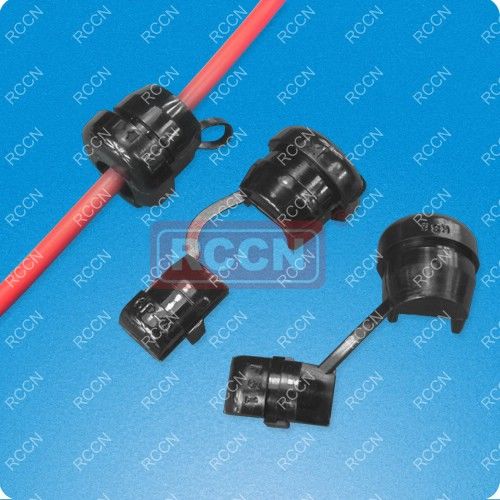

官方商城上海日成電子-RCCN,專業制造日成SR型電源線扣,電源線扣,全新原料制成,便用后不易老化.固定電線效果佳,性價比高.品質優良,是您保護電線的最佳選擇!
   |
材 質：電源線扣.合格之NYLON66(黑色)，防火等級94V-2，不易老化。 |
| 型號 Item No. | 型狀 shape | 適用UL電線ULWires | 適應電線尺寸 Approx.wiresize | 鐵板孔徑Mounting Hole | 線扣長度Part L. D. | 適用機板厚度Max. Chassis Thickness F. | 包裝Packing | |
| A | B | |||||||
| SR-F21 | 扁線用 FLAT | SPT-1#18 | 2.3X4.5或2.8X5.3 | 9.5 | 8.7 | 10.3 | 0.5-1.6 | 每包100pcs |
| SR-F23 | SPT-1#18 | 2.3X4.5或2.8X5.3 | 9.5 | 8.7 | 10.3 | 1.8-3.2 | ||
| SR-F31 | SPT-1#18 | 3.0X5.6 | 11.0 | 9.9 | 10.3 | 1.0-1.6 | ||
| SR-F32 | SPT-1#18 | 3.0X5.6 | 11.0 | 9.9 | 10.3 | 1.9-2.5 | ||
| SR-F41 | SPT-2#18 | 3.0X7.1或3.8X7.6 | 12.7 | 11.8 | 10.3 | 0.5-1.6 | ||
| SR-F42 | SPT-2#18 | 3.0X7.1或3.8X7.6 | 12.7 | 11.8 | 10.3 | 1.8-2.5 | ||
| SR-F51 | SPT-3#18 | 5X10.4 | 14.3 | 12.9 | 15.2 | 0.5-1.6 | ||
| SR-F53 | SPT-3#18 | 5X10.4 | 14.3 | 12.9 | 15.2 | 1.8-3.5 | ||
| SR-F83 | Wire 3C 2mm2 | 6X15.2 | 21.6 | 21.3 | 20.4 | 2.0-3.4 | ||
| SR-5R1 | 圓線用 ROUND | SVI,SVT3C#18 | 6.2? ~7.4? | 12.8 | 11.5 | 11.0 | 0.5-1.6 | |
| SR-5R2 | SVI,SVT3C#18 | 6.2? ~7.4? | 13.0 | 11.5 | 11.0 | 1.8-2.5 | ||
| SR-6W2 | SVI3C#18 | 7.6? | 12.8 | 11.8 | 11.0 | 1.8-2.3 | ||
| SR-6P1 | SJC 3C # 18 | 7.4?~8.2? | 15.9 | 14.0 | 14.8 | 0.5-1.6 | ||
| SR-6P3 | SJC 3C # 18 | 7.4?~8.2? | 15.9 | 14.0 | 14.8 | 1.9-3.2 | ||
| SR-6R1 | SJ,SJT,3C # 16 | 8.2?~9.2? | 15.9 | 14.0 | 14.8 | 0.5-1.6 | ||
| SR-6R3 | SJ,SJT,3C # 16 | 8.2?~9.2? | 15.9 | 14.0 | 14.8 | 1.9-3.2 | ||
| SR-7R1 | SJT,3C # 14 | 9.2?~10.5?或11? | 19.9 | 17.0 | 19.0 | 0.5-1.6 | ||
| SR-7R3 | SJT,3C # 14 | 9.2?~10.5?或11? | 19.7 | 17.0 | 19.0 | 1.9-3.2 | ||
| SR-8R3 | SJT,3C # 12 | 12?~15.2? | 21.6 | 21.3 | 20.6 | 1.9-3.2 | ||
| SR-9R1 | # 18 20-30pcs | 11?~15? | 15 | 19 | 17.5 | 0.5-1.6 | ||
| SR-9R7 | SJT,3C # 10 | 15.2?~16.3? | 28.0/30.2 | 25.5 | 25.2 | 1.0-3.2 | ||
| 17.5? | ||||||||
