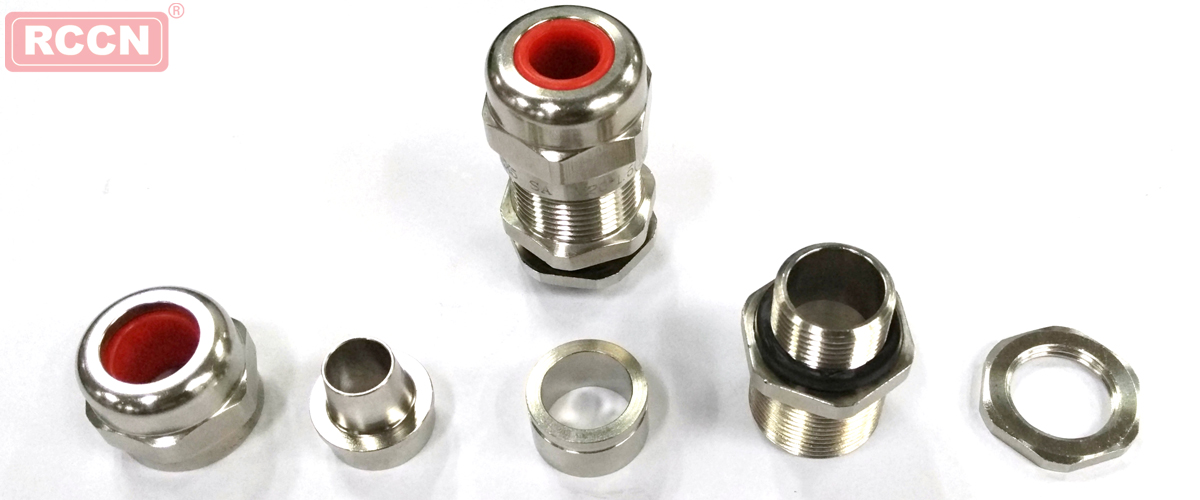

材料：外部金屬為不銹鋼304 ,密封件材料為耐高溫硅膠
防護等級：在規定的卡口范圍之內，防護等級可以達到IP66
溫度范圍：-40℃到100℃短時可達120℃
應用場合：1區.2區危險場所及ⅡA.ⅡB.ⅡC類爆炸性氣體環境，防爆電氣設備連接，化工、石油、電力、輕工、機械等各個部門，特別適用于自動化工程線路安裝防爆等級：Ex d Ⅱc Gb/Ex e ⅡGB

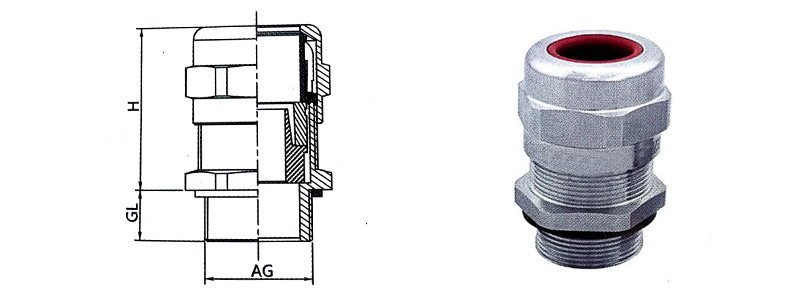

| 型號 Item?No. | 螺紋規格? Thread?Dimension | 外套卡口范圍? Clamping rangel? ?mm | 內套卡口范圍 Clamping?range2 ?mm | AG? mm | 螺紋長度? GL ?mm | H? mm | 扳手尺寸 Wrench?size? mm | 包裝 Std.Pkg? PCS |
| BXG-EX5-M16x1.5-13 | M16x1.5 | 6?-13 | 4-10 | 16 | 15 | 43 | 26 | 10 |
| BXG-EX5-M20x1.5-16 | M20x1.5 | 10-16 | 4-10 | 20 | 15 | 43 | 28 | 10 |
| BXG-EX5-M22x1.5-16 | M22x1.5 | 10-16 | 4-10 | 22 | 15 | 43 | 28 | 10 |
| BXG-EX5-M25x1.5-16 | M25x1.5 | 10-16 | 8-13 | 25 | 15 | 43 | 28 | 10 |
| BXG-EX5-M27x2.0-22 | M27x2.0 | 15-22 | 8-13 | 27 | 15 | 46 | 34 | 10 |
| BXG-EX5-M30x1.5-22 | M30x1.5 | 15-22 | 12-16 | 30 | 15 | 46 | 34 | 10 |
| BXG-EX5-M32x1.5-26 | M32x1.5 | 16.9-26 | 12-16 | 32 | 15 | 49 | 40 | 5 |
| BXG-EX5-M33x1.5-26 | M33x1.5 | 16.9-26 | 12-16 | 33 | 15 | 49 | 40 | 5 |
| BXG-EX5-M36x1.5-26 | M36x1.5 | 16.9-26 | 15-21 | 36 | 15 | 49 | 40 | 5 |
| BXG-EX5-M40x1.5-30 | M40x1.5 | 22-30 | 15-21 | 40 | 15 | 56 | 50 | 5 |
| BXG-EX5-M42x1.5-30 | M42x1.5 | 22-30 | 20-25 | 42 | 15 | 56 | 50 | 5 |
| BXG-EX5-M48x2.0-38 | M48x2.0 | 30-38 | 20-25 | 48 | 15 | 56 | 58/60 | 2 |
| BXG-EX5-M50x1.5-38 | M50x1.5 | 30-38 | 24-31 | 50 | 15 | 56 | 58/60 | 2 |
| BXG-EX5-M56x2.0-44 | M56x2.0 | 37-44 | 24-31 | 56 | 20 | 67 | 65 | 2 |
| BXG-EX5-M60x2.0-44 | M60x2.0 | 37-44 | 27-35 | 60 | 20 | 67 | 65 | 2 |
| BXG-EX5-M63x2.0-53 | M63x2.0 | 42-53 | 27-35 | 63 | 20 | 67 | 75 | 1 |
| BXG-EX5-M64x2.0-53 | M64x2.0 | 42-53 | 35-43 | 64 | 20 | 67 | 75 | 1 |
| BXG-EX5-M72x2.0-61 | M72x2.0 | 55-61 | 35-43 | 72 | 20 | 73 | 86 | 1 |
| BXG-EX5-M75x2.0-61 | M75x2.0 | 55-61 | 42-50 | 75 | 20 | 73 | 86 | 1 |
| BXG-EX5-M80x2.0-71 | M80x2.0 | 65-71 | 42-50 | 80 | 20 | 73 | 86 | 1 |
