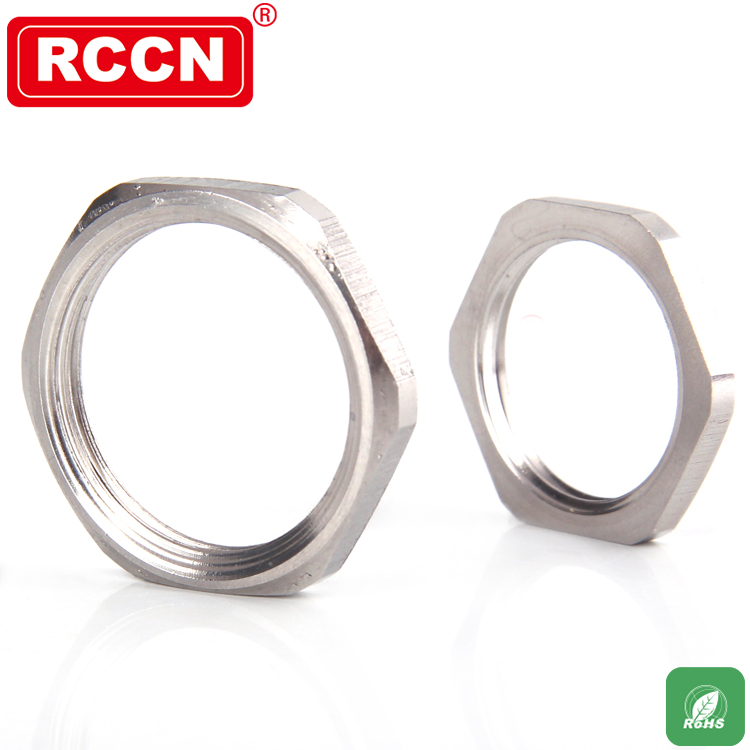

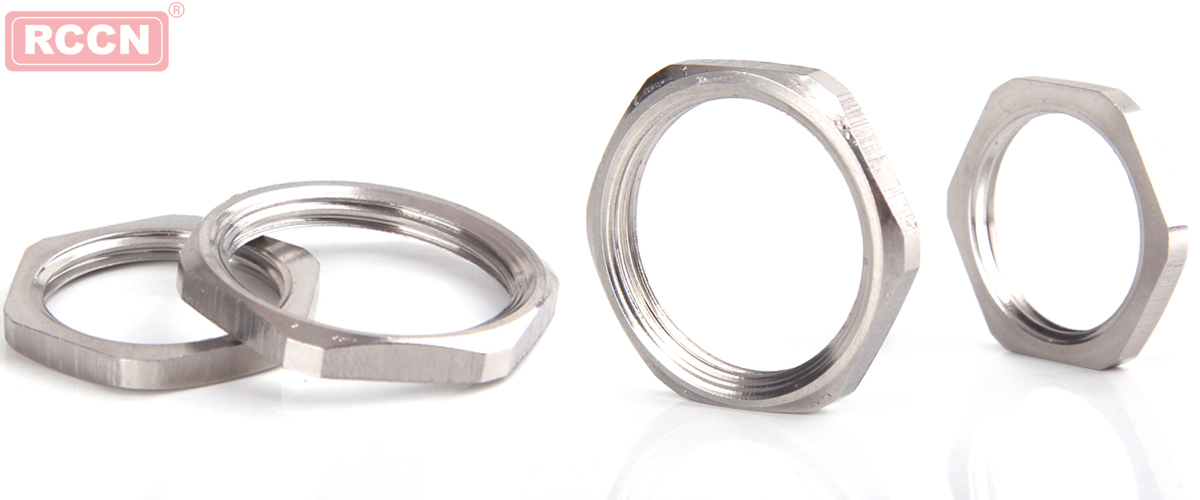

官方商城螺紋規格:公制螺紋(M).德制螺紋（PG）,英制螺紋（G）
產品材質:不銹鋼304
產品特性:和接頭配套,起到固定作用.
上海日成電子有限公司 RCCN - 為顧客創造價值 - ISO9001/IATF16949/ISO/TS22163
選擇語言 Language
螺紋規格:公制螺紋(M).德制螺紋（PG）,英制螺紋（G）
產品材質:不銹鋼304
產品特性:和接頭配套,起到固定作用.

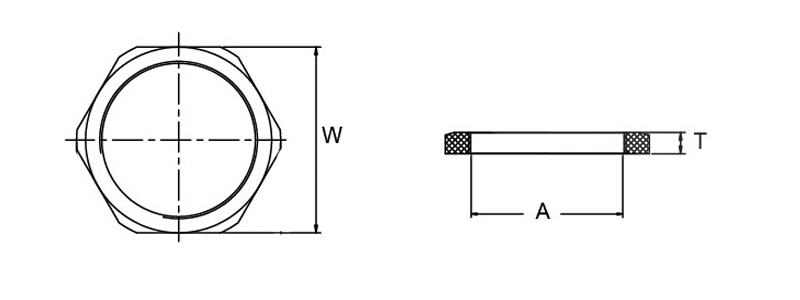

| 型號? Item?No. | 螺紋規格? | 板手 Spanner W | 厚度 Thickness T | 包裝 Std.Pkg. pcs |
| 公制標準MLNS-M | ||||
| MLNS-M8 | M8x1.0 | 12 | 2.5 | 50 |
| MLNS-M10 | M10x1.0 | 12 | 2.5 | 50 |
| MLNS-M12 | M12x1.5 | 15 | 2.8 | 50 |
| MLNS-M16 | M16x1.5 | 19 | 2.8 | 50 |
| MLNS-M18 | M18x1.5 | 21 | 3.0 | 50 |
| MLNS-M20 | M20x1.5 | 23 | 3.0 | 50 |
| MLNS-M22 | M22x1.5 | 26 | 3.0 | 50 |
| MLNS-M24 | M24x1.5 | 28 | 3.5 | 50 |
| MLNS-M25 | M25x1.5 | 30 | 3.5 | 25 |
| MLNS-M27 | M27x2.0 | 32 | 4.0 | 25 |
| MLNS-M30 | M30x2.0 | 34 | 4.0 | 25 |
| MLNS-M32 | M32x1.5 | 36 | 4.0 | 20 |
| MLNS-M33 | M33x2.0 | 36 | 4.0 | 20 |
| MLNS-M36 | M36x2.0 | 40 | 4.0 | 20 |
| MLNS-M40 | M40x1.5 | 45 | 5.0 | 20 |
| MLNS-M42 | M42x2.0 | 46 | 5.0 | 20 |
| MLNS-M48 | M48x2.0 | 55 | 5.0 | 20 |
| MLNS-M50 | M50x1.5 | 55 | 5.0 | 20 |
| MLNS-M56 | M56x2.0 | 60 | 5.0 | 20 |
| MLNS-M60 | M60x2.0 | 65 | 5.0 | 20 |
| MLNS-M63 | M63x1.5 | 70 | 6.0 | 20 |
| MLNS-M64 | M64x1.5 | 70 | 6.0 | 20 |
| 德制標準 ?GM-PG | ||||
| MLNS-PG07 | PG7 | 15 | 2.8 | 50 |
| MLNS-PG09 | PG9 | 18 | 2.8 | 50 |
| MLNS-PG11 | PG11 | 21 | 3.0 | 50 |
| MLNS-PG13.5 | PG13.5 | 23 | 3.0 | 50 |
| MLNS-PG16 | PG16 | 26 | 3.0 | 50 |
| MLNS-PG21 | PG21 | 32 | 3.5 | 20 |
| MLNS-PG29 | PG29 | 40 | 4.0 | 20 |
| MLNS-PG36 | PG36 | 50 | 5.0 | 20 |
| MLNS-PG42 | PG42 | 60 | 5.0 | 20 |
| MLNS-PG48 | PG48 | 65 | 5.5 | 20 |
| 英制標準 ?MLNS-G | ||||
| MLNS-G3/8 | G3/8" | 20 | 3.0 | 50 |
| MLNS-G1/2 | G1/2" | 24 | 4.0 | 50 |
| MLNS-G3/4 | G3/4" | 30 | 4.0 | 25 |
| MLNS-G1 | G1" | 40 | 5.0 | 20 |
| MLNS-G1?1/4 | G1?1/4" | 50 | 5.0 | 20 |
| MLNS-G1?1/2 | G1?1/2" | 55 | 6.0 | 20 |
| MLNS-G2 | G2" | 65 | 6.0 | 20 |
| MLNS-G2?1/2 | G2?1/2" | 86 | 8.0 | 10 |
| MLNS-G3 | G3" | 95 | 8.0 | 10 |
