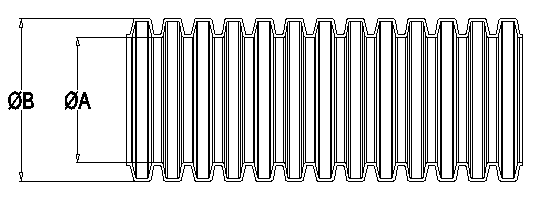

| 黑色 Black Ral9005 | 深灰色 Gray Ral7037 | 淺灰色 light grey Ral7001 | 白色 White Ral9012 | 藍色 Blue Ral5015 | 橙色 Orange Ral2003 | 黃色 Yellow Ra1016 | 規格 Sizes | 內徑 I.D. A | 外徑 O.D. B | 靜態彎曲半徑 Stat.r | 動態彎曲半徑 Dyn.r | 包裝 Packing M |
| BG-07PPB? | BG-07PPG | BG-07PPLG | BG-07PPW? | BG-07PPE? | BG-07PP橙? | BG-07PPY | 1/4"? | 6.5 | 10.0 | 13 | 35 | 100M |
| ?BG-10PPB? | BG-10PPG | BG-10PPLG | BG-10PPW? | BG-10PPE? | BG-10PP橙? | BG-10PPY | 5/16"? | 10.0 | 13.0 | 20 | 45 | 100M |
| ?BG-12PPB? | BG-12PPG | BG-12PPLG | BG-12PPW? | BG-12PPE? | BG-12PP橙? | BG-12PPY | -? | 12.0 | 15.8 | 35 | 55 | 100M |
| ?BG-15PPB? | BG-15PPG | BG-15PPLG | BG-15PPW? | BG-15PPE? | BG-15PP橙? | BG-15PPY | 3/8"? | 14.3 | 18.5 | 40 | 65 | 100M |
| ?BG-17PPB? | BG-17PPG | BG-17PPLG | BG-17PPW? | BG-17PPE? | BG-17PP橙? | BG-17PPY | 1/2"? | 17.0 | 21.2 | 45 | 75 | 100M |
| ?BG-23PPB? | BG-23PPG | BG-23PPLG | BG-23PPW? | BG-23PPE? | BG-23PP橙? | BG-23PPY | 3/4"? | 23.0 | 28.5 | 55 | 100 | 50M |
| ?BG-29PPB? | BG-29PPG | BG-29PPLG | BG-29PPW? | BG-29PPE? | BG-29PP橙? | BG-29PPY | 1"2 | 29.0 | 34.5 | 65 | 120 | 50M |
| ?BG-36PPB? | BG-36PPG | BG-36PPLG | BG-36PPW? | BG-36PPE? | BG-36PP橙? | BG-36PPY | 1 1/4" | 36.0 | 42.5 | 90 | 150 | 50M |
| ?BG-48PPB? | BG-48PPG | BG-48PPLG | BG-48PPW? | BG-48PPE? | BG-48PP橙? | BG-48PPY | 2"4 | 48.0 | 54.5 | 100 | 190 | 25M |
| ?BG-08PPB? | BG-08PPG | BG-08PPLG | BG-08PPW? | BG-08PPE? | BG-08PP橙? | BG-08PPY | 9/32"? | 8.0 | 11.5 | 13 | 35 | 100M |
| ?BG-11PPB? | BG-11PPG | BG-11PPLG | BG-11PPW? | BG-11PPE? | BG-11PP橙? | BG-11PPY | -? | 11.0 | 14.0 | 20 | 45 | 100M |
| ?BG-16PPB? | BG-16PPG | BG-16PPLG | BG-16PPW? | BG-16PPE? | BG-16PP橙? | BG-16PPY | -? | 14.5 | 20.0 | 45 | 75 | 100M |
| ?BG-20PPB? | BG-20PPG | BG-20PPLG | BG-20PPW? | BG-20PPE? | BG-20PP橙? | BG-20PPY | -? | 20.0 | 25.0 | 50 | 85 | 50M |
| ?BG-25PPB? | BG-25PPG | BG-25PPLG | BG-25PPW? | BG-25PPE? | BG-25PP橙? | BG-25PPY | -? | 25.5 | 31.5 | 50 | 110 | 50M |
?
