材質:套管軟質、環保、輻射交聯聚烯烴材料制成。
特性:適合高壓保護用。
溫度:起始收縮溫度70℃，全部收縮溫度125℃；適用溫度-40℃-125℃，可在酸堿條件下長期使用。
顏色:紅色、黃色、綠色，其他顏色如：黑色、藍色等可定做。
用途:用于變電站，高低壓開關柜等母排絕緣保護，防止短路。
交期:10天-2周。
?

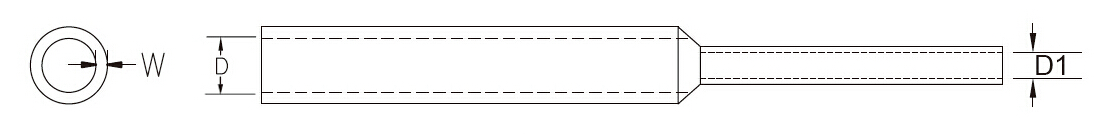

| 型號 | 適用母排 (方排) | 收縮前 | 收縮后 | 包裝 | |
| 內徑(D) | 內徑(D1) | 壁厚(W) | （米/盤） | ||
| 1KVSBI-30/15 | 30 | 31.5 | 15.0? | 0.95? | 50 |
| 1KVSBI-35/18 | 35 | 36.5 | 18.0? | 1.00? | 50 |
| 1KVSBI-40/20 | 40 | 41.5 | 20.0? | 1.00? | 50 |
| 1KVSBI-45/23 | 45 | 46.5 | 23.0? | 1.00? | 25 |
| 1KVSBI-50/25 | 50 | 51 | 25.0? | 1.00? | 25 |
| 1KVSBI-60/30 | 60 | 60 | 30.0? | 1.30? | 25 |
| 1KVSBI-65/33* | 65 | 65 | 33.0? | 1.30? | 25 |
| 1KVSBI-70/35 | 70 | 70 | 35.0? | 1.30? | 25 |
| 1KVSBI-75/38* | 75 | 75 | 38.0? | 1.30? | 25 |
| 1KVSBI-80/40 | 80/100 | 80 | 40.0? | 1.46? | 25 |
| 1KVSBI-85/43* | 80/100 | 85 | 43.0? | 1.46? | 25 |
| 1KVSBI-90/45 | 100 | 90 | 45.0? | 1.46? | 25 |
| 1KVSBI-100/50 | 100/120 | 100 | 50.0? | 1.46? | 25 |
| 1KVSBI-120/60 | 150 | 120 | 60.0? | 1.46? | 25 |
| 1KVSBI-150/75 | 180 | 150 | 75.0? | 1.46? | 25 |
| 1KVSBI-180/90 | MAX | 180 | 90.0? | 1.46? | 25 |
| 1KVSBI-210/105* | MAX | 210 | 105? | 1.46? | 25 |
| 1KVSBI-230/115* | MAX | 230 | 115? | 1.46? | 25 |
| 1KVSBI-250/125* | MAX | 250 | 125? | 1.46? | 25 |
| 1KVSBI-300/150* | MAX | 300 | 150 | 1.46? | 25 |
| 型號 | 適用母排 (方形/圓形) | 收縮前 | 收縮后 | 包裝 | |
| 內徑(D) | 內徑(D1) | 壁厚(W) | （米/盤） | ||
| 10KVSBI-15/8? | 15/12 | 15 | 8.0? | 2.10? | 25 |
| 10KVSBI-20/10? | 20/15? | 20 | 10.0? | 2.10? | 25 |
| 10KVSBI-25/13? | 25/18? | 25 | 12.5? | 2.10? | 25 |
| 10KVSBI-30/15? | 30/20? | 30 | 15.0? | 2.10? | 25 |
| 10KVSBI-40/20? | 40/30? | 40 | 20.0? | 2.30? | 25 |
| 10KVSBI-50/25? | 50/35? | 50 | 25.0? | 2.30? | 25 |
| 10KVSBI-60/30? | 60/45? | 60 | 30.0? | 2.30? | 25 |
| 10KVSBI-65/33*? | 65/45? | 65 | 33.0? | 2.30? | 25 |
| 10KVSBI-70/35? | 70/50? | 70 | 35.0? | 2.30? | 25 |
| 10KVSBI-75/38*? | 75/50? | 75 | 38.0? | 2.30? | 25 |
| 10KVSBI-80/40? | 80/55? | 80 | 40.0? | 2.30? | 25 |
| 10KVSBI-85/43*? | 80/65? | 85 | 43.0? | 2.30? | 25 |
| 10KVSBI-100/50? | 100/75? | 100 | 50.0? | 2.30? | 25 |
| 10KVSBI-120/60? | 120/85? | 120 | 60.0? | 2.30? | 25 |
| 10KVSBI-150/75? | 150/105? | 150 | 75.0? | 2.30? | 25 |
| 10KVSBI-180/90? | 180/120? | 180 | 90.0? | 2.30? | 25 |
| 10KVSBI-210/105*? | 210/140? | 210 | 105 | 2.30? | 20 |
| 10KVSBI-230/115*? | 230/150? | 230 | 115? | 2.30? | 20 |
| 10KVSBI-250/125*? | 250/180? | 250 | 125? | 2.30? | 20 |
| 10KVSBI-300/150*? | 300/210? | 300 | 150? | 2.30? | 15 |
| 型號 | 適用母排 (方形/圓形) | 收縮前 | 收縮后 | 包裝 | |
| 內徑(D) | 內徑(D1) | 壁厚(W) | （米/盤） | ||
| 20KVSBI-15/8? | 15/12 | 15 | 8.0? | 2.50? | 25 |
| 20KVSBI-20/10? | 20/15? | 20 | 10.0? | 2.50? | 25 |
| 20KVSBI-25/13? | 25/18? | 25 | 13.0? | 2.50? | 25 |
| 20KVSBI-30/15? | 30/20? | 30 | 15.0? | 2.50? | 25 |
| 20KVSBI-40/20? | 40/30? | 40 | 20.0? | 2.80? | 25 |
| 20KVSBI-50/25? | 50/35? | 50 | 25.0? | 2.80? | 25 |
| 20KVSBI-60/30? | 60/45? | 60 | 30.0? | 2.80? | 25 |
| 20KVSBI-65/33*? | 65/45? | 65 | 33.0? | 2.80? | 25 |
| 20KVSBI-70/35? | 70/50? | 70 | 35.0? | 2.80? | 25 |
| 20KVSBI-75/38? | 75/50? | 75 | 38.0? | 2.80? | 25 |
| 20KVSBI-80/40? | 80/55? | 80 | 40.0? | 2.80? | 25 |
| 20KVSBI-85/43*? | 80/65? | 85 | 43.0? | 2.80? | 25 |
| 20KVSBI-100/50? | 100/75? | 100 | 50.0? | 2.80? | 25 |
| 20KVSBI-120/60? | 120/85? | 120 | 60.0? | 2.80? | 25 |
| 20KVSBI-150/75? | 150/105? | 150 | 75.0? | 2.80? | 25 |
| 20KVSBI-180/90? | 180/120? | 180 | 90.0? | 2.80? | 25 |
| 20KVSBI-210/105*? | 210/140? | 210 | 105? | 2.80? | 20 |
| 20KVSBI-230/115*? | 230/150? | 230 | 115? | 2.80? | 20 |
| 型號 | 適用母排寬度 (方排) | 收縮前 | 收縮后 | 包裝 | |
| 內徑（D） | 內徑(D1) | 壁厚(W) | （米/盤） | ||
| 35KVSBI-15/8? | 15/12 | 15 | 8.0? | 4.00? | 15 |
| 35KVSBI-20/10? | 20/15? | 20 | 10.0? | 4.00? | 15 |
| 35KVSBI-30/15? | 30 | 30 | 15.0? | 4.00? | 15 |
| 35KVSBI-35/18? | 30/40? | 35 | 18.0? | 4.00? | 15 |
| 35KVSBI-40/20? | 40 | 40 | 20.0? | 4.00? | 15 |
| 35KVSBI-50/25? | 50 | 50 | 25.0? | 4.00? | 15 |
| 35KVSBI-60/30? | 60 | 60 | 30.0? | 4.00? | 15 |
| 35KVSBI-65/33* | 60/70? | 65 | 33.0? | 4.00? | 15 |
| 35KVSBI-70/35? | 70 | 70 | 35.0? | 4.00? | 15 |
| 35KVSBI-75/38* | 70/80? | 75 | 38.0? | 4.00? | 15 |
| 35KVSBI-80/40? | 80/100? | 80 | 40.0? | 4.00? | 15 |
| 35KVSBI-100/50? | 100/120 | 100 | 50.0? | 4.00? | 15 |
| 35KVSBI-120/60? | 150 | 120 | 60.0? | 4.00? | 15 |
| 35KVSBI-150/75? | 180 | 150 | 75.0? | 4.00? | 15 |
| 35KVSBI-180/90* | MAX.? | 180 | 90.0? | 4.00? | 15 |
| 35KVSBI-210/105* | MAX.? | 210 | 105? | 4.00? | 15 |
| 35KVSBI-230/115* | MAX.? | 230 | 115? | 4.00? | 15 |
| 35KVSBI-250/125* | MAX.? | 250 | 125 | 4.00? | 15 |
| 35KVSBI-300/150* | MAX.? | 300 | 150? | 4.00? | 15 |
?
