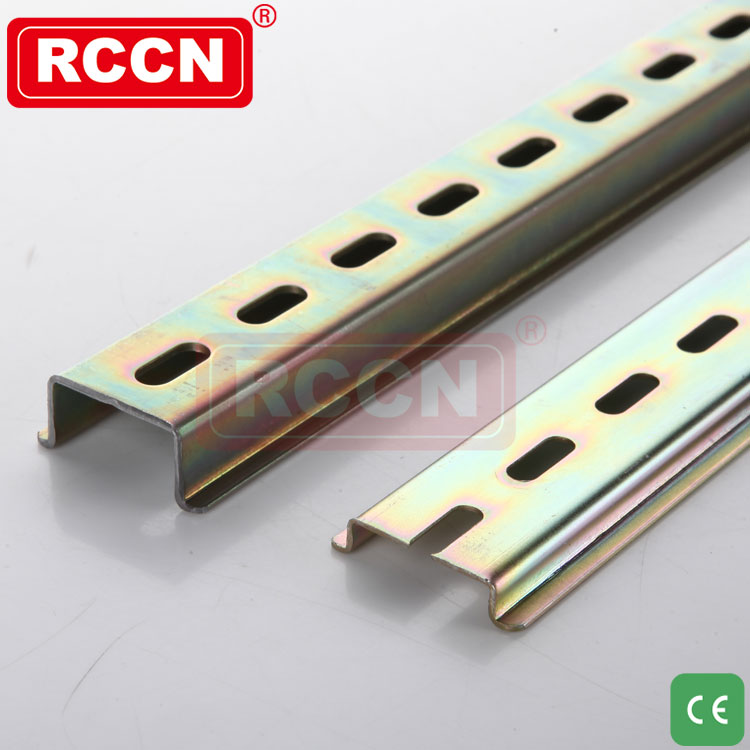

鋼質導軌

TS-35/7.5/1.0 TS-35/15/1.5

介紹:
產品材質:優質高強度冷軋鋼電鍍。產品標準:歐洲EN50022
顏色種類:鍍鎳黃色，鍍白鋅(ROHS環保型)。工作溫度:-40°C持續高溫至100°C
使用方法:固定于面板后即可安裝電器。
產品特性: ?具美觀及抗重壓之功能,尺寸十分精確,耐腐蝕。
定制長度或孔位有起訂量要求,環保型ROHS為鍍白鋅規格。
手動導軌工具型號：TS-1（357.5），TS-2 （3515）
液壓多規格導軌工具型號：TS-5

DIN導軌鋼質導軌 U型導軌導軌

產品規格

系列	型號	品號	單位	數量
鋼質導軌	TS-35/7.5/1.0-515(L=455MM)	2100500200097	m	35
鋼質導軌	TS-35/7.5/1.0-515(L=750MM)	2100500200078	m	391
鋼質導軌	TS-35/7.5/1.0/D*5/L=0.54M	2100500200124	m	8
鋼質導軌	TS-35/7.5/1.0-515(L=100MM)	2100500200050	m	2
鋼質導軌	TS-35/7.5/1.0-515(L=480MM)	2100500200129	m	33
鋼質導軌	TS-35/7.5/1.0-515(L=570MM)	2100500200033	m	7
鋼質導軌	TS-35/7.5/1.0/1M/W-525(K151)	2100500200094	m	55
鋼質導軌	TS-35/7.5/1.0/2M-525(K151)	2100500200122	m	106
鋼質導軌	TS-35/7.5/1.0/2M-N	2100500200015	m	18
鋼質導軌	TS-35/7.5/1.0/1M/W-N	2100500200027	m	300
鋼質導軌	TS-35/15/1.5/2M-615	2100500200065	m	6
鋼質導軌	TS-35/15/1.5/2M-515	2100500200066	m	1798
鋼質導軌	TS-35/7.5/1.0/2M/W-525	2100500200021	m	860
鋼質導軌	TS-35/7.5/1.0/W-615(L=983MM)	2100500200002	m	66
鋼質導軌	TS-35/7.5/1.0/W-615(L=564MM)	2100500200005	m	513
鋼質導軌	TS-35/7.5/1.0/W-615(L=537MM)	2100500200006	m	212
鋼質導軌	TS-35/7.5/1.0/W-615(L=225MM)	2100500200008	m	90
鋼質導軌	TS-35/7.5/1.0/W-615(L=211MM)	2100500200009	m	110
鋼質導軌	TS-35/7.5/1.0/W-615(L=155MM)	2100500200011	m	24
鋼質導軌	TS-35/7.5/1.0/W-615(L=200MM)	2100500200010	m	61
鋼質導軌	TS-35/7.5/1.0/W-615(L=92MM)	2100500200003	m	18
鋼質導軌	TS-35/7.5/1.0/W-615(L=139MM)	2100500200012	m	8
鋼質導軌	TS-35/7.5/1.0/W-615(L=750MM)	2100500200004	m	34
鋼質導軌	TS-35/7.5/1.0/W-615(L=364MM)	2100500200007	m	21
鋼質導軌	TS-35/7.5/1.0/D*4/L=0.15M	2100500200103	m	44
鋼質導軌	TS-35/7.5/1.0/N(L=345MM)	TS-35/7.5/1.0/N(L=345MM)	m	50
鋼質導軌	TS-35/15/1.5/W-615(L=564MM)	TS-35/15/1.5/W-615(L=564MM)	m	410
鋼質導軌	TS-35/15/1.5/W-615(L=983MM)	2100500200082	m	390
鋼質導軌	TS-35/15/1.5/W-615(L=564MM)	TS-35/15/1.5/W-615(L=564MM)	m	410
鋼質導軌	TS-35/15/1.5/-525(L=200MM)(K151)	TS-35/15/1.5/-525(L=200MM)(K151)	m	110

系列	型號	品號	單位	數量
LS型電器安裝鋁導軌	LS-35/7.5/1.5(L=0.49)	LS-35/7.5/1.5(L=0.49)	m	85
LS型電器安裝鋁導軌	LS-35/7.5/1.5(L=0.52)	LS-35/7.5/1.5(L=0.52)	m	49
LS型電器安裝鋁導軌	LS-35/7.5/1.5(L=0.45)	LS-35/7.5/1.5(L=0.45)	m	87
LS型電器安裝鋁導軌	LS-35/7.5/1.5(L=0.47)	LS-35/7.5/1.5(L=0.47)	m	96
LS型電器安裝鋁導軌	LS-35/7.5/1.5(L=0.32)	LS-35/7.5/1.5(L=0.32)	m	119
LSC型電器安裝鋁導軌	LSC-35/7.5/1.1(L=0.56M)	LSC-35/7.5/1.1(L=0.56M)	m	227
LSC型電器安裝鋁導軌	LSC-35/7.5/1.1(L=0.4M)	2100500400019	m	45
LSC型電器安裝鋁導軌	LSC-35/7.5/1.1(L=1.57M)	LSC-35/7.5/1.1(L=1.57M)	m	491

規格參數

型號 Item No. 外寬/外高/厚度/長度-孔寬長	電鍍/材質	配套工具	包裝/箱
din導軌鋼質導軌		TS-1/TS-5
TS-35/7.5系列
TS-35/7.5/1.0/1M-615	彩鋅冷軋鋼		50M
TS-35/7.5/1.0/1M-515	彩鋅冷軋鋼		50M
TS-35/7.5/1.0/1M-525	彩鋅冷軋鋼		50M
TS-35/7.5/1.0/1M/W-615	環保白鋅冷軋鋼		50M
TS-35/7.5/1.0/1M/W-515	環保白鋅冷軋鋼		50M
TS-35/7.5/1.0/1M/W-525	環保白鋅冷軋鋼		50M
TS-35/7.5/1.0/2M-615	彩鋅冷軋鋼		100M
TS-35/7.5/1.0/2M-515	彩鋅冷軋鋼		100M
TS-35/7.5/1.0/2M-525	彩鋅冷軋鋼		100M
TS-35/7.5/1.0/2M/W-615	環保白鋅冷軋鋼		100M
TS-35/7.5/1.0/2M/W-515	環保白鋅冷軋鋼		100M
TS-35/7.5/1.0/2M/W-525	環保白鋅冷軋鋼		100M
TS-35/7.5/1.0/1M-N	彩鋅冷軋鋼-無底孔		50M
TS-35/7.5/1.0/1M/W-N	環保白鋅冷軋鋼-無底孔		50M
TS-35/7.5/1.0/2M-N	彩鋅冷軋鋼-無底孔		100M
TS-35/7.5/1.0/2M/W-N	環保白鋅冷軋鋼-無底孔		100M
TS-35/15系列
TS-35/15/1.5/1M-615	彩鋅冷軋鋼	TS-2/TS-5	30M
TS-35/15/1.5/1M/W-615	環保白鋅冷軋鋼		30M
TS-35/15/1.5/2M-615	彩鋅冷軋鋼		60M
TS-35/15/1.5/2M/W-615	環保白鋅冷軋鋼		60M
TS-35/15/1.5/1M-N	彩鋅冷軋鋼-無底孔		30M
TS-35/15/1.5/1M/W-N	環保白鋅冷軋鋼-無底孔		30M
TS-35/15/1.5/2M-N	彩鋅冷軋鋼-無底孔		60M
TS-35/15/1.5/2M/W-N	環保白鋅冷軋鋼-無底孔		60M
TS-15/5.5系列
TS-15/5.5/1.0/1M-412	彩鋅冷軋鋼		100M
TS-15/5.5/1.0/2M-412	彩鋅冷軋鋼		200M
TS-15/5.5/1.0/1M/W-412	環保白鋅冷軋鋼		100M
TS-15/5.5/1.0/2M/W-412	環保白鋅冷軋鋼		200M
TS-15/5.5/1.0/1M-N	彩鋅冷軋鋼-無底孔		100M
TS-15/5.5/1.0/2M-N	彩鋅冷軋鋼-無底孔		200M
TS-15/5.5/1.0/1M/W-N	環保白鋅冷軋鋼-無底孔		100M
TS-15/5.5/1.0/2M/W-N	環保白鋅冷軋鋼-無底孔		200M
