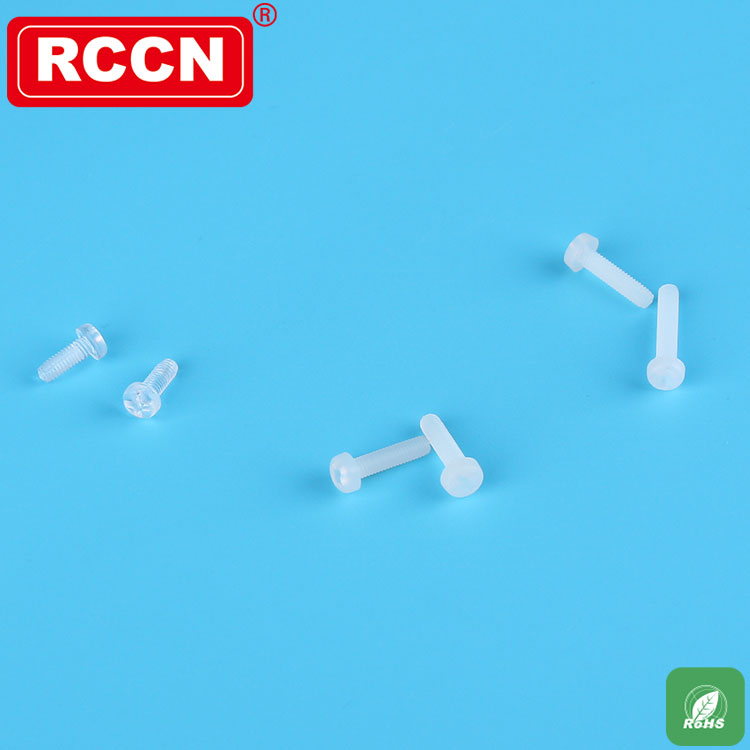

日成螺絲/尼龍螺絲 PF

材質:PC(透明),尼龍NYLON66(本色),PP(白色), 防火等級94V-2，不易老化，絕緣度高
用途:PC板,機板及其它產品固定用.
特點:質量輕,絕緣,抗干擾,不生銹,耐酸堿, 耐候性強型號.尼龍耐扭比PC強, PP 耐酸堿性強,PC透明美觀。
備注:PF-306PC材質為PC,透明色。PF-520N材質為PA66,本色。PF-620PP材質為PP,乳白色。M2-M5默認為圓頭十字頭。M6以上默認六角頭。

螺絲尼龍螺絲

產品規格

型號Item No.		螺牙 Thread	A mm	B mm	C mm	包裝 Packing
NYLON	PC	螺牙 Thread	A mm	B mm	C mm	包裝 Packing
PF-208N	-	M2*0.45	8	2.0	8.0	每包 1000PCS
PF-210N	-	M2*0.45	10	2.0	10
PF-306N	PF-306PC	M3*0.5	6	2.5	6.0
PF-308N	PF-308PC	M3*0.5	8	2.5	6.0
PF-310N	PF-310PC	M3*0.5	10	2.5	6.0
PF-312N	PF-312PC	M3*0.5	12	2.5	6.0
PF-316N	-	M3*0.5	16	2.5	6.0
PF-320N	-	M3*0.5	20	2.5	6.0
PF-325N	-	M3*0.5	25	2.5	6.0
PF-408N	PF-408PC	M4*0.7	8	2.6	7.5
PF-410N	PF-410PC	M4*0.7	10	2.6	7.5
PF-412N	PF-412PC	M4*0.7	12	2.6	7.5
PF-414N	-	M4*0.7	14	2.6	7.5
PF-420N	PF-420PC	M4*0.7	20	2.6	7.5
PF-425N	PF-425PC	M4*0.7	25	2.6	7.5
PF-506N	PF-506PC	M5*0.8	6	3.5	9.0	每包 100PCS
PF-510N	PF-510PC	M5*0.8	10	3.5	9.0
PF-520N	PF-520PC	M5*0.8	20	3.5	9.0
PF-525N	-	M5*0.8	25	3.5	9.0
PF-530N	PF-530PC	M5*0.8	30	3.5	9.0
PF-610N	PF-610PC	M6*1.0	10	4.0	10
PF-620N	PF-620PC	M6*1.0	20	4.0	10
PF-625N	PF-625PC	M6*1.0	25	4.0	10
PF-630N	PF-630PC	M6*1.0	30	4.0	10
PF-640N	PF-640PC	M6*1.0	40	4.0	10
PF-645N	PF-645PC	M6*1.0	45	4.0	10

型號Item No.		螺牙 Thread	A mm	B mm	C mm	包裝 Packing
NYLON	PP	螺牙 Thread	A mm	B mm	C mm	包裝 Packing
PF-810N	PF-810PP	M8*1.25	10	14	10	每包 100PCS
PF-820N	PF-820PP	M8*1.25	20	14	10
PF-825N	PF-825PP	M8*1.25	25	14	10
PF-830N	PF-830PP	M8*1.25	30	14	10
PF-840N	PF-840PP	M8*1.25	40	14	10
PF-850N	PF-850PP	M8*1.25	50	14	10
PF-8100N	PF-8100PP	M8*1.25	100	14	10
PF-1010N	PF-1010PP	M10*1.5	10	8	19
PF-1020N	PF-1020PP	M10*1.5	20	8	19
PF-1030N	PF-1030PP	M10*1.5	30	8	19
PF-1040N	PF-1040PP	M10*1.5	40	8	19
PF-1050N	PF-1050PP	M10*1.5	50	8	19
PF-1240N	PF-1240PP	M12*1.75	40	8	21
PF-1250N	PF-1250PP	M12*1.75	50	8	21
PF-1640N	PF-1640PP	M16*2.0	40	10	27
PF-1650N	PF-1650PP	M16*2.0	50	10	27
PF-1660N	PF-1660PP	M16*2.0	60	10	27
PF-1670N	PF-1670PP	M16*2.0	70	10	27
PF-1685N	PF-1685PP	M16*2.0	85	10	27
PF-2040N	PF-2040PP	M20*2.0	40	12	33	每包 10PCS
PF-2060N	PF-2060PP	M20*2.0	60	12	33
PF-2080N	PF-2080PP	M20*2.0	80	12	33
PF-20100N	PF-20100PP	M20*2.0	100	12	33
PF-20130N	PF-20130PP	M20*2.0	130	12	33
