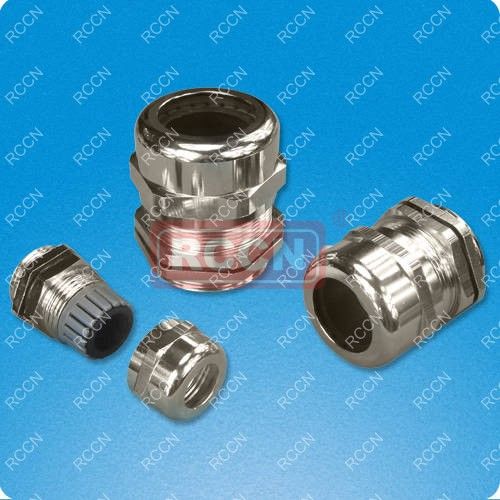

| 螺牙規格:公制螺牙(Metric),德制螺牙(DIN PG) 產品材質:A.C.F部位均采用黃銅鍍鎳制成.D采用PA制成.B.E采用耐老化硅橡膠制成。 產品認證:歐洲CE,防爆EX認證。 工作溫度:靜態-50°C至150°C 防護等級:在規定的卡口范圍內,并使用防水O形圈及夾緊圈旋緊迫緊頭,達到IP68。 產品特性:特殊夾緊爪與夾緊圈凹凸相扣之設計,配合迫緊頭裝配省時便利,夾緊電纜范圍大,抗拉力特強, 可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及一般溶 劑。應用于電纜出線端的固定保護及密封防塵水。 說 明:本系列特適合要求較高環境使用，金屬件和橡膠均加厚型設計,高強度。 目錄頁碼:A27 |

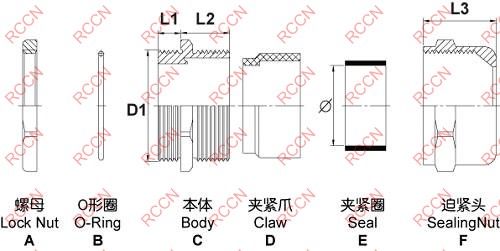

螺 牙 標 準 | 型號 Item No | 螺牙規格 Thread | 適應電 纜外徑 CableRange Φ | 螺紋外徑 Thread O.D. D1 | 機板口徑 Panel Mounting Hole | 螺紋長度 Thread Length L1 | 接合長度 Joint Length L2+L3 | 板手 Spanner size A&F | 包裝 Std.Pkg Pcs |
標 準 螺 紋 | A-M12*1.5 | M12*1.5 | 3-6.5 | 12 | 12-12.3 | 6 | 19 | 16 | 100PCS |
| A-M16*1.5 | M16*1.5 | 4-8 | 16 | 16-16.3 | 7 | 20 | 18 | ||
| A-M18*1.5 | M18*1.5 | 5-10 | 18 | 18-18.3 | 7 | 22 | 20 | ||
| A-M20*1.5 | M20*1.5 | 6-12 | 20 | 20-20.3 | 8 | 23 | 22 | ||
| A-M25*1.5 | M25*1.5 | 10-14 | 25 | 25-25.4 | 8 | 23 | 27 | ||
| A-M32*1.5 | M32*1.5 | 13-18 | 32 | 32-32.4 | 9 | 32 | 34 | 10PCS | |
| A-M40*1.5 | M40*1.5 | 18-25 | 40 | 40-40.4 | 9 | 32 | 45 | ||
| A-M50*1.5 | M50*1.5 | 22-32 | 50 | 50-50.4 | 9 | 38 | 56 | ||
| A-M63*1.5 | M63*1.5 | 34-44 | 63 | 63-63.4 | 14 | 38 | 70 | ||
加 長 螺 紋 | A-M12*1.5L | M12*1.5 | 3-6.5 | 12 | 12-12.3 | 12 | 19 | 16 | 100PCS |
| A-M16*1.5L | M16*1.5 | 4-8 | 16 | 16-16.3 | 12 | 20 | 18 | ||
| A-M18*1.5L | M18*1.5 | 5-10 | 18 | 18-18.3 | 12 | 22 | 20 | ||
| A-M20*1.5L | M20*1.5 | 6-12 | 20 | 20-20.3 | 12 | 23 | 22 | ||
| A-M25*1.5L | M25*1.5 | 10-14 | 25 | 25-25.4 | 12 | 23 | 27 | ||
| A-M32*1.5L | M32*1.5 | 13-18 | 32 | 32-32.4 | 15 | 32 | 34 | 10PCS | |
| A-M40*1.5L | M40*1.5 | 18-25 | 40 | 40-40.4 | 15 | 32 | 45 | ||
| A-M50*1.5L | M50*1.5 | 22-32 | 50 | 50-50.4 | 15 | 38 | 56 | ||
| A-M63*1.5L | M63*1.5 | 34-44 | 63 | 63-63.4 | 18 | 38 | 70 |
型號 Item No | 螺牙規格 Thread | 適應電 纜外徑 CableRange Φ | 螺紋外徑 Thread O.D. D1 | 機板開孔 Panel Mounting Hole | 螺紋長度 Thread Length L1 | 接合長度 Joint Length L2+L3 | 板手 Spanner size A&F | 包裝 Std.Pkg Pcs |
| A-PG-7 | PG-7 | 3-6.5 | 12.5 | 12.5-12.8 | 6 | 19 | 16 | 100PCS |
| A-PG-9 | PG-9 | 4-8 | 15.2 | 15.2-15.8 | 7 | 20 | 18 | |
| A-PG-11 | PG-11 | 5-10 | 18.6 | 18.6-18.9 | 7 | 22 | 20 | |
| A-PG-13.5 | PG-13.5 | 6-12 | 20.4 | 20.4-20.7 | 8 | 23 | 22 | |
| A-PG-16 | PG-16 | 10-14 | 22.5 | 22.5-22.8 | 8 | 23 | 24 | |
| A-PG-21 | PG-21 | 13-18 | 28.3 | 28.3-28.7 | 9 | 28 | 30 | 20PCS |
| A-PG-29 | PG-29 | 18-25 | 37.0 | 37.0-37.4 | 9 | 32 | 42 | |
| A-PG-36 | PG-36 | 22-32 | 47.0 | 47.0-47.4 | 10 | 38 | 52 | 10PCS |
| A-PG-42 | PG-42 | 30-38 | 54.0 | 54.0-54.4 | 12 | 38 | 60 | |
| A-PG-48 | PG-48 | 34-44 | 59.3 | 59.3-59.7 | 14 | 38 | 64 | |
| 加長型： | ||||||||
| A-PG-7L | PG-7 | 3-6.5 | 12.5 | 12.5-12.8 | 10 | 19 | 16 | 100PCS |
| A-PG-9L | PG-9 | 4-8 | 15.2 | 15.2-15.8 | 10 | 20 | 18 | |
| A-PG-11L | PG-11 | 5-10 | 18.6 | 18.6-18.9 | 10 | 22 | 20 | |
| A-PG-13.5L | PG-13.5 | 6-12 | 20.4 | 20.4-20.7 | 10 | 23 | 22 | |
| A-PG-16L | PG-16 | 10-14 | 22.5 | 22.5-22.8 | 10 | 23 | 24 | |
| A-PG-21L | PG-21 | 13-18 | 28.3 | 28.3-28.7 | 12 | 28 | 30 | 20PCS |
| A-PG-29L | PG-29 | 18-25 | 37.0 | 37.0-37.4 | 12 | 32 | 42 | |
| A-PG-36L | PG-36 | 22-32 | 47.0 | 47.0-47.4 | 14 | 38 | 52 | 10PCS |
| A-PG-42L | PG-42 | 30-38 | 54.0 | 54.0-54.4 | 16 | 38 | 60 | |
| A-PG-48L | PG-48 | 34-44 | 59.3 | 59.3-59.7 | 18 | 38 | 64 | |
